How to Install Munin Monitoring Tool on Ubuntu 22.04

Munin is a powerful networked resource monitoring tool that can help you keep an eye on various metrics of your servers. It uses a master-node architecture, where the master collects and visualizes data from nodes. This guide will walk you through the process of installing Munin on Ubuntu 22.04.

Step 1: Initiating Instance Creation

Creating a New Instance
- To create a new instance, click on the blue “Create” button located in the top-right corner of the page.
- Select “Add New Instance” to begin setting up a new virtual machine.

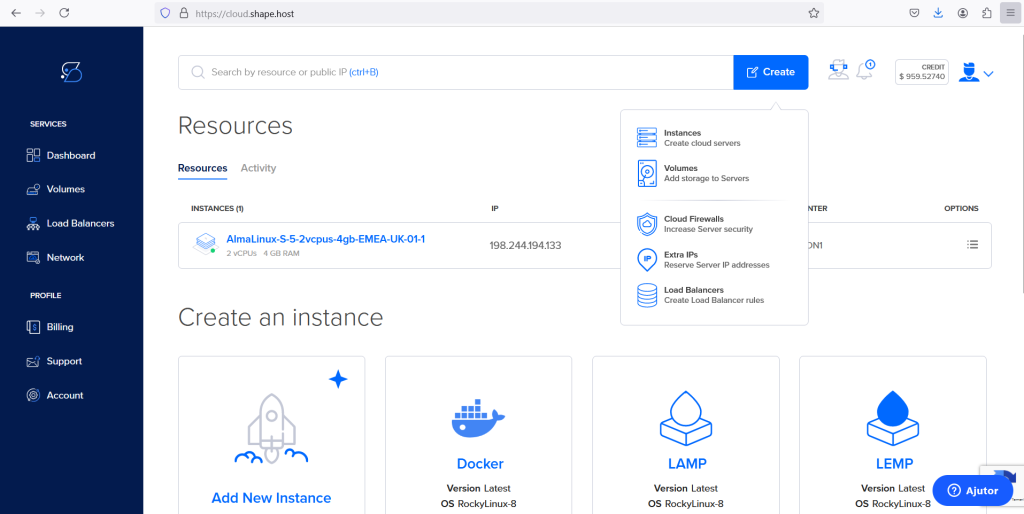

Shape.host Resources dashboard showing the Create menu and available instance templates.

Step 2: Choosing a Location

Select a Data Center
- On the “Create New Instance” page, choose your preferred data center location. For example, you might select “Amsterdam, Netherlands”.

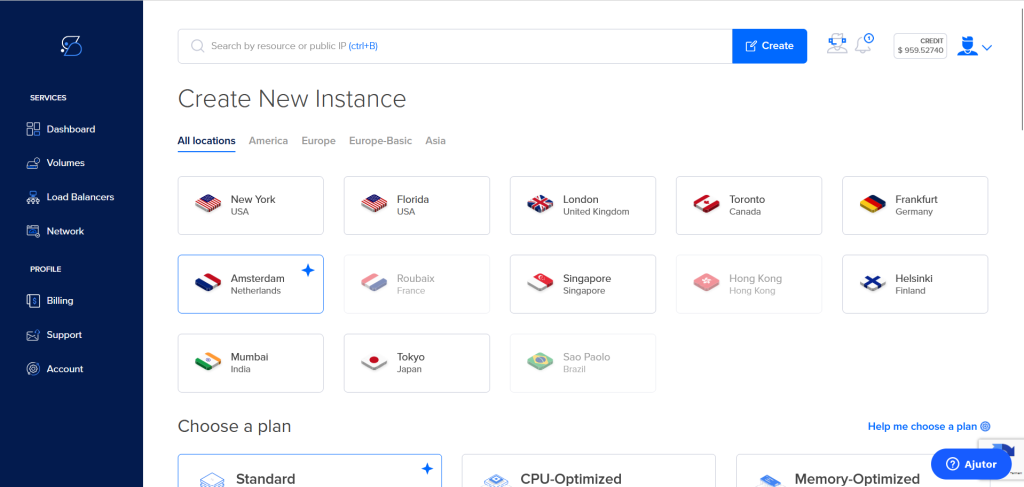

Shape.host instance form with Amsterdam selected as the data center location.

Step 3: Selecting a Plan

Choose a Plan
- Pick a plan that meets your requirements. Options vary in specifications and price, from $3.5 to $22 per month, offering different CPU, memory, storage, and bandwidth.
Choose an Operating System
- Scroll to the “Choose an image” section and select Ubuntu 22.04 from the list of available distributions.

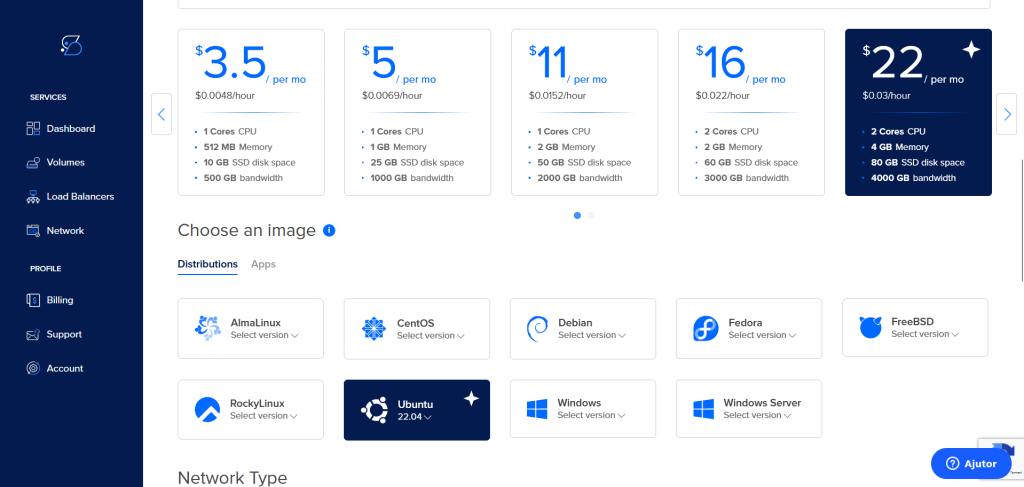

Shape.host instance form with the $22 monthly plan and Ubuntu image selected.

Step 4: Authentication Method

Select an Authentication Method
- Choose between SSH keys (recommended for better security) or a password for root access. In this guide, we’ll proceed with the password option.
Complete Instance Creation
- Click the “Create Instance” button at the bottom of the page to finalize the setup.

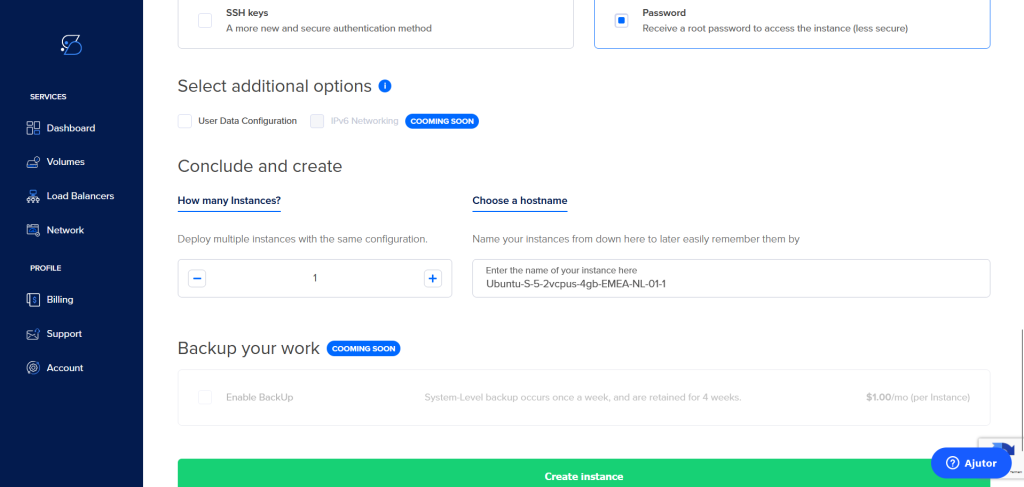

Shape.host instance form showing authentication, hostname and instance creation options.

Step 5: Connecting to Your Instance

Retrieve SSH Credentials
- Note the IP address of your newly created instance from the Shape.host dashboard.
Connect via SSH
Open a terminal on your local machine and use the following command to connect to your instance:

ssh root@your_instance_ip

Replace your_instance_ip with the actual IP address of your instance.
A server running Ubuntu 22.04
Root access to the server
Basic knowledge of terminal commands

Step 6: Update Your System

First, ensure that your system packages are up to date.

apt update && apt upgrade -y

Terminal showing APT package management commands and output.

Step 7: Install Apache Web Server

Munin uses a web server to display its monitoring data. We will use Apache for this purpose.

apt install apache2 -y

Enable and start the Apache service:

systemctl enable apache2
systemctl start apache2

Terminal showing systemd service management commands or output.

Step 8: Install Munin and Munin Node

Install Munin and Munin Node using the package manager:

apt install munin munin-node -y

Step 9: Configure Munin

Edit Munin Configuration File: Open the Munin configuration file to specify the locations where Munin will output its HTML files and other data:

   nano /etc/munin/munin.conf

Terminal showing nano commands or output during Configure Munin.

Look for the following lines and ensure they are configured as shown:

   dbdir /var/lib/munin
   htmldir /var/cache/munin/www
   logdir /var/log/munin
   rundir /var/run/munin
   tmpldir /etc/munin/templates

Uncomment and set the hostname and contact address:

   [localhost]
       address 127.0.0.1
       use_node_name yes

Configure Apache for Munin: Munin comes with a predefined configuration file for Apache. Enable this configuration:

   ln -s /etc/munin/apache24.conf /etc/apache2/conf-available/munin.conf

Terminal showing Munin Apache configuration commands.

Enable the configuration and the CGI module required by Munin:

   a2enconf munin
   a2enmod cgi
   systemctl restart apache2

Step 10: Configure Munin Node

Edit Munin Node Configuration: Open the Munin node configuration file:

   nano /etc/munin/munin-node.conf

Terminal showing the command to edit the Munin node configuration.

Ensure the following lines are configured correctly to allow connections from the Munin master (if monitoring a remote node):

   allow ^127\.0\.0\.1$
   allow ^::1$

Restart the Munin node service to apply the changes:

   systemctl restart munin-node

Step 11: Verify Installation and Access Munin

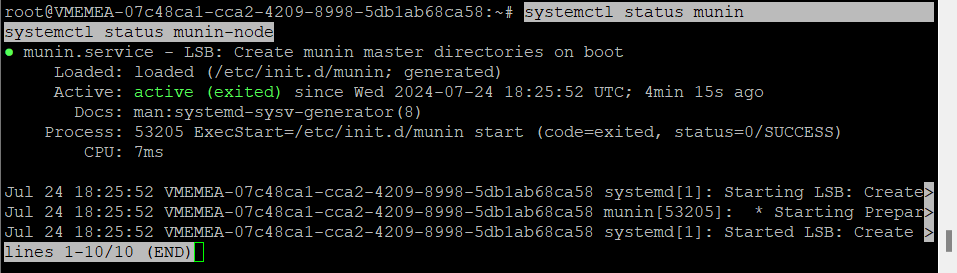

Munin should now be installed and configured. Verify the installation by checking the Munin status:

systemctl status munin
systemctl status munin-node

Fixing “Forbidden” Error

If you encounter a “Forbidden” error when accessing Munin, follow these steps to correct the configuration:

Check Apache Configuration for Munin: Open the Munin Apache configuration file:

   nano /etc/apache2/conf-available/munin.conf

Terminal showing nano commands or output during Fixing Forbidden Error.

Ensure the following configuration exists and is correct:

   Alias /munin /var/cache/munin/www
   <Directory /var/cache/munin/www>
       Order allow,deny
       Allow from all
       Options None
       Require all granted
   </Directory>

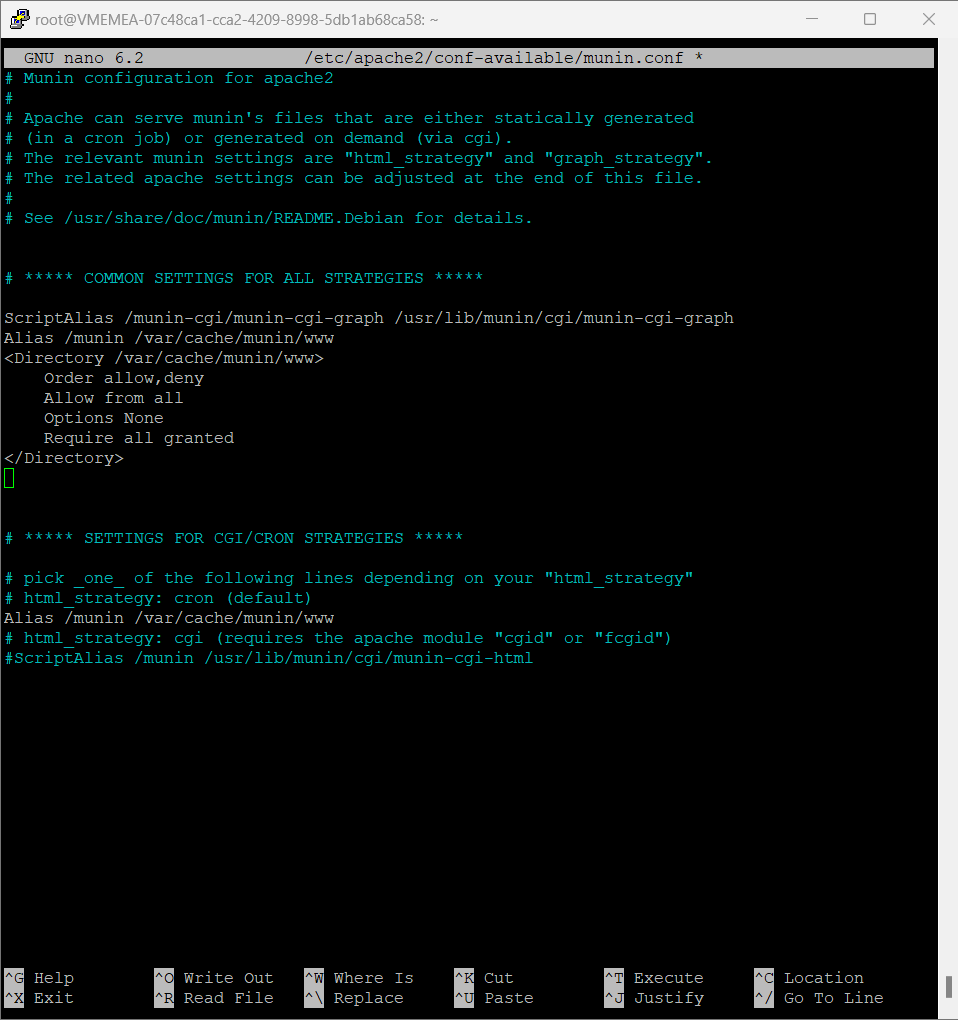

Terminal showing the GNU nano editor and configuration text.

Save and exit the file. Enable the configuration and restart Apache:

   a2enconf munin
   systemctl restart apache2

Check Directory Permissions: Ensure that the Munin web directory has the correct permissions:

   chown -R munin:munin /var/cache/munin/www
   chmod -R 755 /var/cache/munin/www

Terminal showing file ownership or permission commands.

Restart Munin and Apache Services: Restart the Munin and Apache services to apply the changes:

   systemctl restart munin
   systemctl restart apache2

Verify Apache Modules: Ensure that the necessary Apache modules are enabled:

   a2enmod cgi
   a2enmod alias
   systemctl restart apache2

To access the Munin web interface, open your web browser and navigate to:

http://your_server_ip/munin

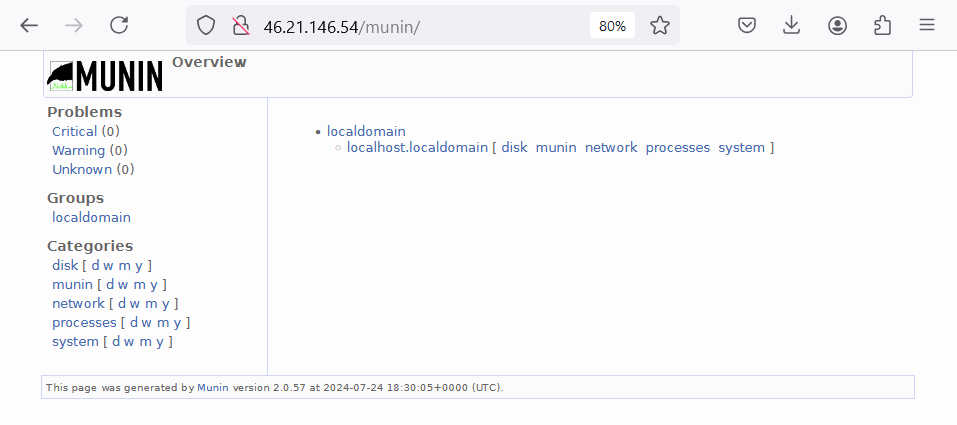

Munin overview page with monitoring categories and host links.

You should see the Munin interface displaying various system metrics.

Step 12: Adding Nodes to Munin Master

If you have additional nodes you want to monitor, install munin-node on each of those nodes and configure the Munin master to collect data from them.

On the Node: Install Munin node:

   apt install munin-node -y

Configure Munin node to allow connections from the Munin master:

   nano /etc/munin/munin-node.conf

Add the Munin master’s IP address:

   allow ^<Munin_master_IP>$

Restart Munin node:

   systemctl restart munin-node

On the Master: Edit the Munin configuration file to add the new node:

   nano /etc/munin/munin.conf

Add the following configuration, replacing <node_name> and <node_IP> with appropriate values:

   [<node_name>]
       address <node_IP>
       use_node_name yes

Restart Munin on the master:

   systemctl restart munin

Step 13: Customize Munin Plugins

Munin uses plugins to collect various metrics. You can enable additional plugins as needed.

List Available Plugins:

   ls -l /usr/share/munin/plugins/

Enable a Plugin: To enable a plugin, create a symbolic link to it in the /etc/munin/plugins/ directory:

   ln -s /usr/share/munin/plugins/<plugin_name> /etc/munin/plugins/

Restart Munin Node: After enabling new plugins, restart the Munin node to apply changes:

   systemctl restart munin-node
