What Is Apache Tomcat?

Apache Tomcat is a lightweight, open-source web server and servlet container developed by the Apache Software Foundation. It supports Jakarta EE specifications such as:

  • Jakarta Servlets
  • Jakarta Server Pages (JSP)
  • Jakarta WebSocket

Version 11.0.7 brings full compatibility with Jakarta EE 11, reflecting the namespace migration from javax.* to jakarta.*.

Why Use Tomcat with Nginx?

Running Tomcat behind Nginx provides:

  • Reverse proxying for clean and flexible request routing
  • TLS/SSL termination using Let’s Encrypt and Certbot
  • Improved performance for static content (CSS, JS, images)
  • Protection against direct Tomcat exposure to the public internet

Why Rocky Linux 9?

Rocky Linux 9 is an Enterprise Linux distribution, fully compatible with RHEL 9, making it a stable and secure choice for production environments. It features:

  • SELinux enforcing mode (secure by default)
  • Modern kernel and security patches
  • Compatibility with enterprise-grade services

System Architecture Overview

[User Browser] --> HTTPS (port 443)
      ↓
[Nginx Reverse Proxy + SSL]
      ↓
[Apache Tomcat 11.0.7 on port 8080]
      ↓
[Java Web Application]

Key Components

ComponentRole
Tomcat 11Serves dynamic Java applications via servlet engine
NginxReverse proxy and TLS termination
CertbotIssues and auto-renews SSL certificates
Rocky 9Stable OS with SELinux, firewalld, and systemd

Features of Tomcat 11.0.7

  • Full Jakarta EE 11 support
  • Native HTTP/2 and WebSocket support
  • Improved startup time and memory management
  • Better TLS and OpenSSL integration when combined with a reverse proxy

Security Recommendations

  • Run Tomcat under a dedicated non-root system user
  • Bind Tomcat to 127.0.0.1:8080 so it isn’t directly exposed
  • Use SELinux in enforcing mode with correct policies
  • Restrict server.xml to minimal connectors and secure headers
  • Use Certbot for TLS with automatic renewal
  • Enable firewalld to only expose ports 80 and 443

Common Use Cases

  • Hosting Spring Boot or Jakarta EE-based web apps
  • Running admin panels or dashboards in Java
  • Deploying APIs behind HTTPS reverse proxy
  • Serving enterprise SaaS with role-based access

SSL & Nginx Benefits

FeatureBenefit
TLS 1.3 via NginxModern and secure encryption
Let’s Encrypt + CertbotFree and automated certificate management
gzip & Brotli compressionFaster client load times for static files
Custom Nginx headersHSTS, X-Frame-Options, Referrer-Policy hardening
Reverse proxy rulesFlexible routing and cache behavior

Logging Locations

  • Tomcat logs: /opt/tomcat/latest/logs/
  • Nginx logs: /var/log/nginx/
  • SSL renewal logs: /var/log/letsencrypt/

Deploying Apache Tomcat 11.0.7 with Nginx and SSL on Rocky Linux 9 provides a modern, secure, and scalable environment for Java web applications. The architecture offers separation of concerns, better performance, and out-of-the-box SSL integration using open tools like Certbot.

It’s an ideal setup for production web APIs, Java dashboards, enterprise intranet apps, and backend microservices with frontend integration.

Step 1: Create a Shape.Host Instance

Go to https://shape.host and log in.

Click “Create”.

Choose “Instance”.

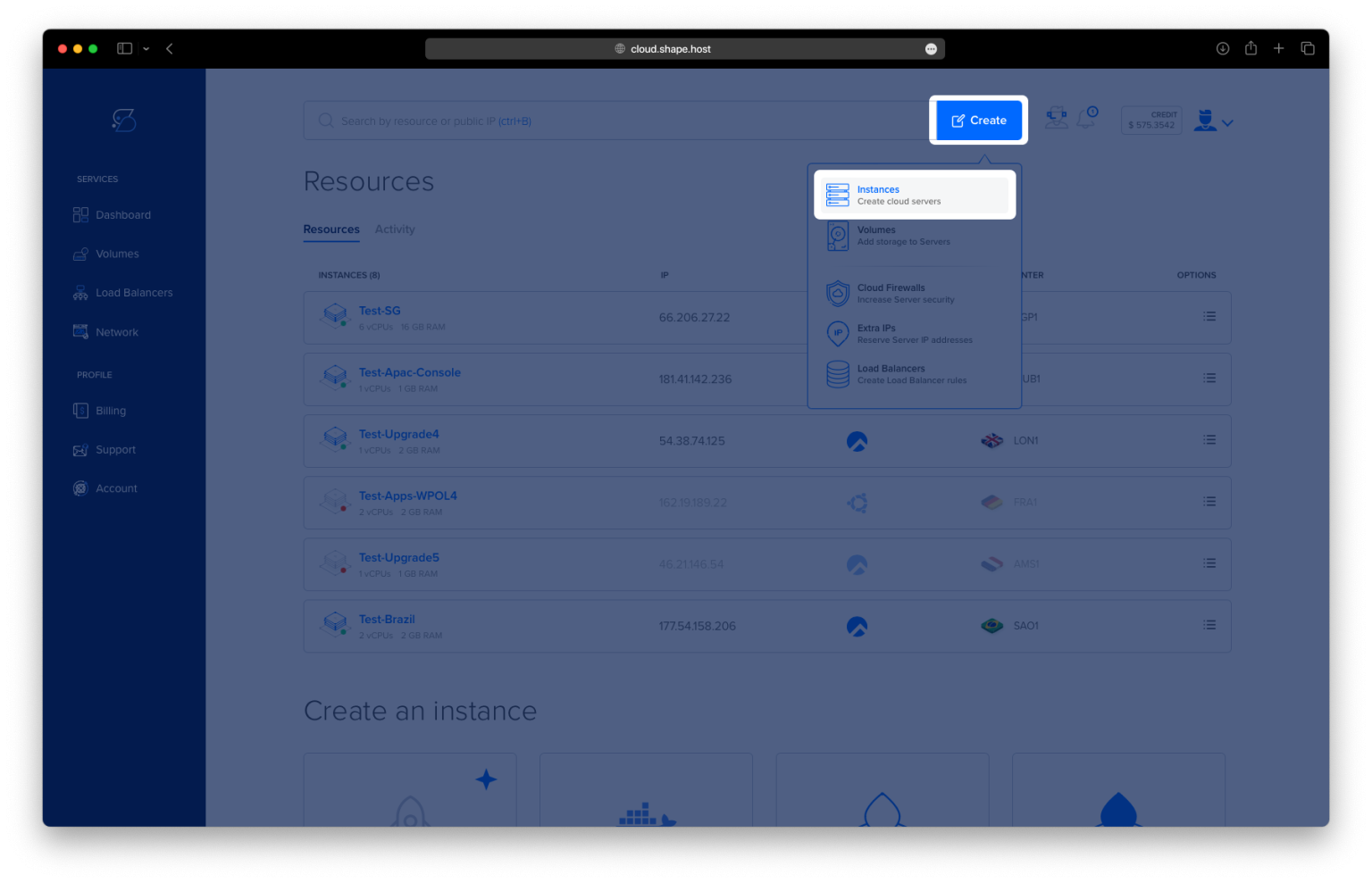

Shape.host Resources dashboard with Create > Instance highlighted.

Select your desired server location.

Shape.host instance form with the data center location selector highlighted.

Choose Rocky Linux 9 (64-bit) as the operating system.

Pick a plan with at least 2 CPUs, 4 GB RAM, and 20 GB SSD.

Shape.host instance form with the operating system image selector highlighted.

Click Create Instance.

Shape.host instance form with the Create Instance button highlighted.

Find your instance’s IP address under the “Resources” section.

Shape.host Resources dashboard with the server IP address highlighted.

Connect via SSH:

ssh root@your-server-ip

On Windows, use PuTTY.

Step 2: Update the System

dnf update -y

This updates all system packages to their latest versions.

Terminal showing DNF/YUM package management commands and output.

Step 3: Install Java 17

dnf install java-17-openjdk -y

Apache Tomcat requires Java. This installs OpenJDK 17.

Terminal showing DNF/YUM package management commands and output.
java -version

Check that Java is installed correctly.

Terminal showing java commands or output during Install Java 17.

Step 4: Create Tomcat User and Download Tomcat

useradd -r -m -U -d /opt/tomcat -s /bin/false tomcat

Creates a system user named tomcat with no login shell.

cd /tmp
wget https://dlcdn.apache.org/tomcat/tomcat-11/v11.0.7/bin/apache-tomcat-11.0.7.tar.gz
tar -xzf apache-tomcat-11.0.7.tar.gz
mv apache-tomcat-11.0.7 /opt/tomcat/latest
chown -R tomcat: /opt/tomcat

Downloads Tomcat, extracts it, moves it to the final directory, and sets proper permissions.

Terminal showing Linux user account management commands.
Terminal showing file ownership or permission commands.

Step 5: Create Tomcat Systemd Service

nano /etc/systemd/system/tomcat.service

Paste this configuration:

[Unit]
Description=Apache Tomcat 11
After=network.target

[Service]
Type=forking
User=tomcat
Group=tomcat

Environment=JAVA_HOME=/usr/lib/jvm/java-17-openjdk-17.0.15.0.6-2.el9.x86_64
Environment=CATALINA_PID=/opt/tomcat/latest/temp/tomcat.pid
Environment=CATALINA_HOME=/opt/tomcat/latest
Environment=CATALINA_BASE=/opt/tomcat/latest

ExecStart=/opt/tomcat/latest/bin/startup.sh
ExecStop=/opt/tomcat/latest/bin/shutdown.sh

Restart=on-failure

[Install]
WantedBy=multi-user.target
Terminal showing a systemd service unit configuration.

Step 6: Start and Enable Tomcat

systemctl daemon-reload
systemctl enable --now tomcat

This reloads systemd and enables Tomcat to start on boot.

Terminal showing systemd service management commands or output.

Step 7: Configure Firewall

dnf install firewalld -y
systemctl unmask firewalld
systemctl enable --now firewalld
firewall-cmd --permanent --add-service=http
firewall-cmd --permanent --add-service=https
firewall-cmd --permanent --add-port=8080/tcp
firewall-cmd --reload

Installs and configures the firewall to allow HTTP, HTTPS, and Tomcat’s port 8080.

Terminal showing systemd service management commands or output.
Terminal showing firewall configuration commands and rules.

Step 8: Install and Configure Nginx

dnf install nginx -y
systemctl enable --now nginx
nano /etc/nginx/conf.d/tomcat.conf
Terminal showing DNF/YUM package management commands and output.

Paste this configuration:

server {
    listen 80;
    server_name your-domain.com;

    location / {
        proxy_pass http://127.0.0.1:8080/;
        proxy_http_version 1.1;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto $scheme;
    }
}
Terminal showing web server configuration text.

Then reload Nginx:

nginx -t && systemctl reload nginx
Terminal showing systemd service management commands or output.

Step 9: Install Certbot and Enable SSL

dnf install epel-release -y
dnf install certbot python3-certbot-nginx -y
certbot --nginx -d your-domain.com

This enables HTTPS using Let’s Encrypt SSL certificate.

Terminal showing DNF/YUM package management commands and output.
Terminal showing DNF/YUM package management commands and output.
Terminal showing Certbot certificate commands and messages.

Step 10: Access Tomcat in Your Browser

Open your browser and go to:

https://your-domain.com

You should see the Tomcat welcome page if everything is set up correctly.

Apache Tomcat default welcome page with management links.
