Install MeshCentral on AlmaLinux 9

MeshCentral on AlmaLinux 9

(Self-Hosted Remote Management + Node.js + Nginx + SSL)

MeshCentral is a powerful, open-source remote management and remote access platform that allows administrators to securely control, monitor, and manage computers and servers through a web browser. It supports remote desktop, terminal access, file transfer, device grouping, user and role management, and optional out-of-band management, all without relying on third-party cloud services.

Unlike proprietary tools such as TeamViewer or AnyDesk, MeshCentral can be fully self-hosted, giving you complete ownership of devices, credentials, and connection data. This makes it an excellent choice for system administrators, MSPs, DevOps teams, and privacy-focused organizations.

Running MeshCentral on AlmaLinux 9, a RHEL-compatible, enterprise-grade Linux distribution, provides long-term stability, predictable updates, and strong security defaults. AlmaLinux 9, combined with Node.js LTS, Nginx, and HTTPS (SSL), offers a production-ready foundation for a secure and scalable remote management server.

Architecture Overview

Layer	Component	Role
OS	AlmaLinux 9	Enterprise-grade, RHEL-compatible Linux base
Runtime	Node.js LTS (18 / 20)	Runs the MeshCentral server
Application	MeshCentral	Web UI, device management, relay services
Database	Built-in (NeDB / SQLite)	Stores users, devices, and settings
Reverse Proxy	Nginx (recommended)	HTTPS termination and routing
TLS	Let’s Encrypt / PKI	Encrypted secure connections
Clients	Browsers + Mesh Agents	Remote access and device control

MeshCentral uses a single-service, lightweight architecture, which makes it easy to deploy, maintain, and scale.

Why Use MeshCentral?

Fully self-hosted — no vendor lock-in
Remote desktop & terminal — browser-based access
Agent-based management — Windows, Linux, macOS
Granular permissions — users, groups, roles
WebSocket-based connections — fast and efficient
File transfer & power controls
Multi-tenant capable — suitable for MSPs
Open-source & actively maintained
Very low resource usage

MeshCentral is designed for secure, scalable remote administration with full infrastructure control.

MeshCentral vs Other Remote Management Tools

Feature / Capability	MeshCentral	TeamViewer	AnyDesk	Apache Guacamole
Hosting	Self-hosted	Cloud only	Cloud only	Self-hosted
Open-source	✅ Yes	❌ No	❌ No	✅ Yes
Data ownership	Full control	Vendor-controlled	Vendor-controlled	Full control
Agent-based	✅ Yes	✅ Yes	✅ Yes	❌ No
Web UI	✅ Yes	❌ No	❌ No	✅ Yes
Cost	Free	Paid	Paid	Free

MeshCentral stands out for privacy, transparency, and flexibility.

Security & Best Practices on AlmaLinux 9

Always run MeshCentral over HTTPS.
Use Let’s Encrypt SSL certificates with automatic renewal.
Bind MeshCentral to 127.0.0.1 and expose it via Nginx.
Store secrets only in configuration files or environment variables.
Disable public account creation if not required.
Enforce strong passwords and role-based access.
Enable SELinux (enforcing mode) and label Docker/Node paths correctly.
Configure firewalld and allow only ports 80 / 443.
Keep AlmaLinux, Node.js, and MeshCentral updated.
Regularly back up:
- MeshCentral data directory
- Configuration files
Monitor logs for authentication and device activity.

Typical Use Cases

Remote server administration
IT support and helpdesk operations
MSPs managing multiple clients
Home labs and self-hosted environments
Device inventory and monitoring
Secure alternative to TeamViewer or AnyDesk
Enterprise or compliance-sensitive environments

Deploying MeshCentral on AlmaLinux 9 gives you a secure, scalable, and fully self-hosted remote management solution — combining modern Node.js performance with enterprise-grade Linux stability, strong encryption, and full control over your infrastructure.

Step 1: Create a Server Instance on Shape.Host

Before installing MeshCentral, you need a VPS with a public IP address.

Click Create → Instance

Choose a data center close to your users

Shape.host instance form with the data center location selector highlighted.

Select a plan with at least:

2 CPU cores

4 GB RAM

30–40 GB SSD

Choose AlmaLinux 9 (64-bit) as the operating system

Shape.host instance form with the operating system image selector highlighted.

Create the instance and wait for provisioning

Shape.host instance form with the Create Instance button highlighted.

Copy the public IP address

Shape.host Resources dashboard with the server IP address highlighted.

Step 2: Connect to the Server (Linux, macOS & Windows)

Linux / macOS

ssh root@YOUR_SERVER_IP

Windows (PowerShell / Windows Terminal)

ssh root@YOUR_SERVER_IP

Windows (PuTTY)

Host Name: YOUR_SERVER_IP
Port: 22
Connection Type: SSH
Username: root

Step 3: Update the System

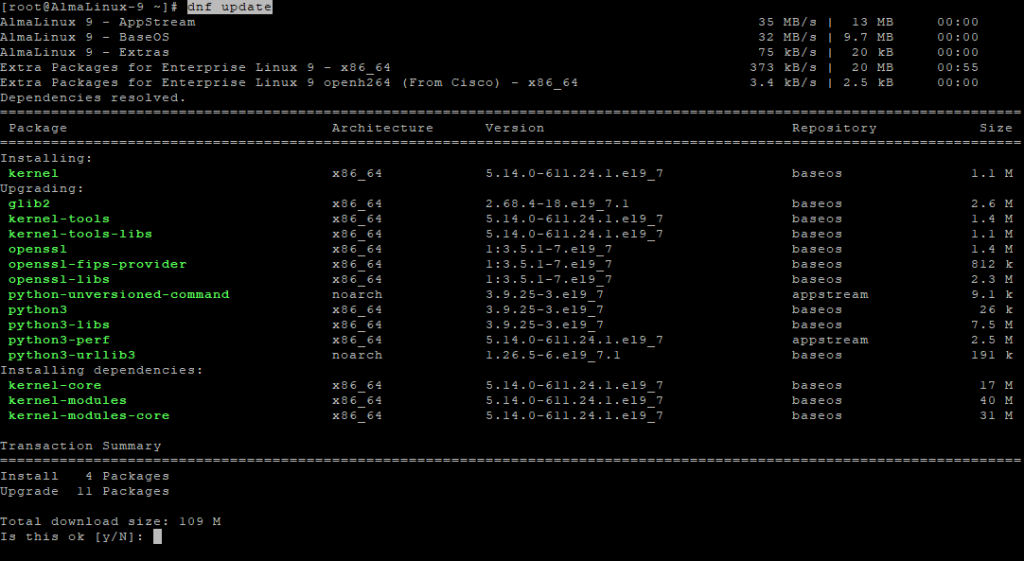

dnf update

This command:

Updates all installed packages
Applies security patches
Prepares the system for Node.js and MeshCentral installation

Terminal showing DNF/YUM package management commands and output.

Step 4: Install Required Dependencies

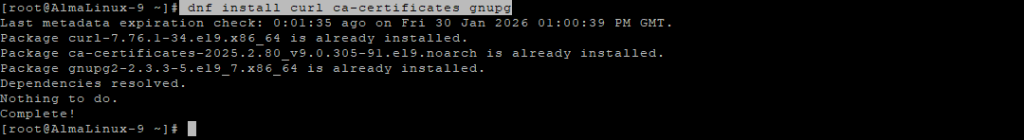

dnf install curl ca-certificates gnupg

These packages are required to:

Securely download external scripts (curl)
Validate HTTPS connections (ca-certificates)
Verify repository signatures (gnupg)

Step 5: Install Node.js 20 (Required by MeshCentral)

MeshCentral requires a modern Node.js runtime.

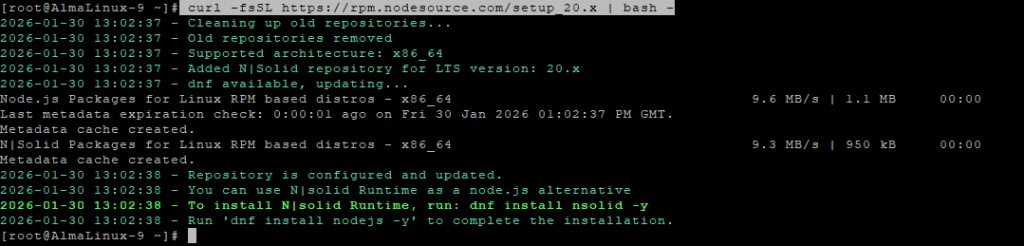

curl -fsSL https://rpm.nodesource.com/setup_20.x | bash -

Adds the official NodeSource repository for Node.js 20

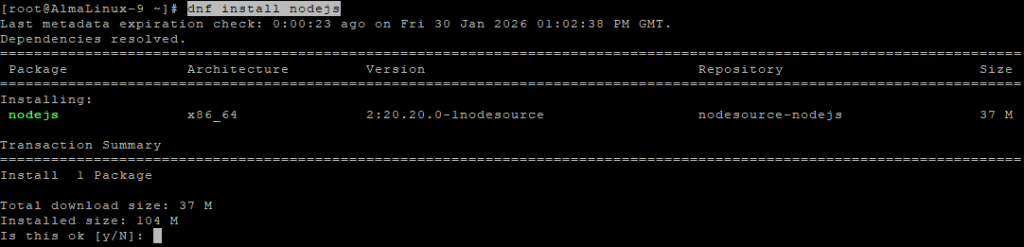

dnf install nodejs

Verify installation:

node -v
npm -v

Terminal showing Node.js or npm version output.

Step 6: Install MeshCentral

Create the application directory:

mkdir -p /opt/meshcentral
cd /opt/meshcentral

Install MeshCentral using npm:

npm install meshcentral

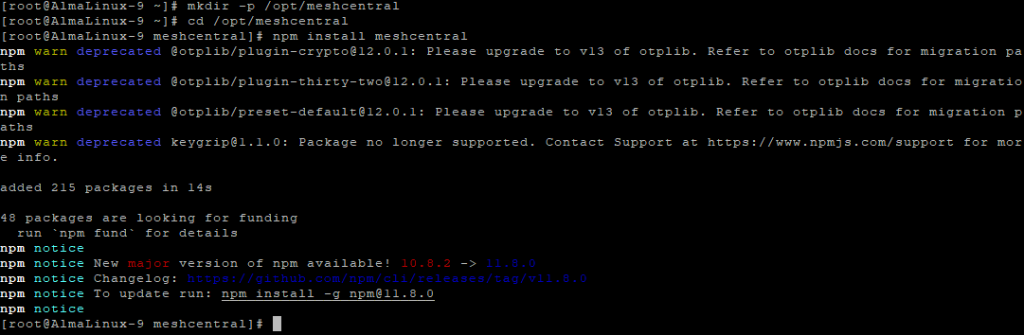

Terminal showing npm package installation messages.

Create the data directory:

mkdir -p /opt/meshcentral/meshcentral-data

This directory will store:

Configuration files
SSL certificates
Runtime data and logs

Step 7: Initial MeshCentral Configuration

Create the configuration file:

nano /opt/meshcentral/meshcentral-data/config.json

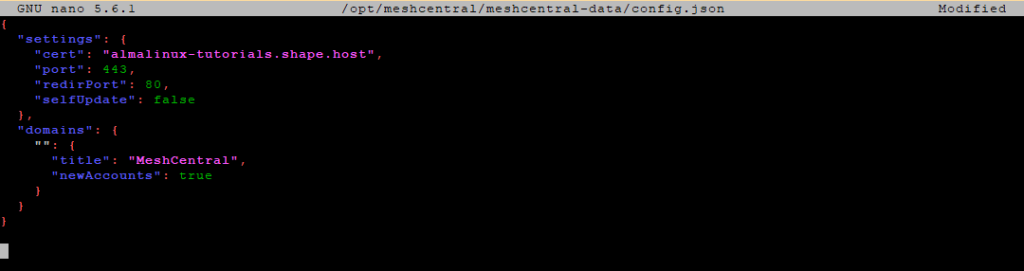

Initial configuration:

{
  "settings": {
    "cert": "almalinux-tutorials.shape.host",
    "port": 443,
    "redirPort": 80,
    "selfUpdate": false
  },
  "domains": {
    "": {
      "title": "MeshCentral",
      "newAccounts": true
    }
  }
}

What this configuration does

Sets the domain MeshCentral will use
Runs MeshCentral on HTTPS (443) and redirects HTTP (80)
Disables automatic updates (recommended for stability)
Allows creation of the first administrator account

Terminal showing the GNU nano editor and configuration text.

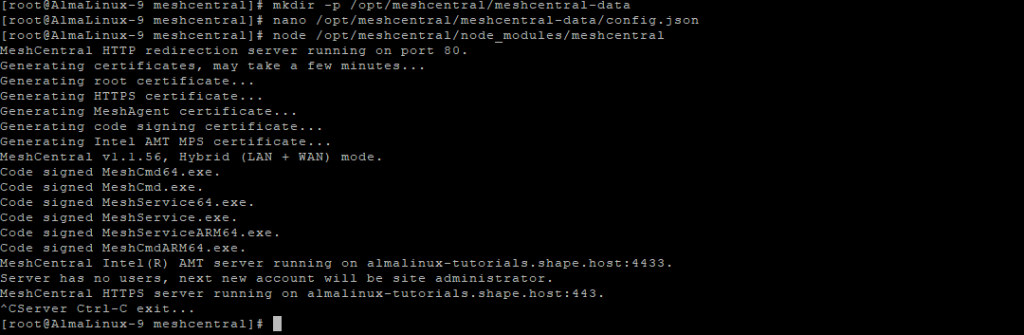

Test-run MeshCentral manually:

node /opt/meshcentral/node_modules/meshcentral

Confirms MeshCentral starts correctly
Stop it with Ctrl + C after verification

Terminal showing file and directory setup commands.

Step 8: Create a systemd Service

Create the systemd service file:

nano /etc/systemd/system/meshcentral.service

Paste the following:

[Unit]
Description=MeshCentral Server
After=network.target

[Service]
Type=simple
ExecStart=/usr/bin/node /opt/meshcentral/node_modules/meshcentral
WorkingDirectory=/opt/meshcentral
Restart=always
RestartSec=10
Environment=NODE_ENV=production

[Install]
WantedBy=multi-user.target

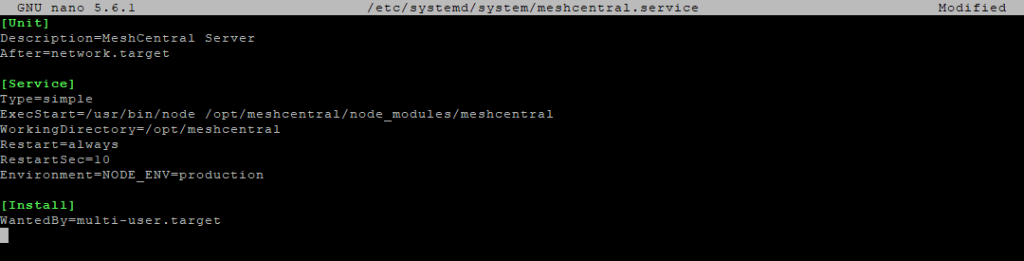

Terminal showing a systemd service unit configuration.

Reload systemd configuration:

systemctl daemon-reload

Enable and start MeshCentral:

systemctl enable meshcentral
systemctl start meshcentral

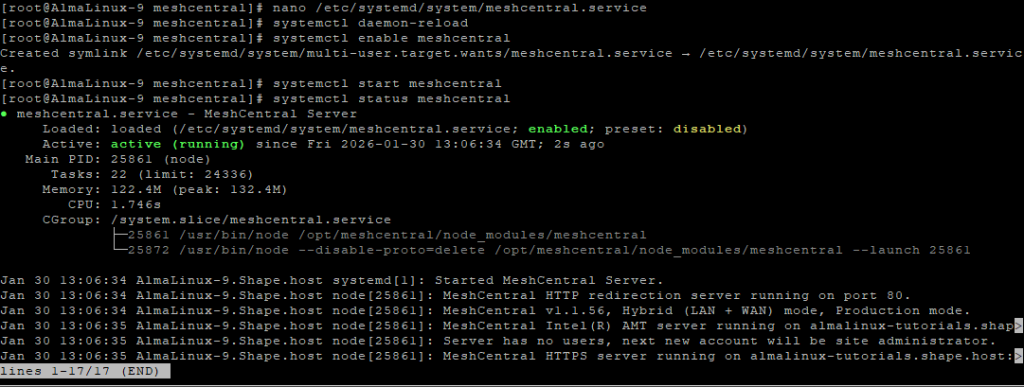

Check service status:

systemctl status meshcentral

Terminal showing the interactive process monitor.

Step 9: Enable Let’s Encrypt SSL

Edit the configuration file again:

nano /opt/meshcentral/meshcentral-data/config.json

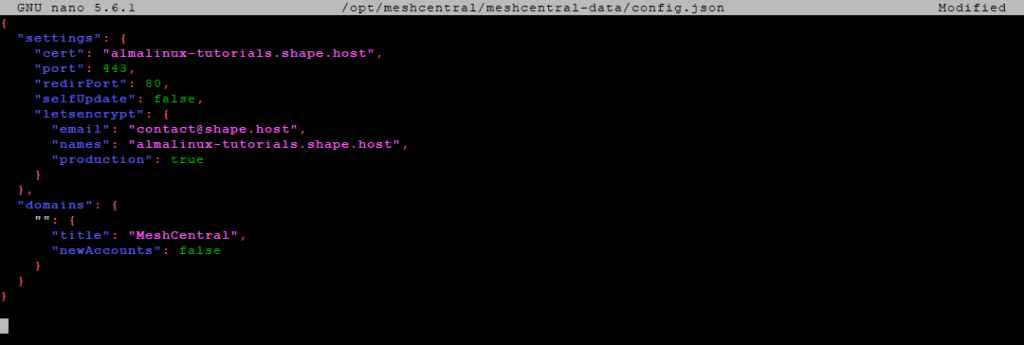

Final production configuration:

{
  "settings": {
    "cert": "almalinux-tutorials.shape.host",
    "port": 443,
    "redirPort": 80,
    "selfUpdate": false,
    "letsencrypt": {
      "email": "contact@shape.host",
      "names": "almalinux-tutorials.shape.host",
      "production": true
    }
  },
  "domains": {
    "": {
      "title": "MeshCentral",
      "newAccounts": false
    }
  }
}

What changed

Enables automatic Let’s Encrypt SSL
Issues a trusted HTTPS certificate
Disables public account creation (recommended for security)

Restart MeshCentral to apply changes:

systemctl restart meshcentral

Terminal showing nano commands or output during What changed.

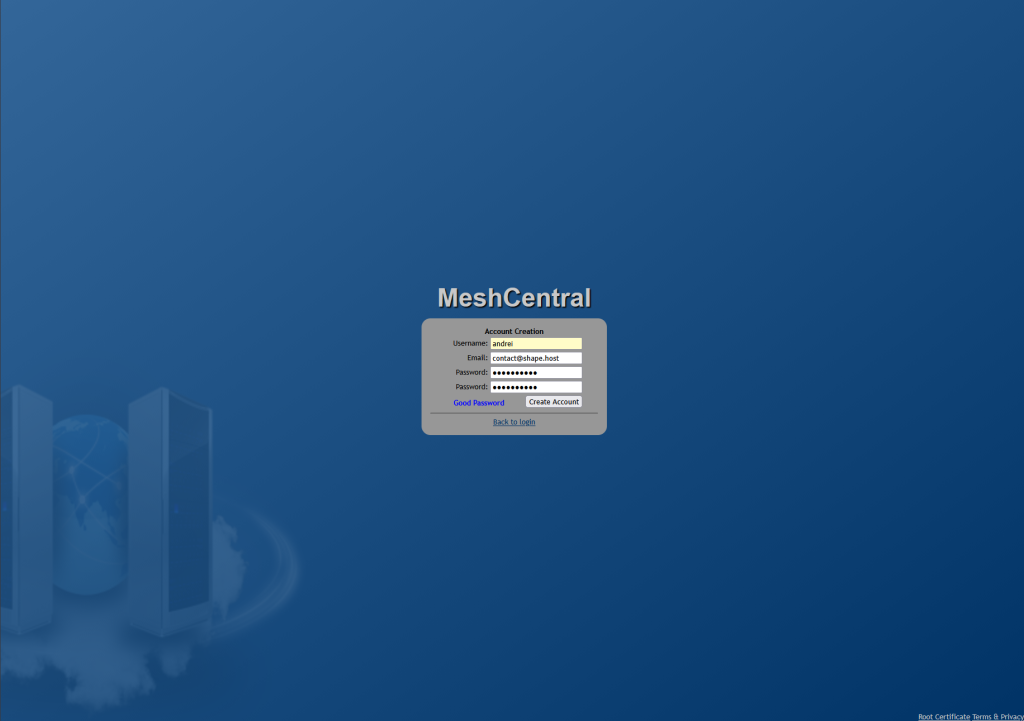

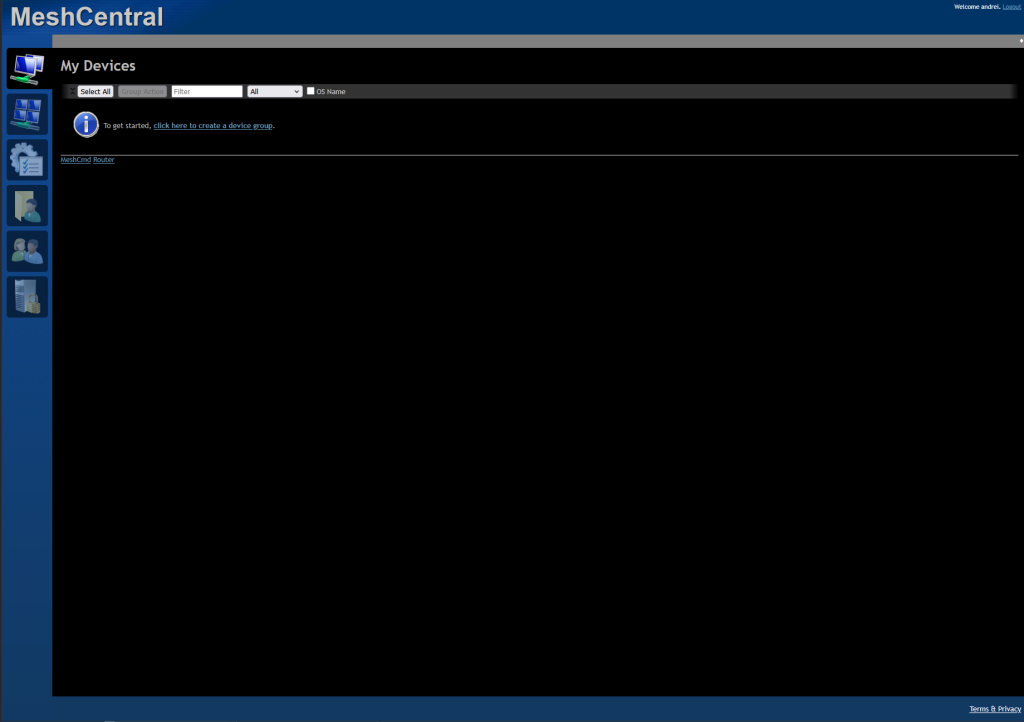

Step 10: Access MeshCentral

Open your browser:

https://almalinux-tutorials.shape.host

You now have:

A fully self-hosted MeshCentral server
Running on AlmaLinux 9
Secured with Let’s Encrypt HTTPS
Managed as a systemd service

You installed MeshCentral on AlmaLinux 9, configured it to run persistently as a system service, and secured it with Let’s Encrypt SSL. This setup provides a robust, centralized, and secure platform for remote management of systems and devices.
