ElkArte is a modern, powerful, and feature-rich open-source forum software that can be easily set up on your Ubuntu 22.04 server. In this guide, we’ll walk you through the step-by-step process to install and configure ElkArte on your server.

Step 1: Initiating Instance Creation

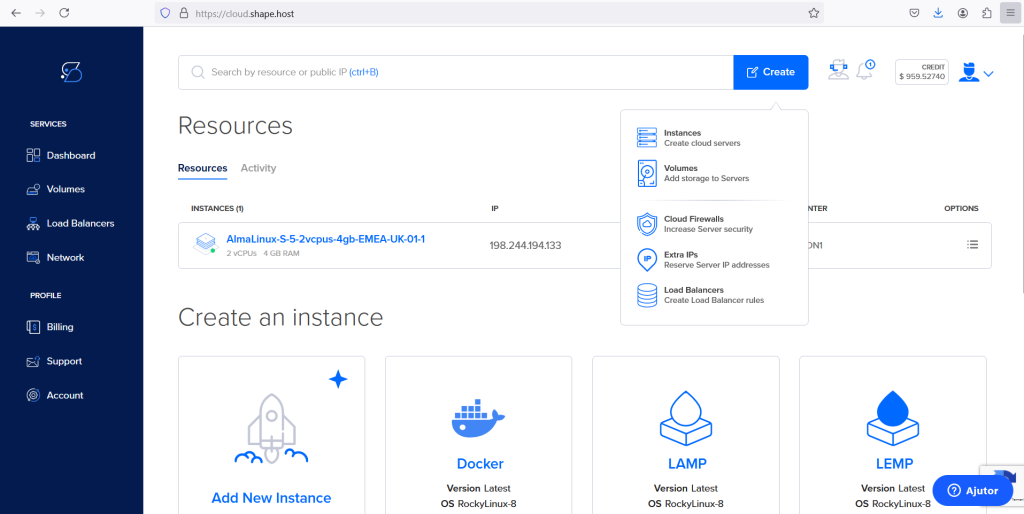

• Creating a New Instance
  • To create a new instance, click on the blue “Create” button located in the top-right corner of the page.
  • Select “Add New Instance” to begin setting up a new virtual machine.

Step 2: Choosing a Location

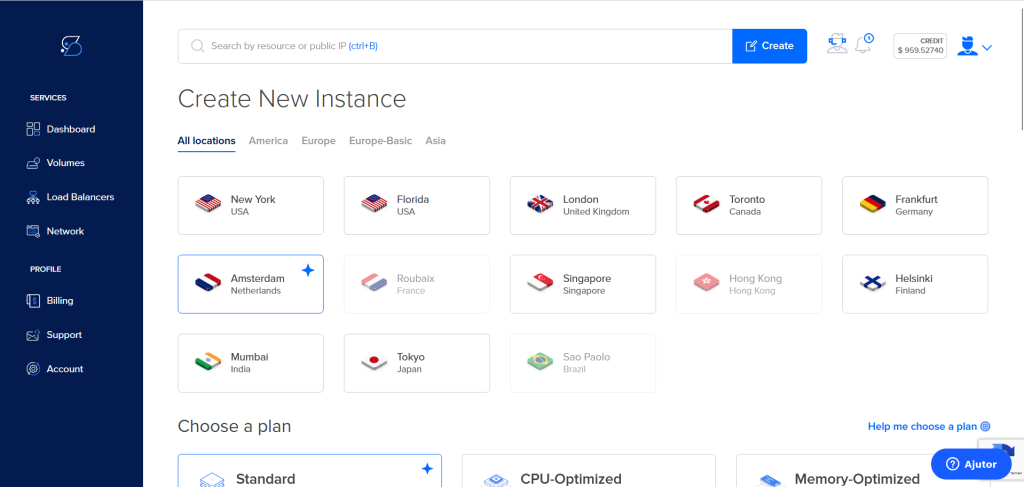

• Select a Data Center
  • On the “Create New Instance” page, choose your preferred data center location. For example, you might select “Amsterdam, Netherlands”.

Step 3: Selecting a Plan

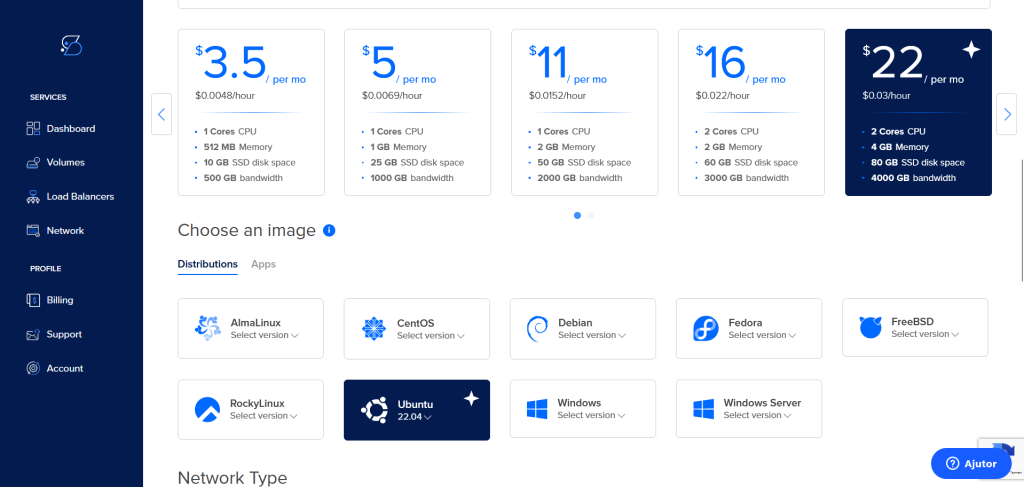

• Choose a Plan
  • Pick a plan that meets your requirements. Options vary in specifications and price, from $3.5 to $22 per month, offering different CPU, memory, storage, and bandwidth.
• Choose an Operating System
  • Scroll to the “Choose an image” section and select Ubuntu 22.04 from the list of available distributions.

Step 4: Authentication Method

• Select an Authentication Method
  • Choose between SSH keys (recommended for better security) or a password for root access. In this guide, we’ll proceed with the password option.

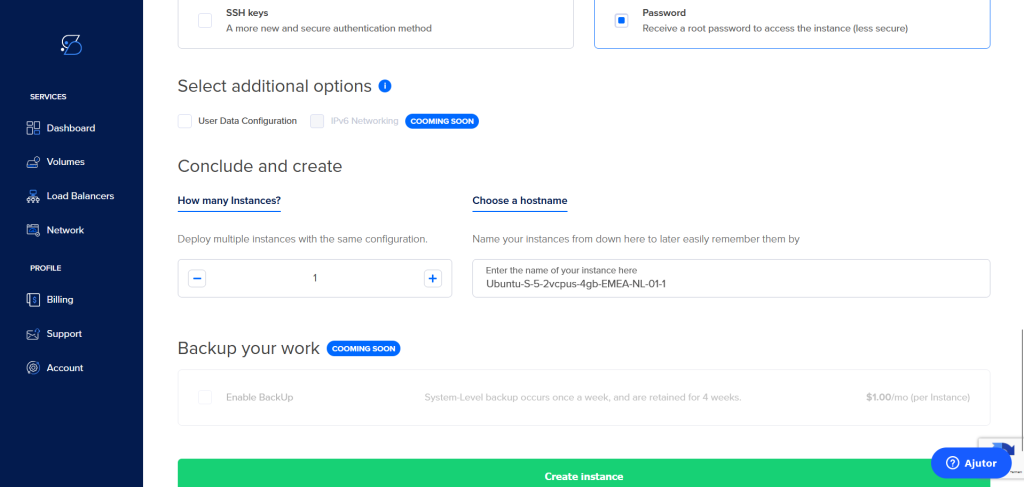

• Complete Instance Creation
  • Click the “Create Instance” button at the bottom of the page to finalize the setup.

Step 5: Connecting to Your Instance

• Retrieve SSH Credentials
  • Note the IP address of your newly created instance from the Shape.host dashboard.
• Connect via SSH
• Open a terminal on your local machine and use the following command to connect to your instance:

ssh root@your_instance_ip

Replace your_instance_ip with the actual IP address of your instance.

Step 6: Update Your Server

Before installing any new software, it’s always a good idea to update your server to ensure all packages are up-to-date. Run the following command:

apt update && apt upgrade -y

Step 7: Install Apache Web Server

ElkArte requires a web server to function, and Apache is a popular and reliable choice. Install Apache with the following command:

apt install apache2 -y

Once installed, ensure Apache is running:

systemctl start apache2
systemctl enable apache2

Step 8: Install PHP and Required Extensions

ElkArte is built with PHP, so you’ll need to install PHP and a few necessary extensions. Execute the following command:

apt install php libapache2-mod-php php-mysql php-gd php-mbstring php-xml php-curl php-unzip php-zip -y

Step 9: Install MySQL Database Server

ElkArte requires a database to store its data. We’ll use MySQL, which can be installed with the following command:

apt install mysql-server -y

After installation, secure your MySQL installation:

mysql_secure_installation

Step 10: Create a Database for ElkArte

Next, log in to the MySQL shell as the root user:

mysql -u root -p

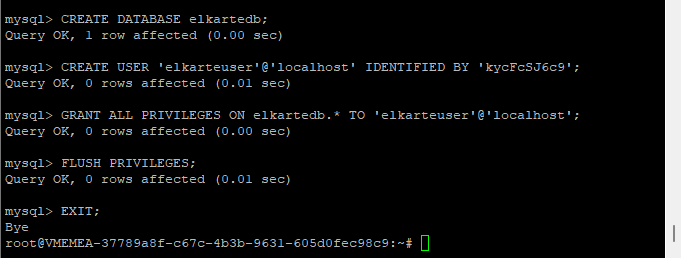

Once logged in, create a new database and user for ElkArte:

CREATE DATABASE elkarte_db;
CREATE USER 'elkarte_user'@'localhost' IDENTIFIED BY 'strong_password';
GRANT ALL PRIVILEGES ON elkarte_db.* TO 'elkarte_user'@'localhost';
FLUSH PRIVILEGES;
EXIT;

Replace 'strong_password' with a secure password.

Step 11: Download and Extract ElkArte

Navigate to the web root directory and download the latest version of ElkArte:

cd /var/www/html
wget https://github.com/elkarte/ElkArte/releases/download/v1.1.9/ElkArte_v1-1-9_install.zip

Extract the downloaded zip file:

unzip ElkArte_v1-1-9_install.zip -d elkarte

Ensure the extracted files are owned by the Apache user:

chown -R www-data:www-data /var/www/html/elkarte
chmod -R 755 /var/www/html/elkarte

Step 12: Configure Apache for ElkArte

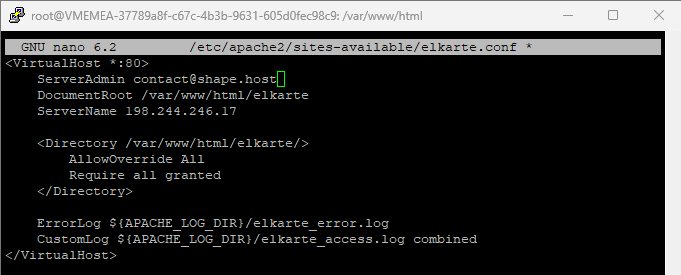

Create a new Apache configuration file for ElkArte:

nano /etc/apache2/sites-available/elkarte.conf

Add the following configuration:

<VirtualHost *:80>
    ServerAdmin admin@example.com
    DocumentRoot /var/www/html/elkarte
    ServerName example.com

    <Directory /var/www/html/elkarte/>
        AllowOverride All
        Require all granted
    </Directory>

    ErrorLog ${APACHE_LOG_DIR}/elkarte_error.log
    CustomLog ${APACHE_LOG_DIR}/elkarte_access.log combined
</VirtualHost>

Enable the site and the mod_rewrite module, then restart Apache:

a2ensite elkarte.conf
a2enmod rewrite
systemctl restart apache2

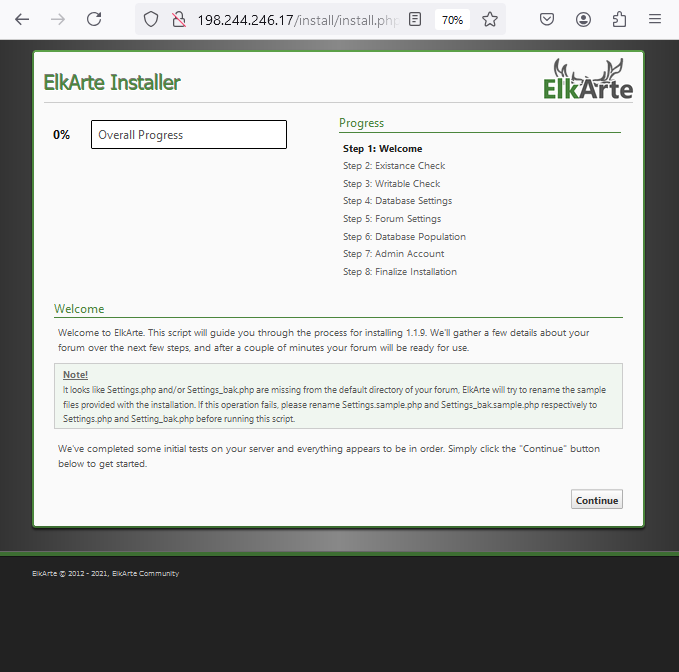

Step 13: Complete ElkArte Installation via Web Browser

Now that everything is set up, open your web browser and navigate to:

http://your-server-ip/elkarte/install.php

Follow the on-screen instructions to complete the installation. You will be prompted to enter the database details you configured earlier.

Once the installation is complete, remove the install.php file for security reasons:

rm /var/www/html/elkarte/install.php

Your ElkArte forum software is now successfully installed and ready for use on your Ubuntu 22.04 server.
