Christian WellsGrafana is an open-source platform used for monitoring, data visualization, and analytics. It allows users to create interactive, customizable dashboards that visualize data from a wide range of sources, including time-series databases, SQL databases, cloud services, and log aggregation tools. Running Grafana on Debian 12 provides a stable, secure, and performance-optimized environment for system monitoring, performance analysis, and business intelligence.
Key Features of Grafana on Debian 12
- Interactive Dashboards
- Create visually appealing dashboards using graphs, heatmaps, tables, and single-stat panels.
- Multi-Source Data Integration
- Connects to multiple data sources like Prometheus, InfluxDB, MySQL, PostgreSQL, AWS CloudWatch, Google Cloud Monitoring, and more.
- Customizable Alerts and Notifications
- Set up real-time alerts with notifications via Slack, email, PagerDuty, and webhooks.
- User Authentication and Access Control
- Supports LDAP, OAuth, and SAML for secure user authentication and role-based access control (RBAC).
- Annotations and Event Markers
- Highlight key events on dashboards to correlate performance metrics with incidents.
- Templating and Variables
- Use variables and templates to create dynamic, reusable dashboards that adapt to different data sets.
- Plug-Ins and Extensions
- Extend functionality with community and enterprise plug-ins for additional panels, data sources, and applications.
- Data Transformation and Query Building
- Built-in query editors and transformation tools allow advanced data manipulation without external scripts.
- Built-In Alerting Engine
- Generate alerts based on predefined conditions and send notifications to various channels.
- Cross-Platform Compatibility
- Available on Linux, Windows, macOS, and as a Docker container, ensuring flexible deployment options.
Advantages of Using Grafana on Debian 12
- Real-Time Monitoring: Visualize real-time system performance metrics, server health, and network traffic.
- Customizable Dashboards: Tailor dashboards to specific use cases, from infrastructure monitoring to business KPIs.
- Scalable and Performance-Optimized: Handles large datasets with minimal performance overhead, suitable for enterprise-scale deployments.
- Secure and Reliable: Built-in authentication, encryption, and RBAC ensure secure access to sensitive data.
- Flexible Deployment: Install Grafana directly on Debian 12, deploy via Docker containers, or run on cloud platforms.
Use Cases of Grafana on Debian 12
- Infrastructure Monitoring
- Track CPU usage, memory consumption, disk I/O, and network performance using data from Prometheus or InfluxDB.
- Application Performance Monitoring (APM)
- Visualize application metrics like response times, error rates, and throughput using Jaeger, Tempo, or OpenTelemetry.
- Log Aggregation and Analysis
- Combine Grafana with Loki to create unified dashboards that display both logs and metrics side by side.
- Business Intelligence and KPIs
- Monitor sales performance, customer engagement, and operational efficiency using data from SQL databases and Google Analytics.
- DevOps and CI/CD Pipelines
- Track build statuses, deployment metrics, and system health during continuous integration and delivery pipelines.
- IoT Device Monitoring
- Visualize sensor data from IoT devices using MQTT, Node-RED, and InfluxDB integrations.
- Cloud Resource Monitoring
- Monitor cloud services like AWS, Azure, and Google Cloud to ensure optimal resource utilization and cost management.
Grafana vs. Other Visualization Tools
| Feature | Grafana | Kibana | Tableau | Power BI |
|---|---|---|---|---|
| Open Source | ✅ Yes | ✅ Yes (Basic) | ❌ No (Paid) | ❌ No (Paid) |
| Real-Time Data Monitoring | ✅ Yes | ✅ Yes | ⚠️ Limited | ⚠️ Limited |
| Multi-Source Integration | ✅ Extensive | ✅ Elasticsearch Focused | ✅ Limited | ✅ Limited |
| Customizable Dashboards | ✅ Highly Customizable | ✅ Customizable | ✅ Visual-Focused | ✅ Visual-Focused |
| Alerting and Notifications | ✅ Built-In | ✅ Limited | ❌ No | ✅ Limited |
| Plug-Ins and Extensions | ✅ Community and Enterprise | ⚠️ Limited | ✅ Commercial Add-Ons | ✅ Commercial Add-Ons |
| Cross-Platform Deployment | ✅ Linux, Windows, Docker | ✅ Linux, Windows, Docker | ✅ Desktop and Cloud | ✅ Desktop and Cloud |
Why Use Grafana on Debian 12?
- Stability and Performance: Debian 12 provides a stable, secure, and efficient environment, ensuring reliable Grafana performance.
- Cost-Effective: Grafana is free and open-source, reducing software licensing costs.
- Flexible Deployment: Install directly on Debian 12, run in Docker containers, or deploy on cloud platforms like AWS, Azure, or Google Cloud.
- Scalability: Suitable for small teams and large enterprises, with seamless scaling to accommodate growing data volumes.
- Community and Enterprise Support: Benefit from community support or choose Grafana Enterprise for additional features and professional support.
Grafana on Debian 12 offers a powerful and flexible platform for visualizing, monitoring, and analyzing data from multiple sources. Whether you’re monitoring system performance, tracking business KPIs, or analyzing application metrics, Grafana’s interactive dashboards, real-time alerts, and extensive integrations make it the ideal solution for both small teams and large enterprises.
Step 1: Create a Server Instance on Shape.Host
Before installing Grafana, you’ll need a server to host your environment. Here’s how to set up a server instance on Shape.Host:
Log in to Shape.Host: Go to the Shape.Host website and log in to your account. Navigate to the Cloud VPS section.
Create a New Instance: Click on “Create” and choose the server type that fits your needs.
Pick a Data Center: Select a data center location close to your audience for better performance.
Choose a Plan: Pick a hosting plan that matches your project’s requirements and budget.
Set the OS: Choose Debian 12 as your operating system.
Launch the Server: Review your settings and click “Create Instance” Your server will be ready in a few minutes.
Find your instance’s IP address under the Resources section and use it to access your server.
Step 2: Connect to Your Server
Once your server is ready, you’ll need to connect to it using SSH. Here’s how:
- Linux/macOS: Open your terminal and type:
ssh root@your_server_ipReplace your_server_ip with your server’s IP address.
- Windows: Use an SSH client like PuTTY. Enter your server’s IP address, specify the port (usually 22), and click “Open.” Log in with your username and password.

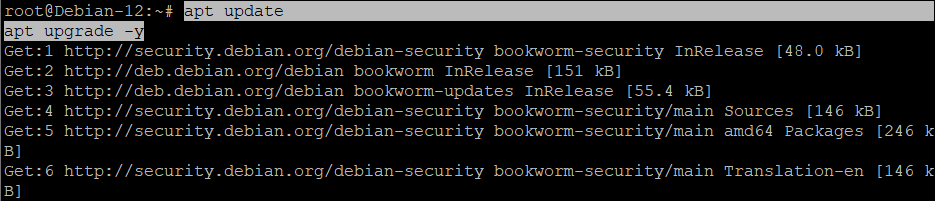

Step 3: Update Your System
Before installing any software, it’s important to update your system to ensure all software is up to date. Run the following commands:
apt update
apt upgrade -y

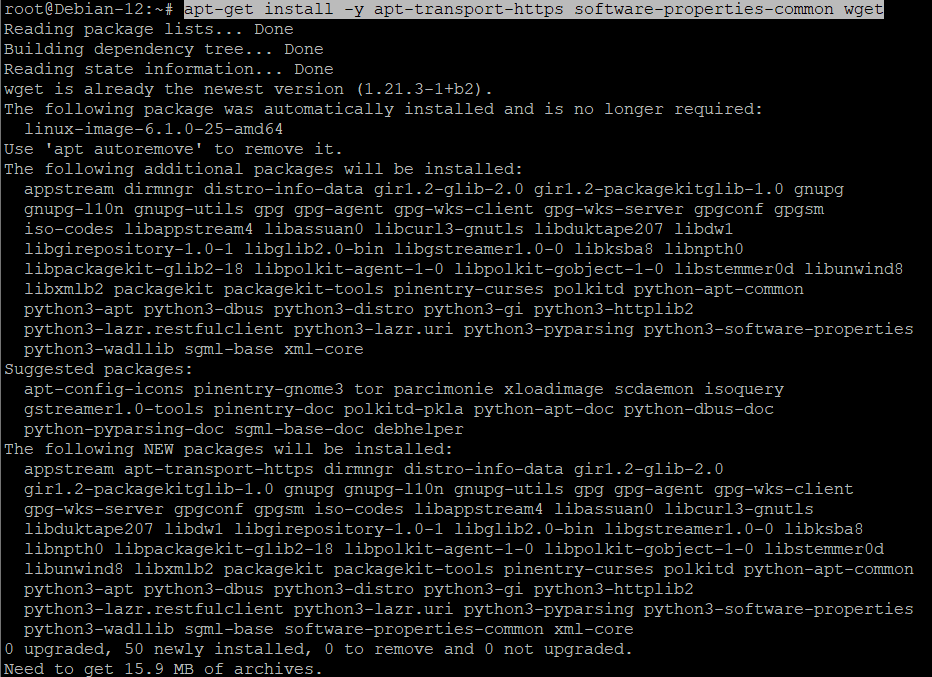

Step 4: Install Required Dependencies
Grafana requires some additional packages to be installed. Run the following command to install them:
apt-get install -y apt-transport-https software-properties-common wgetThese packages include tools for securely downloading files and managing software repositories.

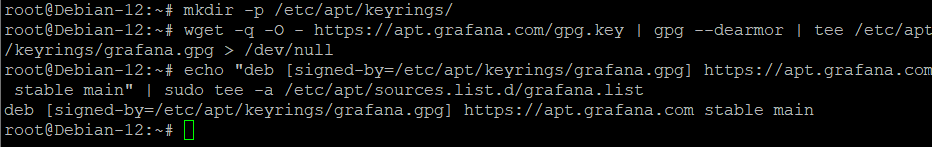

Step 5: Add Grafana’s GPG Key
To ensure the authenticity of the Grafana packages, add Grafana’s GPG key to your system:
mkdir -p /etc/apt/keyrings/
wget -q -O - https://apt.grafana.com/gpg.key | gpg --dearmor | tee /etc/apt/keyrings/grafana.gpg > /dev/nullStep 6: Add Grafana’s Repository
Next, add Grafana’s official repository to your system’s sources list:
echo "deb [signed-by=/etc/apt/keyrings/grafana.gpg] https://apt.grafana.com stable main" | tee -a /etc/apt/sources.list.d/grafana.list

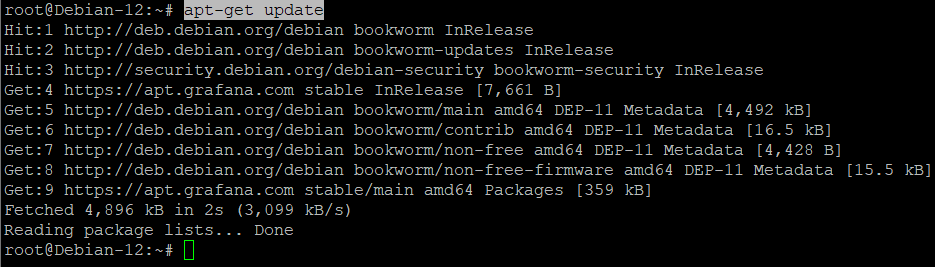

Step 7: Update Package Lists
After adding the repository, update your package lists to include Grafana:
apt-get update

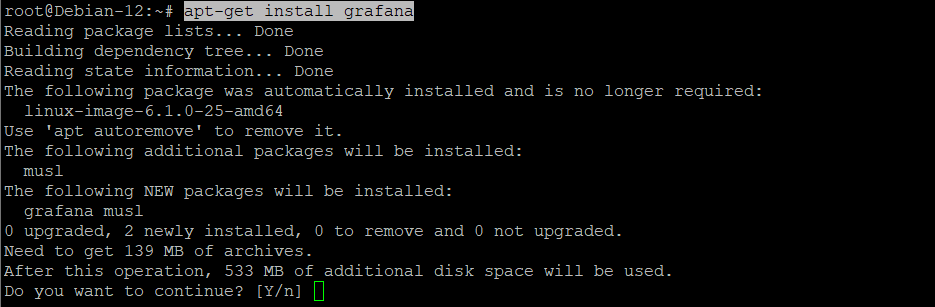

Step 8: Install Grafana
Now, install Grafana using the following command:
apt-get install grafanaThis will download and install Grafana along with its dependencies.

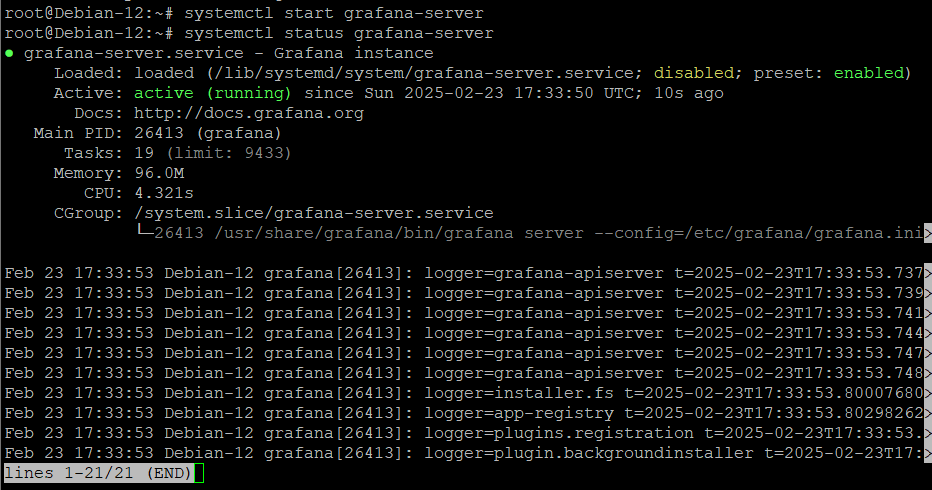

Step 9: Start the Grafana Service
Once Grafana is installed, start the Grafana service with:
systemctl start grafana-serverStep 10: Check the Status of Grafana
To ensure that Grafana is running correctly, check its status:
systemctl status grafana-serverYou should see output indicating that the service is active and running.

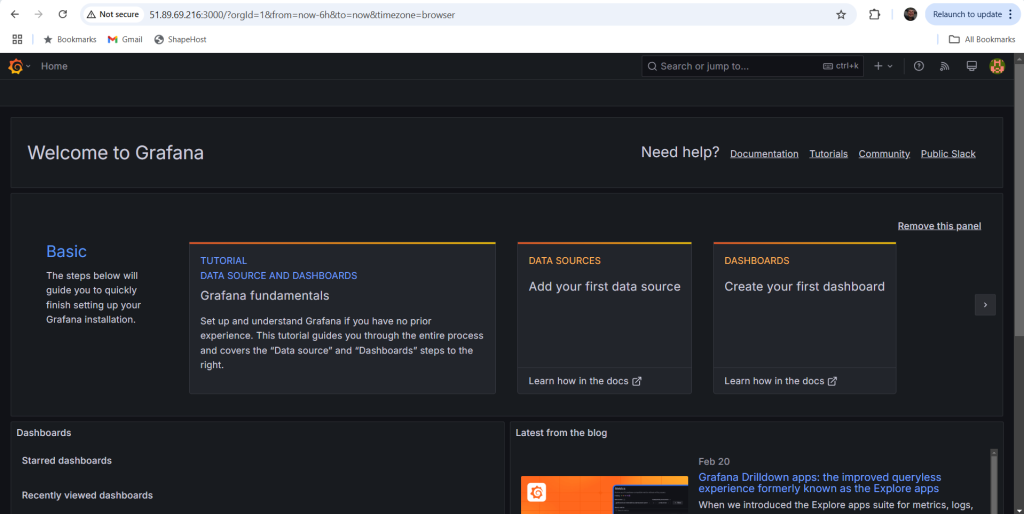

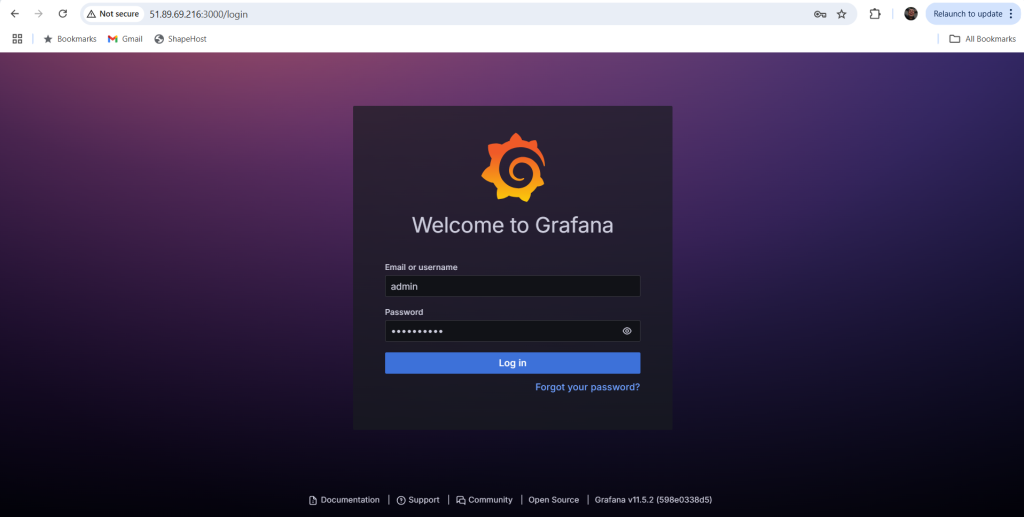

Step 11: Access Grafana
Grafana runs on port 3000 by default. Open your web browser and navigate to:
http://<your_server_ip>:3000You’ll see the Grafana login page. The default username is admin, and the default password is also admin. You’ll be prompted to change the password after your first login.
