Munin is a networked resource monitoring tool that provides detailed information about the performance of your systems. In this tutorial, you’ll learn how to install Munin on Debian 12. We’ll guide you step-by-step through the process, from setting up the server environment to accessing the Munin web interface.

Key Features of Munin:

• Resource Monitoring:
  Munin is primarily used to monitor various system resources such as:

• CPU usage
• Memory utilization
• Disk usage and I/O performance
• Network traffic and bandwidth
• Load averages
• Processes and active connections

• Web-Based Graphical Interface:
  Munin generates graphical performance reports accessible via a web interface. It uses RRDtool (Round-Robin Database Tool) to create graphs of system metrics over time, allowing you to track trends, spot anomalies, and predict future resource usage.
• Modular Plugin System:
  Munin uses a modular plugin system that allows it to collect data on different metrics. By default, it comes with a wide range of plugins, but it’s easy to write custom plugins or add third-party ones to monitor specific services or applications. Commonly available plugins monitor:

• Apache, Nginx, and other web servers
• MySQL, PostgreSQL, and other databases
• Mail servers
• Network devices
• Custom scripts and applications

• Master/Node Architecture:
  Munin operates on a master/node architecture:

• Node: Each monitored server runs a Munin node, which collects data using plugins.
• Master: The master server gathers data from multiple nodes and generates the graphical reports.
  This distributed architecture allows Munin to monitor multiple servers and devices from a single interface.

• Alerts and Thresholds:
  Munin allows you to set thresholds for certain metrics (such as disk usage or memory) and can send notifications when those thresholds are breached. While its alerting system is basic compared to more specialized tools, it can notify you when your system is under high load or at risk of running out of resources.
• Customization and Extensibility:
  Munin is highly customizable. You can adjust the polling frequency, add custom scripts, or extend its capabilities by writing new plugins to monitor additional services or specific applications. It also integrates well with other monitoring systems or notification tools.

Use Cases of Munin:

• Server Resource Monitoring:
  Munin is often used to monitor the resource usage of servers (CPU, RAM, disk I/O) and track how they change over time. This can help system administrators identify potential bottlenecks, forecast resource needs, and ensure systems remain healthy.
• Web Server and Database Monitoring:
  Munin provides plugins for monitoring web servers (e.g., Apache, Nginx) and databases (e.g., MySQL, PostgreSQL). This makes it useful for identifying slowdowns, resource constraints, or misconfigurations in your web and database infrastructure.
• Long-Term Trend Analysis:
  With its historical data retention and visual graphing, Munin allows administrators to track long-term trends in system performance. For example, you can easily spot an increase in CPU usage or disk space consumption over several months.
• Network Monitoring:
  Munin can also be used to monitor network traffic, bandwidth utilization, and network device performance, making it useful for both server administrators and network engineers.
• Predictive Analysis:
  By collecting and graphing historical data, Munin can help administrators predict future resource consumption. For example, if you observe that disk usage is increasing by 10% per week, you can forecast when you’ll need to add more storage.

Advantages of Munin:

• Easy to set up: Munin is relatively easy to install and configure, especially for basic server monitoring.
• Scalable: It can monitor multiple servers (nodes) from one master interface.
• Visual reporting: Provides clear, easy-to-understand graphical reports for quick insights.
• Lightweight: Munin is not resource-intensive and can be run on low-resource servers.
• Wide range of plugins: The plugin system provides flexibility for monitoring various services and devices.

Disadvantages of Munin:

• Basic alerting: Munin’s alerting capabilities are not as advanced as those of specialized tools like Nagios or Zabbix.
• Limited real-time monitoring: While Munin provides regular updates, it is not designed for real-time monitoring like Prometheus.
• Manual plugin management: Adding custom plugins requires more hands-on work compared to some more user-friendly systems.

Munin is a powerful, flexible, and easy-to-use monitoring tool, especially suitable for system administrators who need to monitor a range of system metrics across multiple servers. It provides detailed insights into performance trends through graphical reports, making it ideal for long-term resource tracking and capacity planning. While it may not offer the most advanced real-time alerting features, it is a lightweight and robust solution for general system monitoring needs.

Step 1: Create an Instance

• Access the Dashboard: Log in to your Shape.Host account and navigate to your Dashboard.

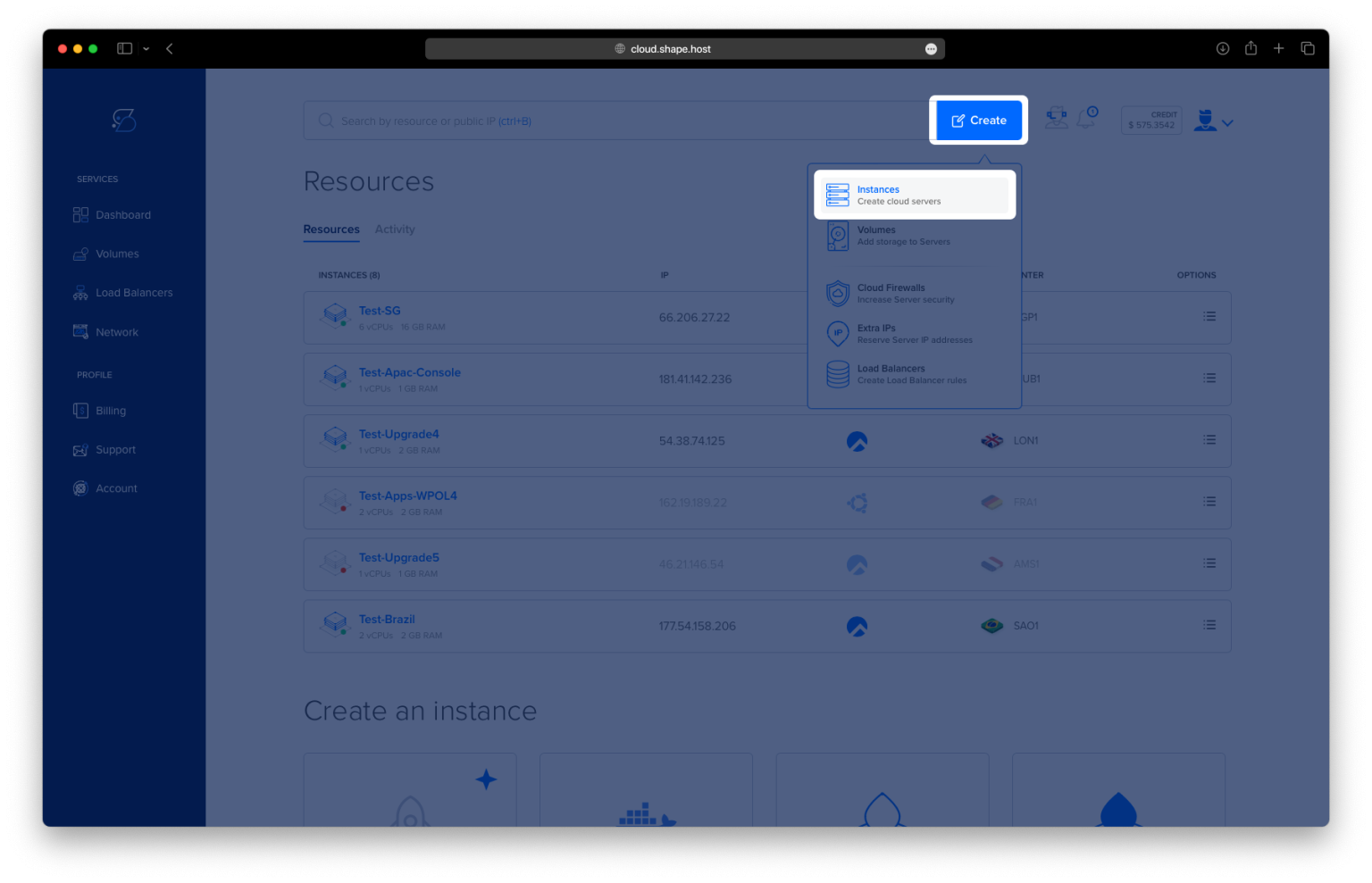

• Click Create: Click on the “Create” button located in the top-right corner.
• Select Instances: From the dropdown menu, choose “Instances” to begin creating a new cloud server.

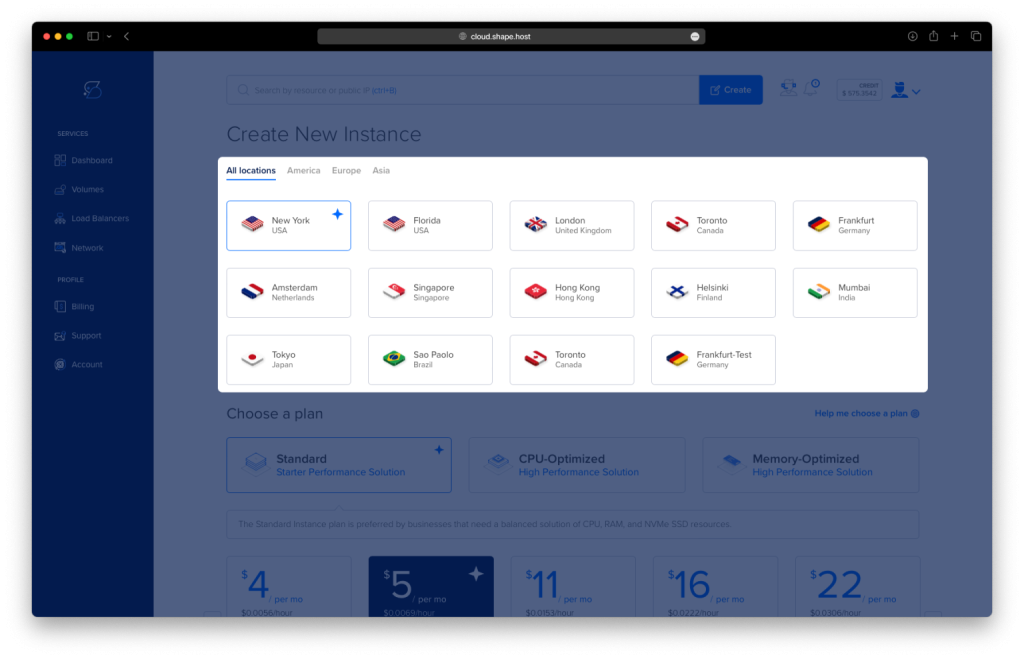

• Select Location: Choose a data center location for your instance closest to your target audience for optimal performance.

• Choose a Plan: Scroll through the available pricing plans. Select a plan based on your project requirements, such as Standard, CPU-Optimized, or Memory-Optimized.

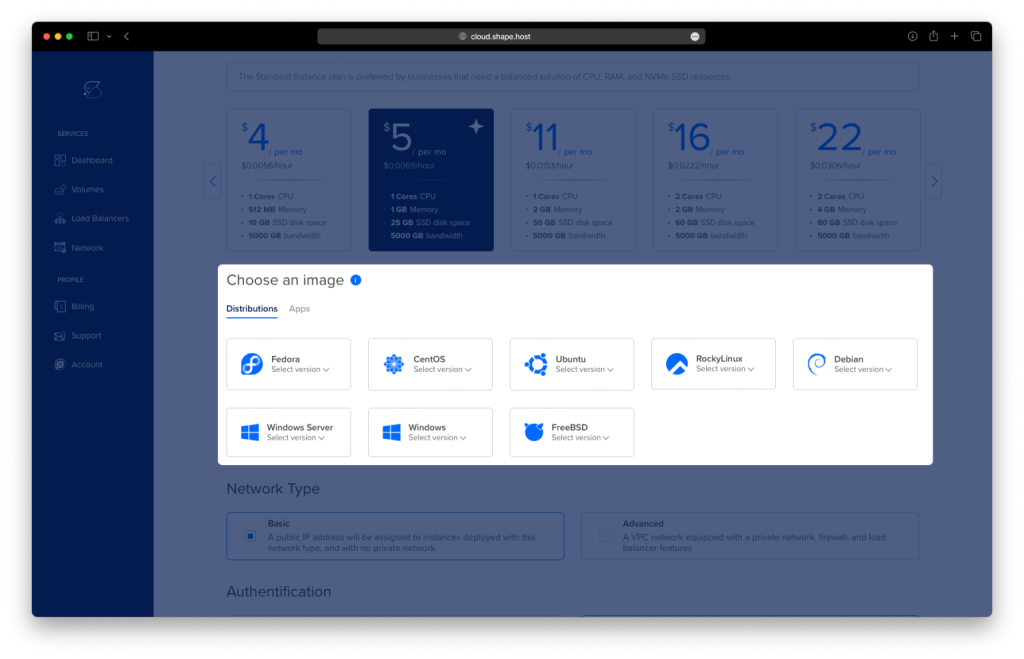

• Choose an Image: Select Debian 12 as the operating system for your instance.

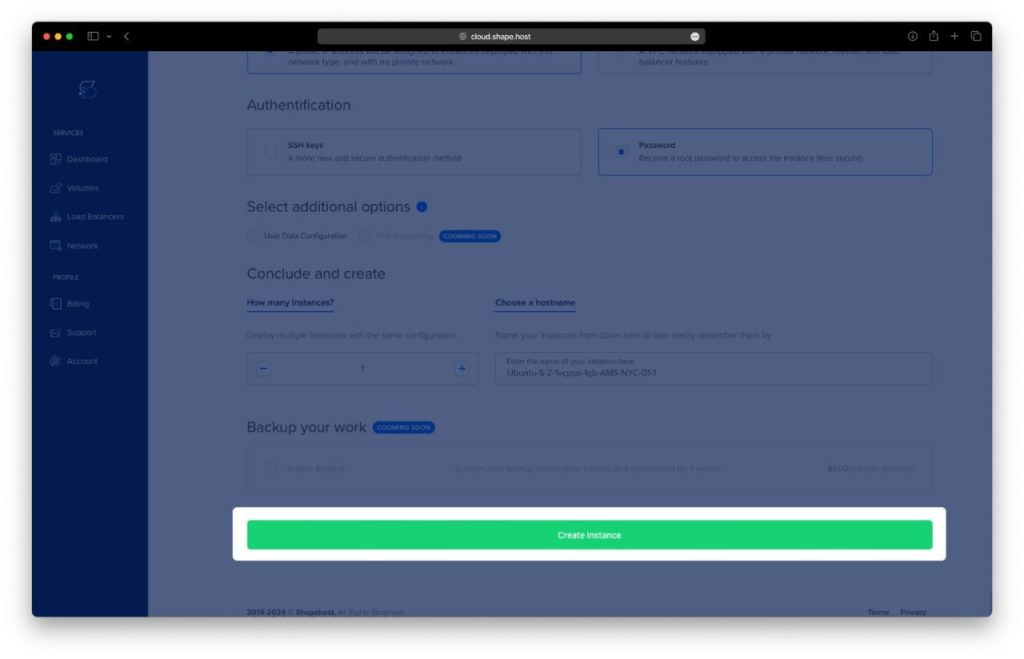

• Authentication and Finalize: Choose your authentication method, either via SSH keys or password. Once done, click Create Instance to launch your server.

Step 2: Access Your Munin Instance

To connect to your instance on Shape.Host, follow these steps:

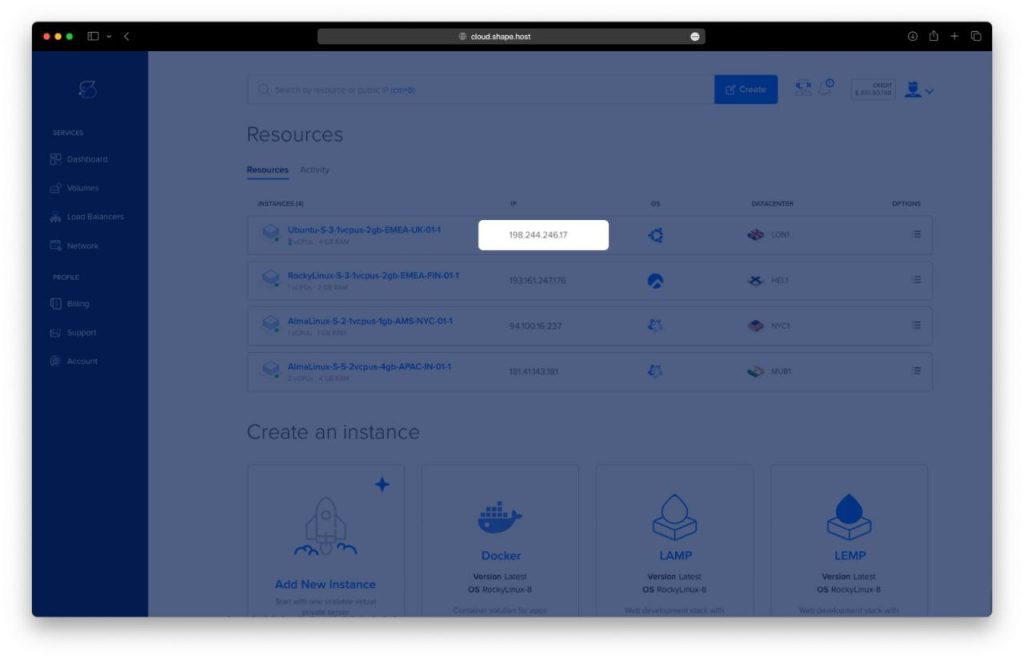

1. Get the Instance IP: After creating your instance, find the public IP address in the Shape.Host dashboard under Resources.
2. Open SSH Client: Use an SSH client like Terminal (Linux/macOS) or PuTTY (Windows).
3. SSH into the Instance: Run the following command in your terminal:

   ssh root@<your-instance-ip>

Replace <your-instance-ip> with your actual instance IP address.

4. Enter the Password: If prompted, enter your instance’s root password or use your SSH key if configured.

You are now connected to your instance!

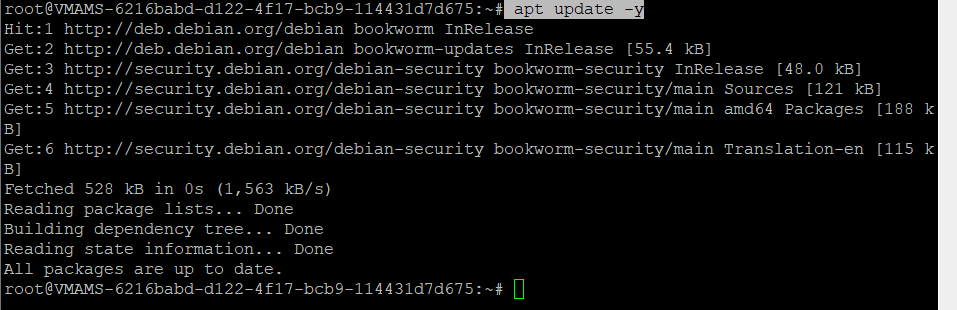

Step 3: Update System Packages

Start by updating the system’s package index to ensure all software is up-to-date:

apt update -y

Step 4: Install Apache and Required Modules

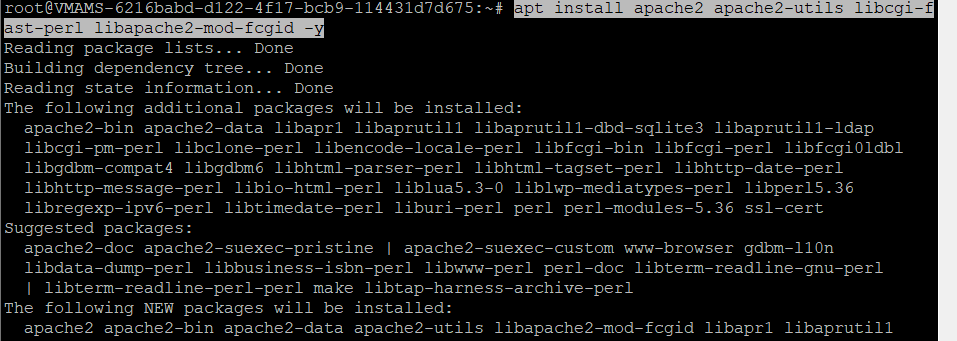

Munin requires Apache to function properly. Install Apache and necessary modules:

apt install apache2 apache2-utils libcgi-fast-perl libapache2-mod-fcgid -y

Enable the fcgid module and restart Apache:

a2enmod fcgid
systemctl restart apache2

Step 5: Install Munin

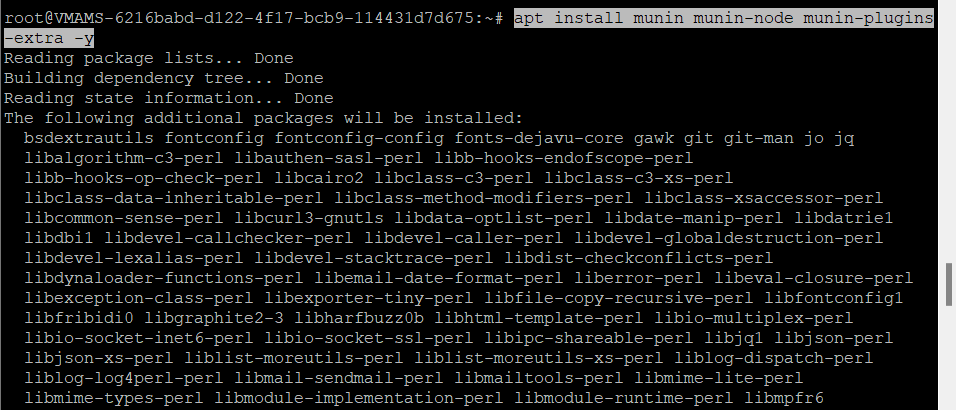

Install Munin and its components:

apt install munin munin-node munin-plugins-extra -y

Step 6: Configure Authentication for Munin

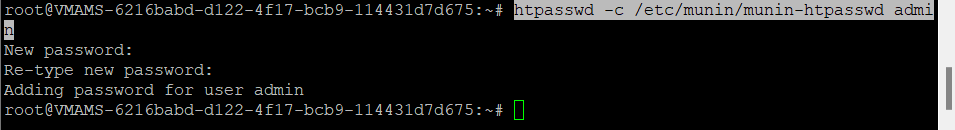

Create an authentication file for Munin using the htpasswd command:

htpasswd -c /etc/munin/munin-htpasswd admin

Step 7: Configure Apache for Munin

Copy the default Munin Apache configuration file:

cp -p /etc/munin/apache24.conf /etc/apache2/sites-available/munin.conf

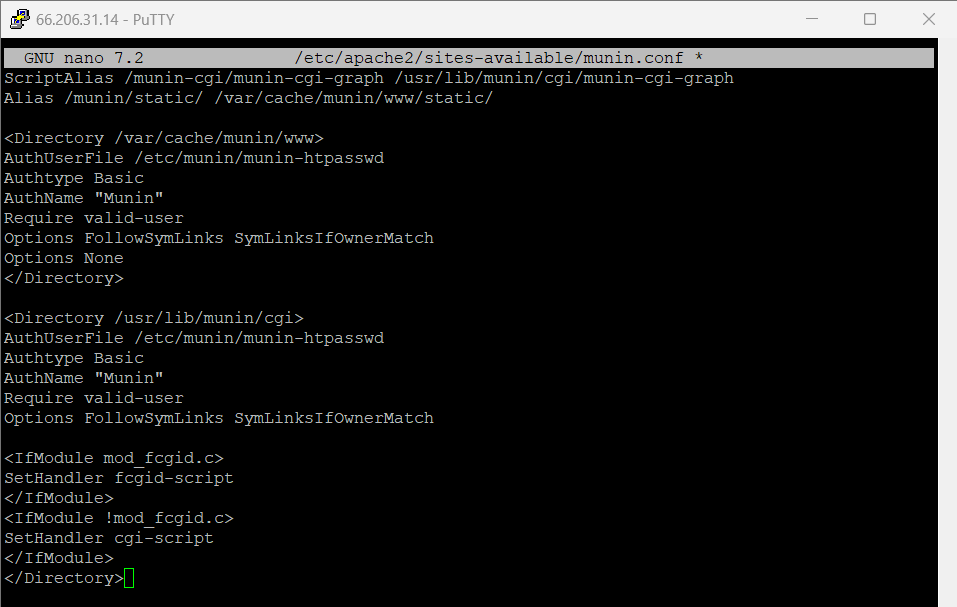

Edit the configuration file to set up Munin:

nano /etc/apache2/sites-available/munin.conf

Make the following changes:

ScriptAlias /munin-cgi/munin-cgi-graph /usr/lib/munin/cgi/munin-cgi-graph
Alias /munin/static/ /var/cache/munin/www/static/

<Directory /var/cache/munin/www>
  AuthUserFile /etc/munin/munin-htpasswd
  Authtype Basic
  AuthName "Munin"
  Require valid-user
  Options FollowSymLinks SymLinksIfOwnerMatch
  Options None
</Directory>

<Directory /usr/lib/munin/cgi>
  AuthUserFile /etc/munin/munin-htpasswd
  Authtype Basic
  AuthName "Munin"
  Require valid-user
  Options FollowSymLinks SymLinksIfOwnerMatch

  <IfModule mod_fcgid.c>
    SetHandler fcgid-script
  </IfModule>
  <IfModule !mod_fcgid.c>
    SetHandler cgi-script
  </IfModule>
</Directory>

Step 8: Enable Munin Site and Restart Services

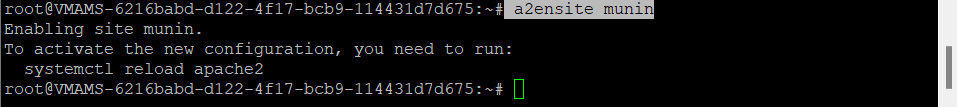

Enable the Munin site in Apache:

a2ensite munin

Restart Apache and Munin services:

systemctl restart apache2
systemctl restart munin-node

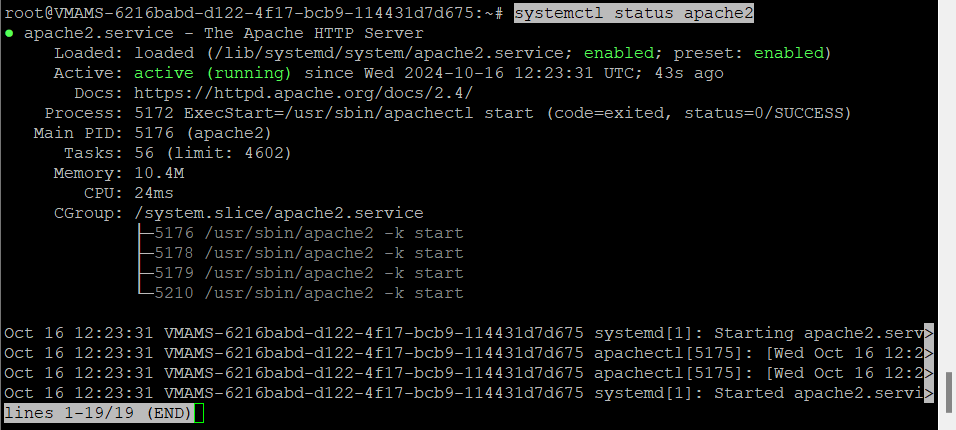

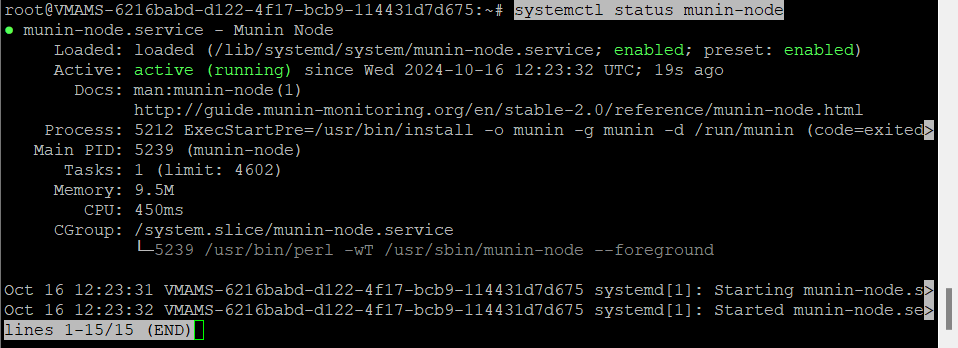

Verify the status of Munin Node and Apache:

systemctl status munin-node
systemctl status apache2

Step 9: Access Munin Web Interface

Open your web browser and access the Munin web interface using the URL:

http://<your-server-ip>/munin

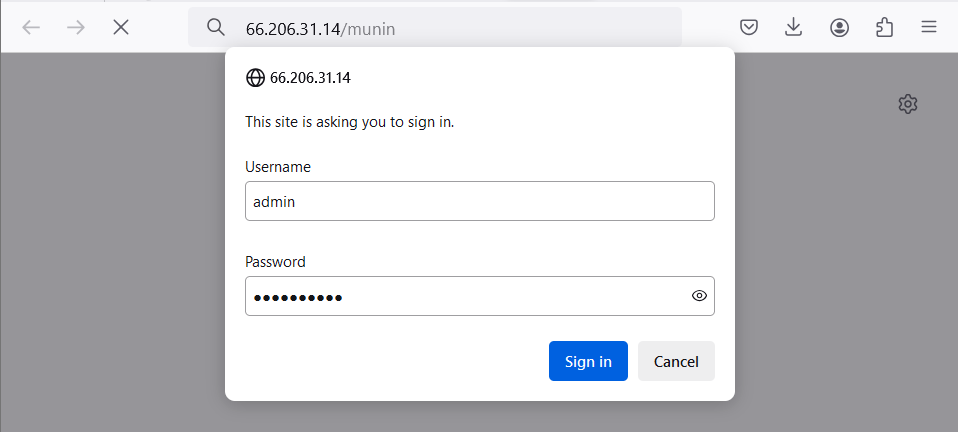

You will be redirected to the Munin login page. Use the username admin and the password you set earlier to log in.

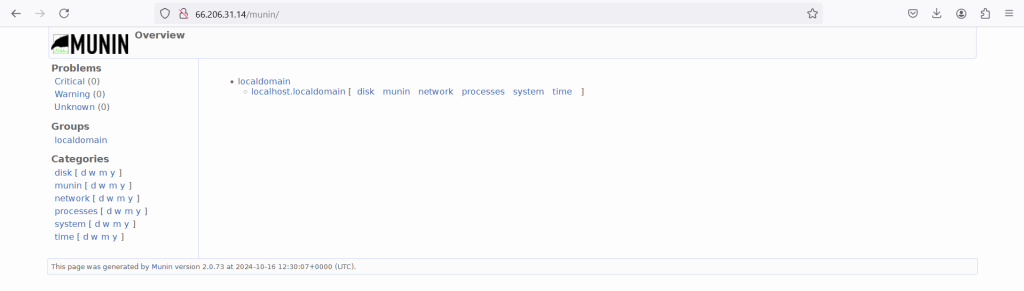

Provide your admin username, password and click on the Sign in button. You should see the Munin dashboard on the following page:

---
