Harbor is an open-source container image registry designed to enhance Docker and OCI image management with built-in security, authentication, and replication features. It provides organizations with a private, secure, and scalable alternative to public registries like Docker Hub. Harbor is widely used for containerized applications in cloud and enterprise environments.

---

Key Features of Harbor on Debian 12

1. Private Container Registry
   • Allows secure storage and management of Docker and OCI images within an organization.
2. Role-Based Access Control (RBAC)
   • Supports user and team-based permissions to control access to repositories.
3. Image Vulnerability Scanning
   • Integrated security scanning using Trivy and Clair to detect vulnerabilities in container images.
4. Image Signing and Content Trust
   • Uses Notary for cryptographic signing to ensure image integrity and prevent tampering.
5. Multi-Registry Replication
   • Synchronizes container images across multiple registries, including Docker Hub, AWS ECR, and Azure ACR.
6. LDAP and OAuth Authentication
   • Supports LDAP, OAuth, and Active Directory integration for enterprise environments.
7. Web-Based UI and API
   • Provides an intuitive web interface for managing repositories and a RESTful API for automation.
8. Helm Chart Repository
   • Enables storing and managing Helm charts for Kubernetes deployments.
9. Garbage Collection
   • Reclaims storage by removing untagged and unused container images.
10. Multi-Tenancy with Projects

• Organizes images into projects, allowing different teams to manage separate repositories.

---

Advantages of Using Harbor on Debian 12

• Improved Security: Built-in vulnerability scanning and image signing.
• Better Access Control: Granular permissions for teams and projects.
• Scalability: Supports multi-cloud and on-premises deployments.
• Storage Efficiency: Implements image replication and garbage collection.
• Enterprise-Ready: LDAP/OAuth integration for secure authentication.
• Kubernetes Integration: Seamlessly manages images for Kubernetes deployments.

---

Use Cases for Harbor on Debian 12

1. Private Docker Registry
   • Securely store and manage container images for internal use.
2. Cloud-Native Application Development
   • Supports DevOps pipelines with CI/CD integration.
3. Multi-Cloud & Hybrid Deployments
   • Replicate images across different cloud providers for availability.
4. Kubernetes and Helm Chart Management
   • Manage Kubernetes Helm charts alongside container images.
5. Enterprise Security & Compliance
   • Enforce image scanning, signing, and access policies.

---

Harbor vs. Other Container Registries

Feature	Harbor	Docker Hub	AWS ECR	Azure ACR
Private Registry	✅ Yes	⚠️ Limited	✅ Yes	✅ Yes
Vulnerability Scanning	✅ Yes	❌ No	✅ Yes	✅ Yes
Role-Based Access Control (RBAC)	✅ Yes	❌ No	✅ Yes	✅ Yes
Replication Support	✅ Yes	❌ No	✅ Yes	✅ Yes
Image Signing (Notary)	✅ Yes	❌ No	❌ No	✅ Yes
Helm Chart Repository	✅ Yes	❌ No	❌ No	✅ Yes

Harbor provides a feature-rich, secure alternative to Docker Hub, with enterprise-grade security and scalability.

---

Why Choose Harbor on Debian 12?

Harbor is the ideal choice for organizations, enterprises, and DevOps teams needing a secure, scalable, and highly available container image registry. It enhances security, ensures compliance, and integrates seamlessly with Kubernetes, cloud platforms, and CI/CD pipelines.

Step 1: Create a Server Instance on Shape.Host

Before installing Harbor, you need a server to host your environment. Here’s how to set up a server instance on Shape.Host:

Access Shape.Host: Log in to your Shape.Host account and go to the Cloud VPS section.

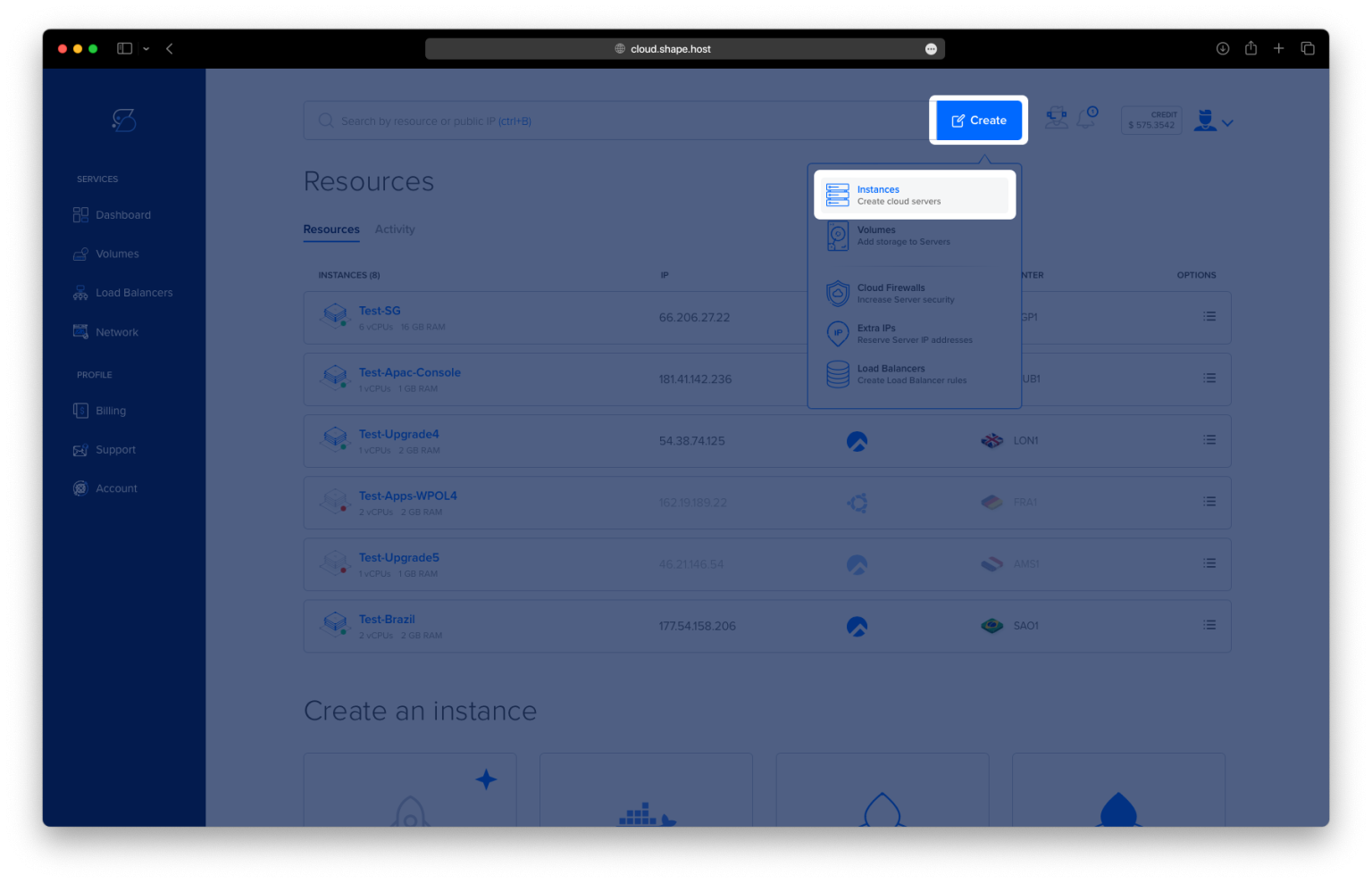

Start a New Instance: Click on “Create” and choose the server type that fits your project needs.

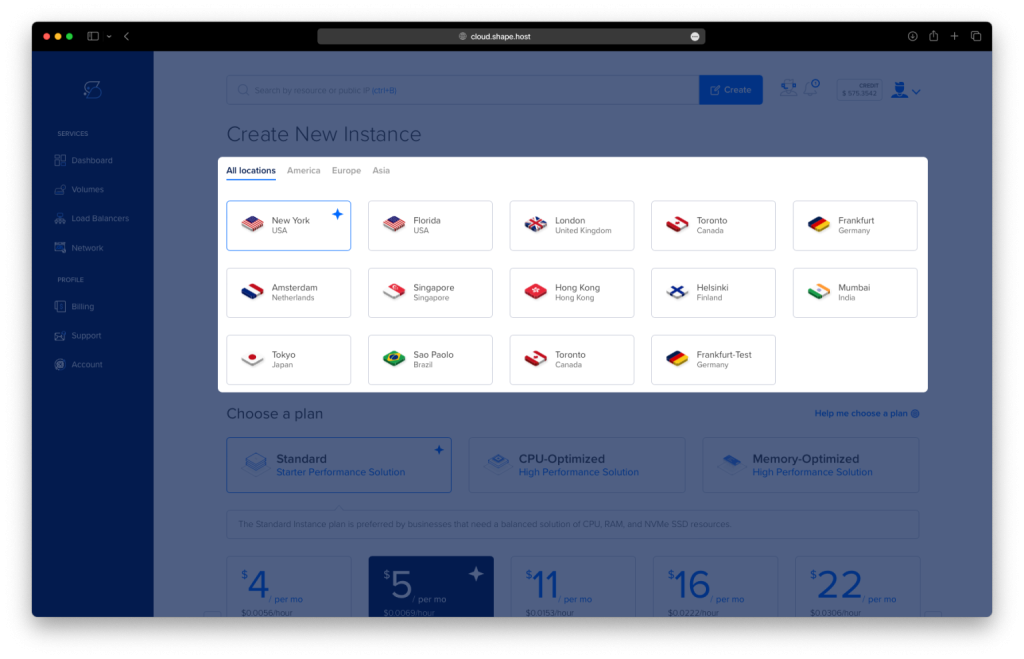

Select a Location: Pick a data center near your audience for better performance.

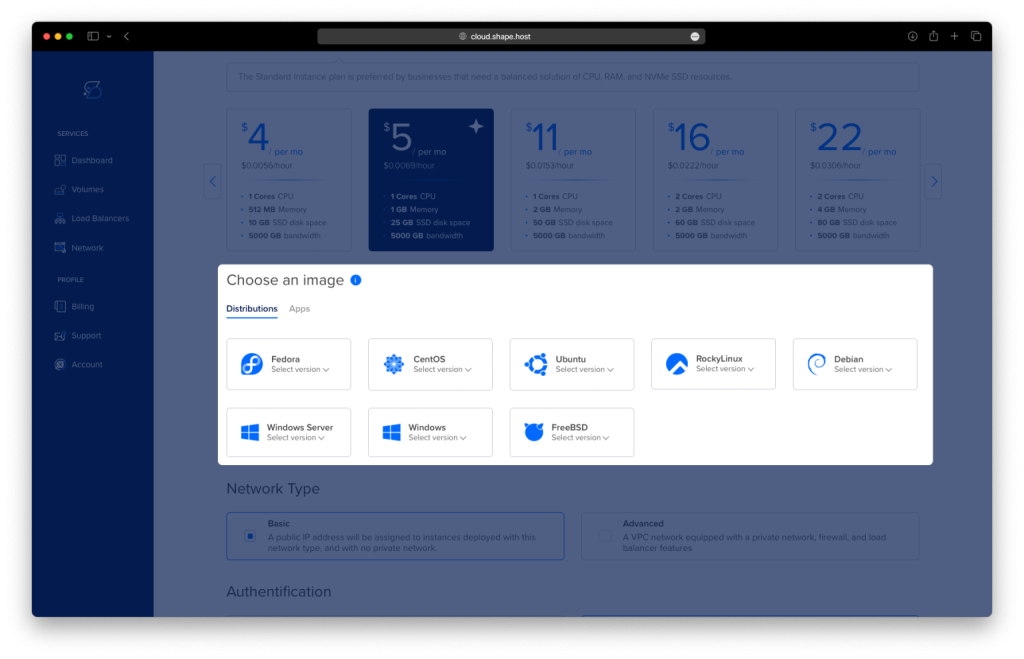

Choose a Plan: Select a hosting plan that matches your resource requirements and budget.

Set the OS: Choose Debian 12 as your operating system.

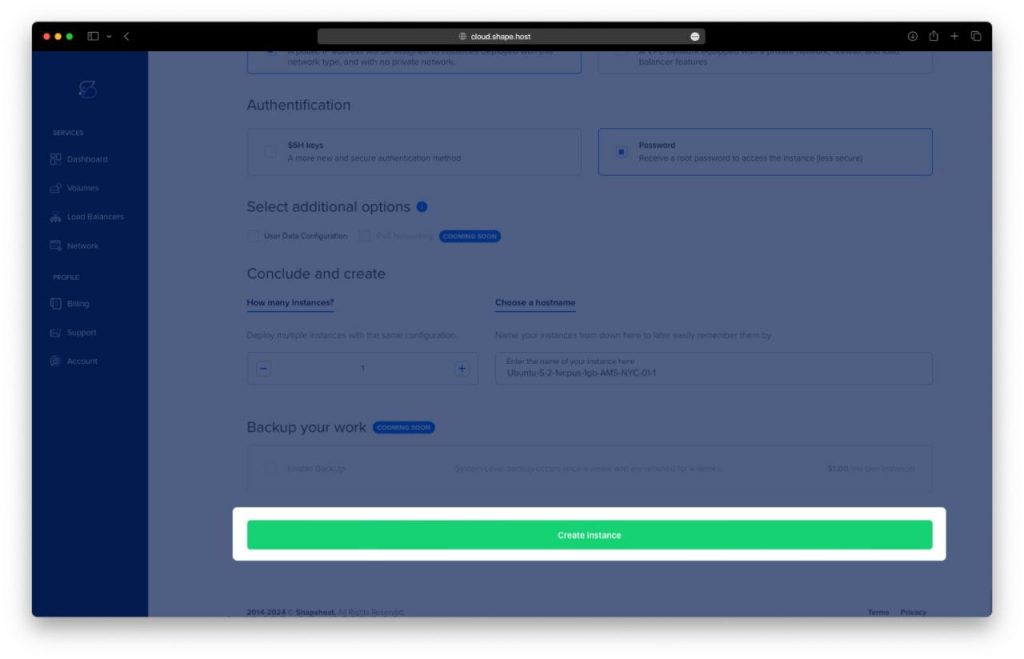

Complete the Setup: Review your settings and click “Create Instance” to launch your instance. It will be ready shortly.

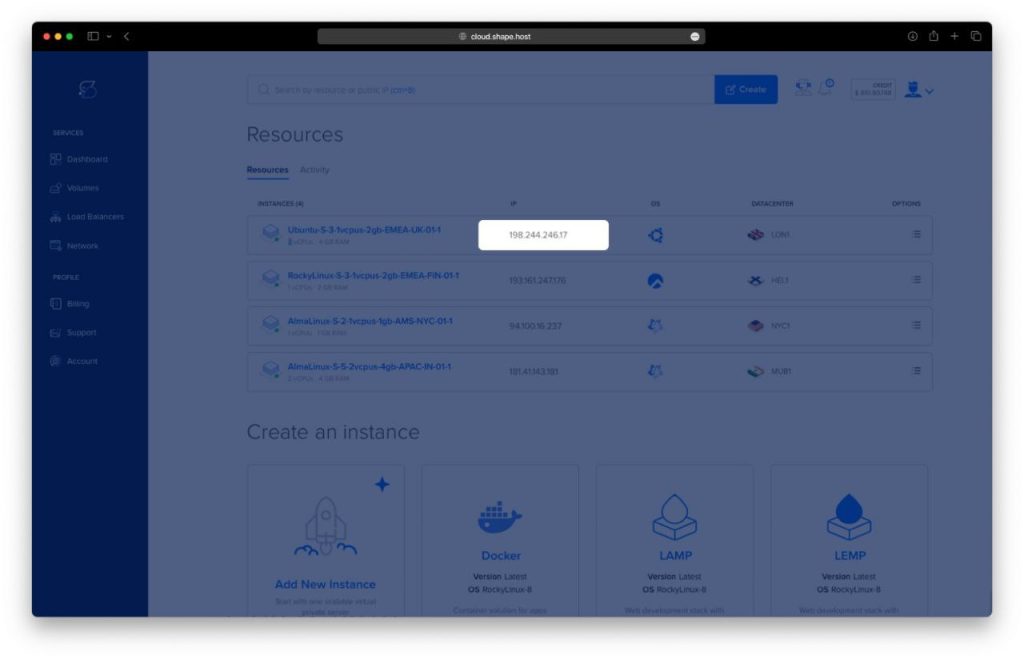

In Dashboard you will find your Instance IP

Step 2: Connect to Your Instance

Once your server is ready, you need to connect to it using SSH. Here’s how to do it:

• Linux/macOS: Open your terminal and use the following command:

  ssh root@your_server_ip

Replace your_server_ip with the server’s IP address.

• Windows: Use an SSH client like PuTTY. Enter your server’s IP address, specify the port (usually 22), and click “Open.” Log in with your username and password.

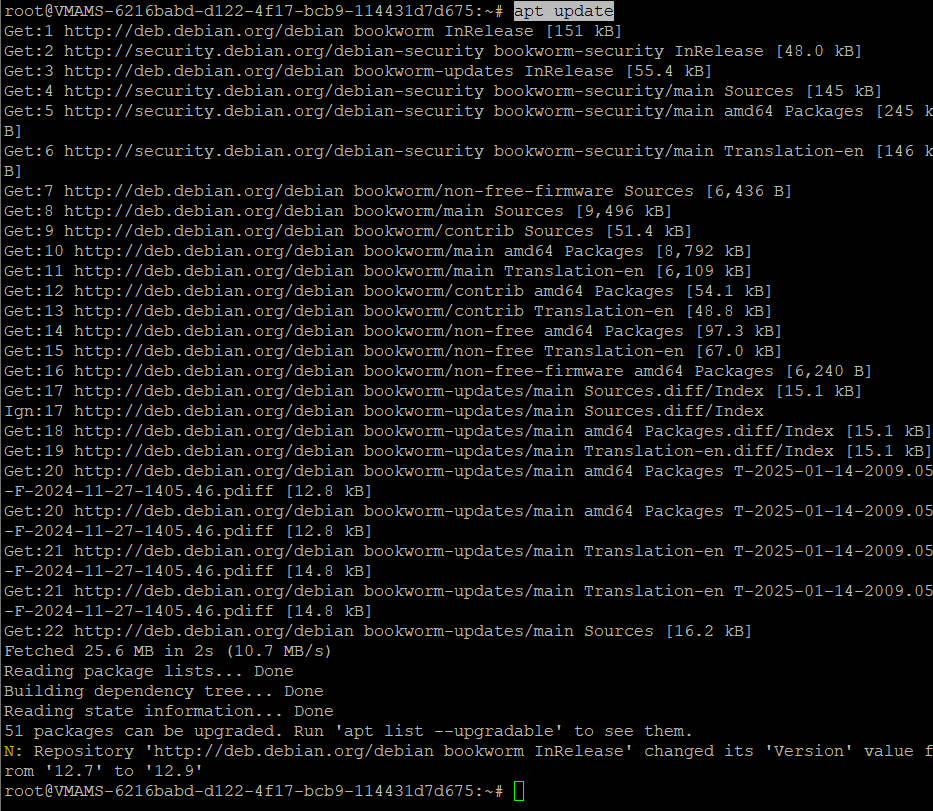

Step 3: Update the System

Before installing any software, it’s a good practice to update your system to ensure all packages are up to date. Run the following command:

apt update

Step 4: Install Docker and Docker Compose

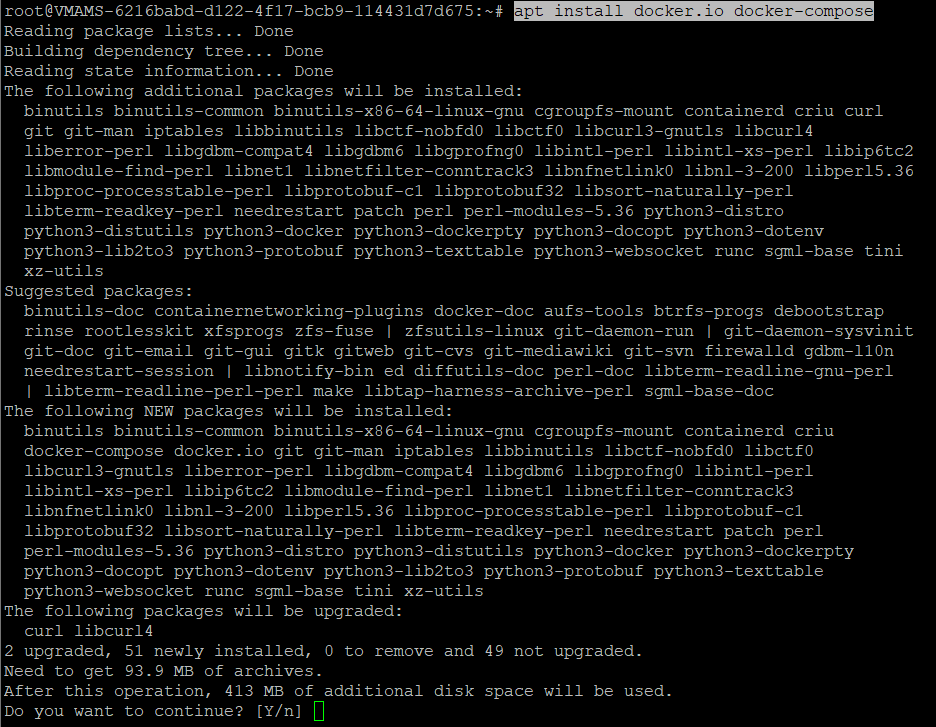

Harbor requires Docker and Docker Compose to be installed. Install them using the following commands:

apt install docker.io docker-compose -y

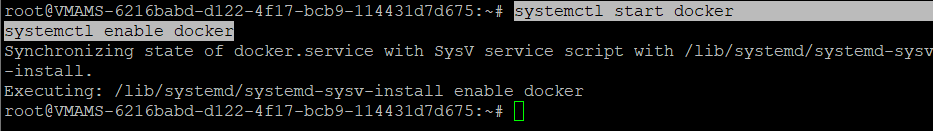

Start and enable the Docker service:

systemctl start docker
systemctl enable docker

Step 5: Install Additional Dependencies

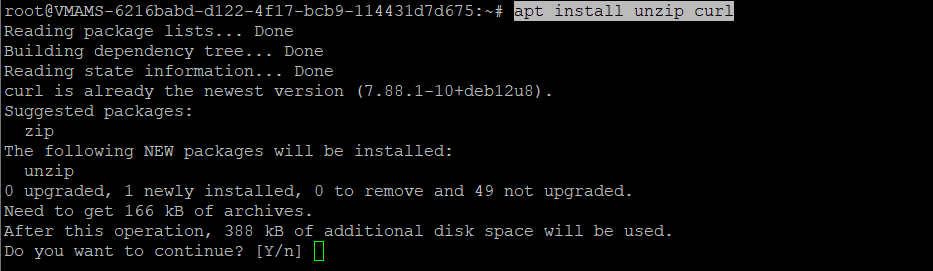

Install unzip and curl, which are required for downloading and extracting Harbor:

apt install unzip curl -y

Step 6: Download and Extract Harbor

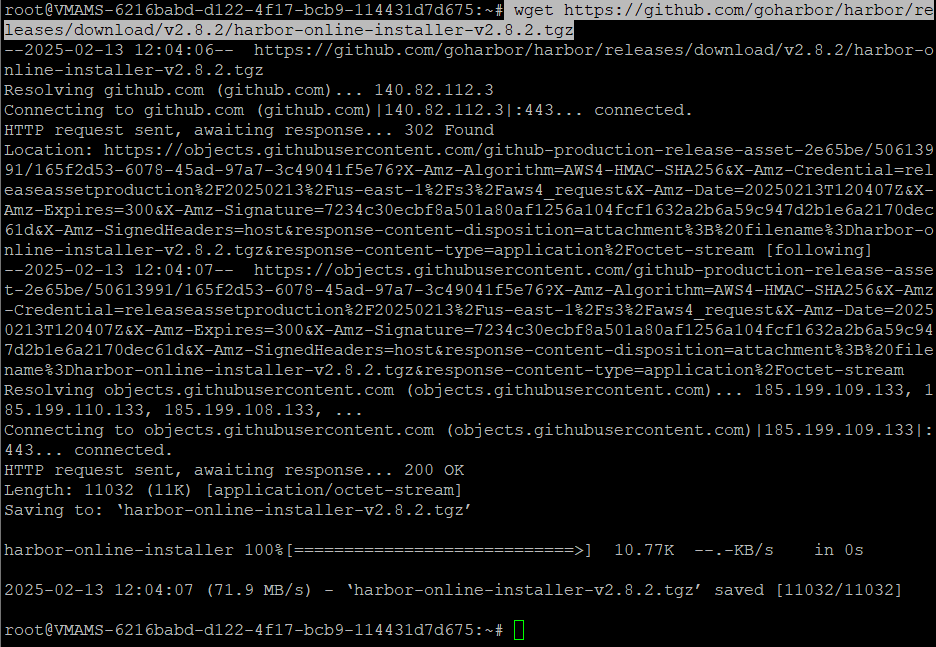

Download the latest version of Harbor from the official GitHub repository:

wget https://github.com/goharbor/harbor/releases/download/v2.8.2/harbor-online-installer-v2.8.2.tgz

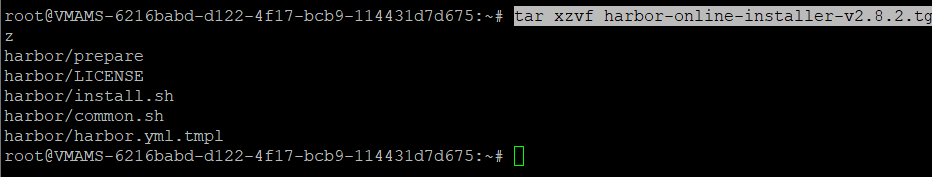

Extract the downloaded file:

tar xzvf harbor-online-installer-v2.8.2.tgz

Navigate to the extracted Harbor directory:

cd harbor

Step 7: Configure Harbor

Copy the template configuration file to harbor.yml:

cp harbor.yml.tmpl harbor.yml

Create a directory for SSL certificates:

mkdir -p /data/cert

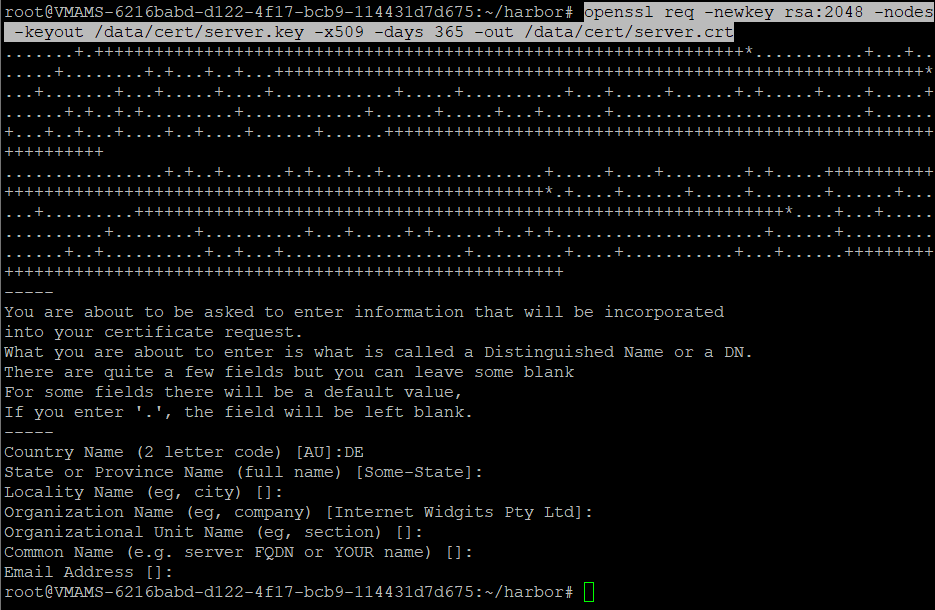

Generate a self-signed SSL certificate:

openssl req -newkey rsa:2048 -nodes -keyout /data/cert/server.key -x509 -days 365 -out /data/cert/server.crt

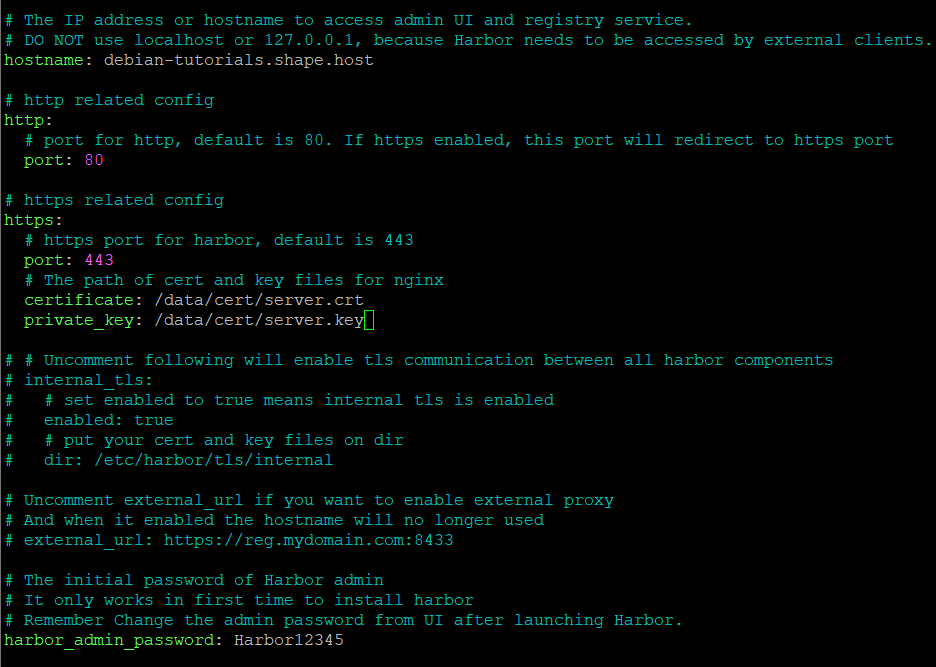

Edit the harbor.yml file to configure Harbor:

nano harbor.yml

Update the following sections in the harbor.yml file:

hostname: <your-server-ip-or-domain>

harbor_admin_password: strongpassword

https:
  port: 443
  ssl_cert: /data/cert/server.crt
  ssl_cert_key: /data/cert/server.key

Replace <your-server-ip-or-domain> with your server’s IP address or domain name, and set a strong password for the Harbor admin account.

Step 8: Install Harbor

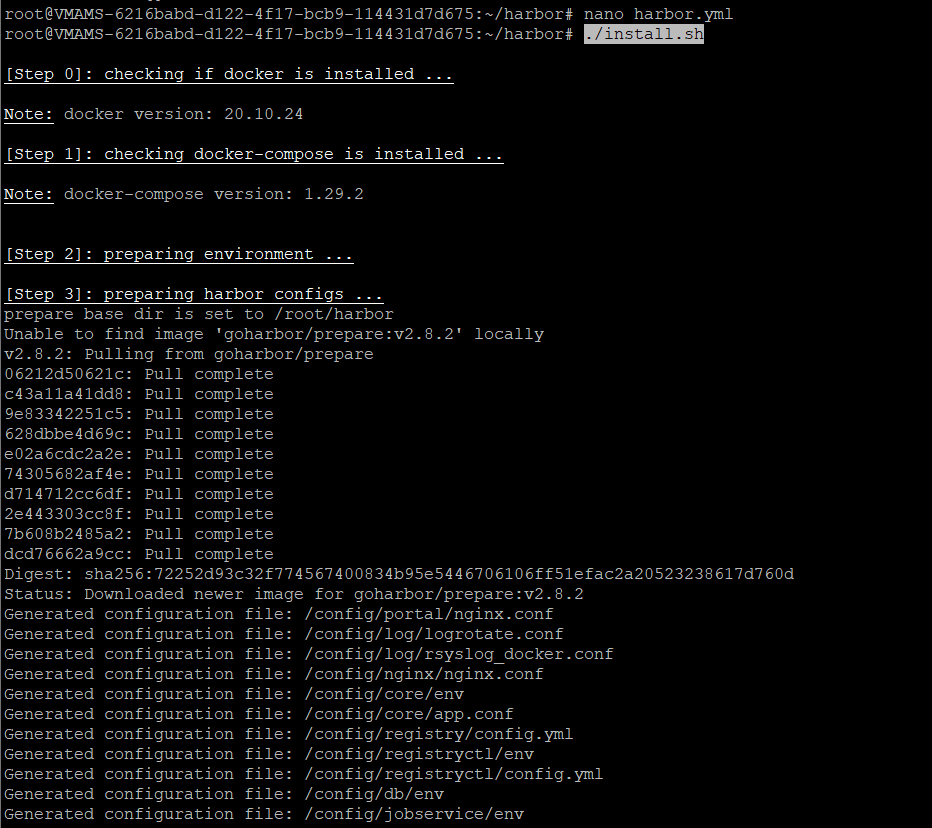

Run the installation script to set up Harbor:

./install.sh

This script will download the necessary Docker images and start the Harbor services.

Step 9: Verify the Installation

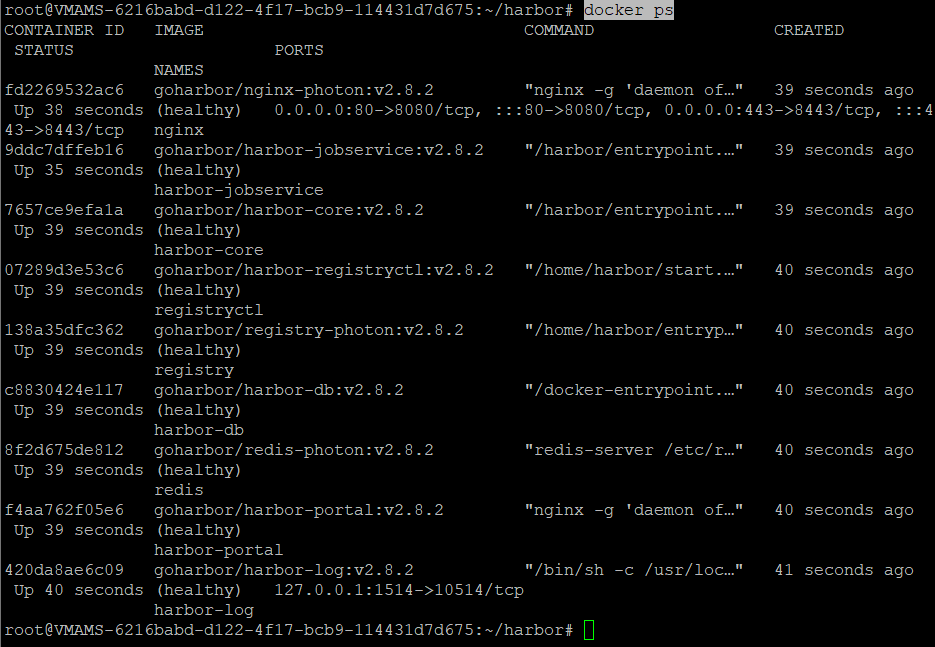

Once the installation is complete, verify that the Harbor services are running:

docker ps

You should see a list of running Docker containers related to Harbor.

Step 10: Access Harbor

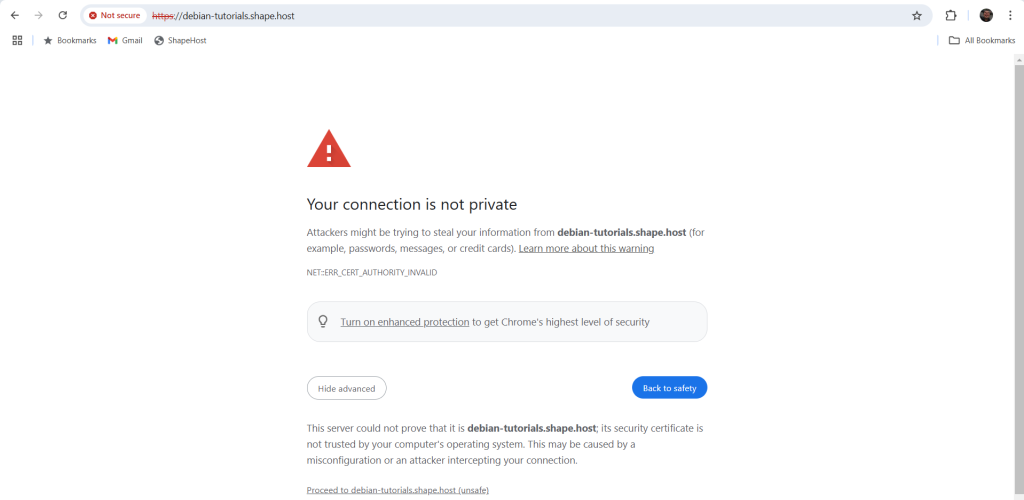

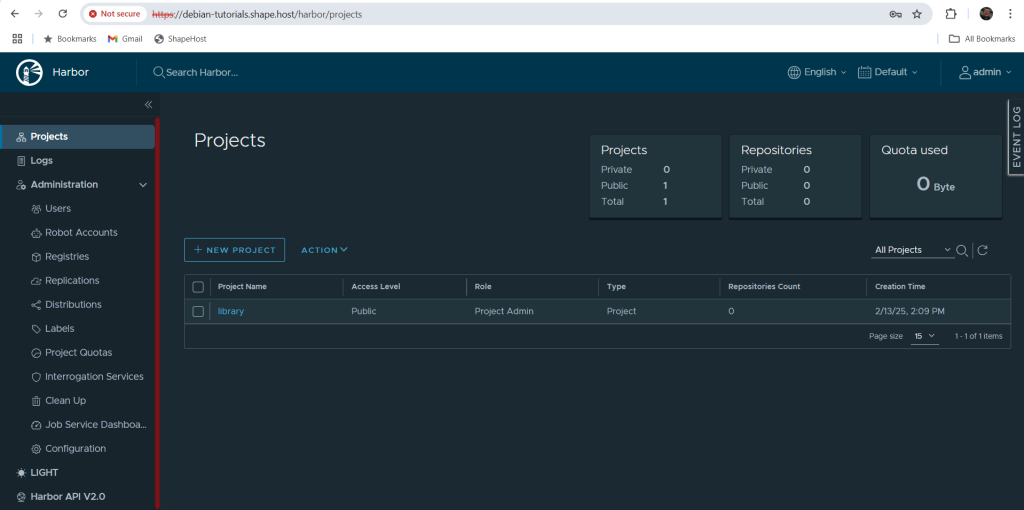

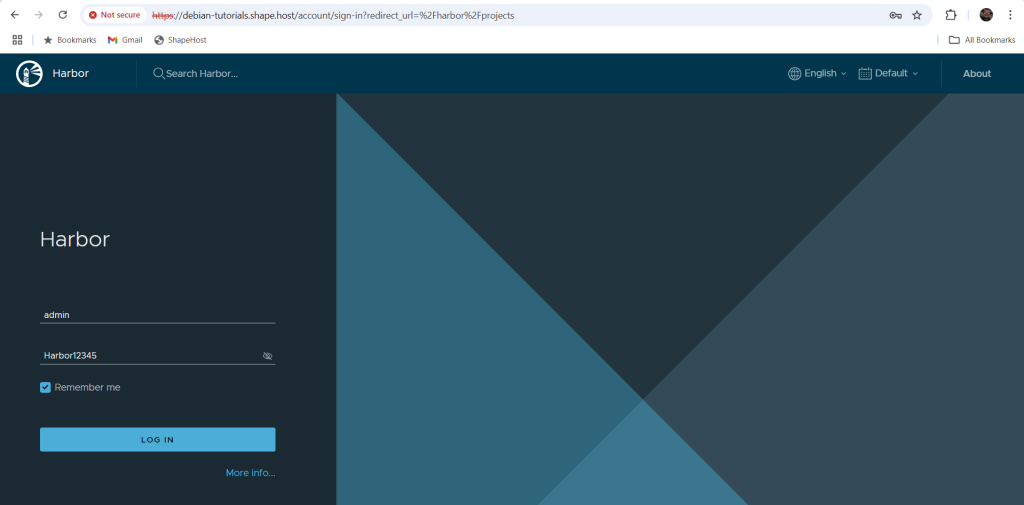

Open your web browser and navigate to https://<your-server-ip-or-domain>. You should see the Harbor login page. Log in using the admin credentials you configured in the harbor.yml file.
