How to Install LibreNMS on Ubuntu 24.04 (Nginx + PHP-FPM)

LibreNMS on Ubuntu 24.04 (Nginx + PHP-FPM)

LibreNMS is a powerful, open-source network monitoring and management platform that provides auto-discovery, alerting, performance graphing, and API integrations. It supports a wide range of devices and vendors via SNMP, making it a flexible and scalable solution for monitoring networks of any size. With its modern web interface, customizable dashboards, and strong community support, LibreNMS is one of the most popular alternatives to commercial network monitoring tools like SolarWinds and PRTG.

Running LibreNMS on Ubuntu 24.04 LTS (Noble Numbat) with Nginx and PHP-FPM ensures a secure, fast, and long-term supported environment. Ubuntu 24.04 provides systemd 255, OpenSSL 3, and up-to-date PHP 8.3 and MariaDB packages, making it an excellent foundation for a reliable monitoring stack.

Architecture Overview

Layer	Component	Role
OS	Ubuntu 24.04 LTS	Stable, secure foundation with long-term support
Web Server	Nginx + PHP-FPM	Serves the LibreNMS PHP application with fast, efficient handling
Database	MariaDB/MySQL	Stores monitoring data, configurations, and device inventory
Runtime	PHP 8.3 + Extensions	Executes LibreNMS application logic
Monitoring	SNMPD + Pollers	Collects metrics from network devices and systems
TLS	Let’s Encrypt / PKI	Provides secure HTTPS access to the LibreNMS interface

Why Use LibreNMS?

Automatic discovery – detects devices, interfaces, and services via SNMP.
Rich alerting system – email, Slack, Telegram, and webhook integrations.
Scalable – supports distributed polling for large infrastructures.
Customizable dashboards – intuitive graphs and reporting with RRDTool.
API integrations – RESTful API for automation and third-party tools.
Community-driven – regularly updated with new features and device support.

LibreNMS vs Other Monitoring Tools

Feature/Capability	LibreNMS	Zabbix	Nagios Core	SolarWinds / PRTG
License	Free, open-source	Free, open-source	Free, open-source	Paid, commercial
Auto-discovery	Yes	Partial	Limited	Yes
Dashboards	Modern web UI	Customizable	Basic web UI	Advanced
Alerting	Multi-channel	Advanced	Plugin-based	Advanced
Scalability	Distributed pollers	Distributed agents	Manual scaling	Enterprise-ready

LibreNMS stands out as a free, community-driven alternative that offers many enterprise-grade features without licensing costs.

Security & Best Practices

Run LibreNMS behind Nginx with HTTPS.
Secure MariaDB with strong passwords and backups.
Configure SNMP v3 for encrypted and authenticated polling.
Use role-based access control (RBAC) for user permissions.
Keep Ubuntu, PHP, MariaDB, and LibreNMS updated regularly.
Monitor system logs and enable Fail2Ban for brute-force protection.

Typical Use Cases

Monitoring enterprise and ISP networks across multiple vendors.
Keeping track of server performance, storage, and virtualization platforms.
Alerting on network outages, bandwidth spikes, or hardware failures.
Creating custom dashboards for IT/NOC teams.
Acting as a cost-free replacement for expensive commercial tools.

Deploying LibreNMS on Ubuntu 24.04 with Nginx and PHP-FPM gives you a secure, scalable, and enterprise-ready network monitoring platform — powerful enough for large infrastructures yet simple enough for small teams.

Step 1: Create a Server Instance on Shape.Host

Start with a clean Ubuntu 24.04 environment. Here’s how to set one up at Shape.Host:

Log into your Shape.Host dashboard.

Click Create → Instance.

Choose a data center location close to your users for low latency.

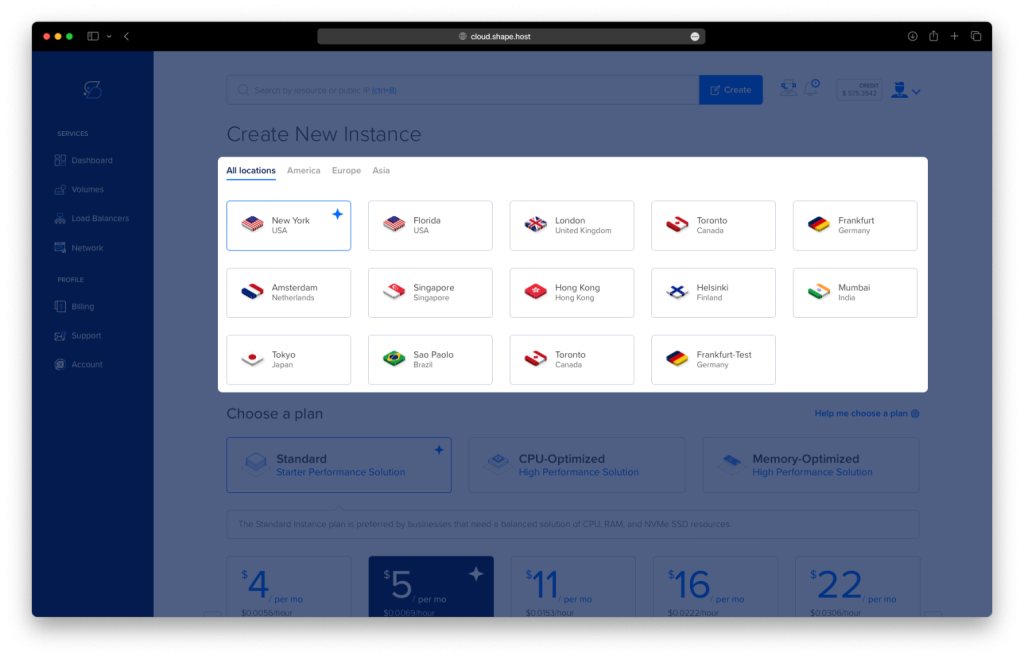

Shape.host instance form with the data center location selector highlighted.

Select a plan with at least 4 GB RAM, 2 vCPUs, and 40 GB SSD storage (LibreNMS needs extra memory).

Under operating systems, select Ubuntu 24.04 (64-bit).

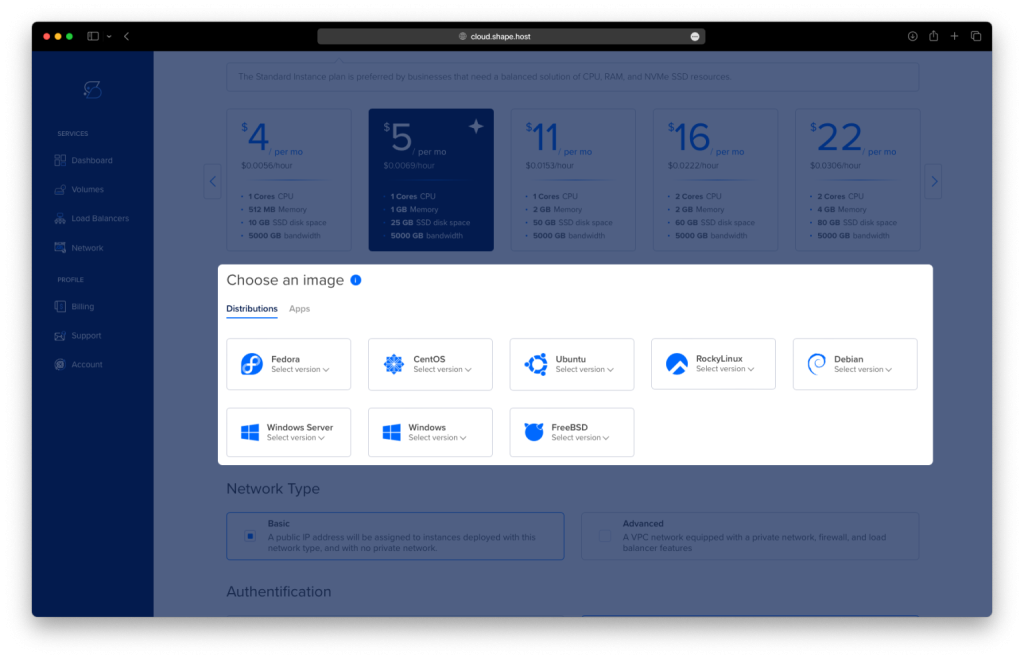

Shape.host instance form with the operating system image selector highlighted.

Click Create Instance.

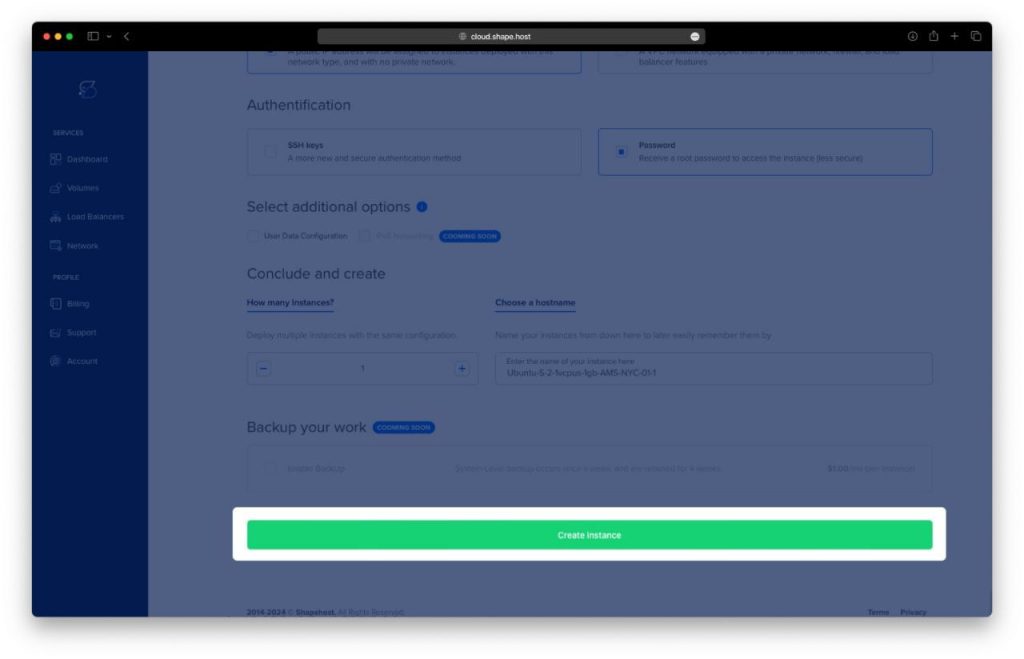

Shape.host instance form with the Create Instance button highlighted.

Once deployed, copy the instance’s IP address from the Resources panel.

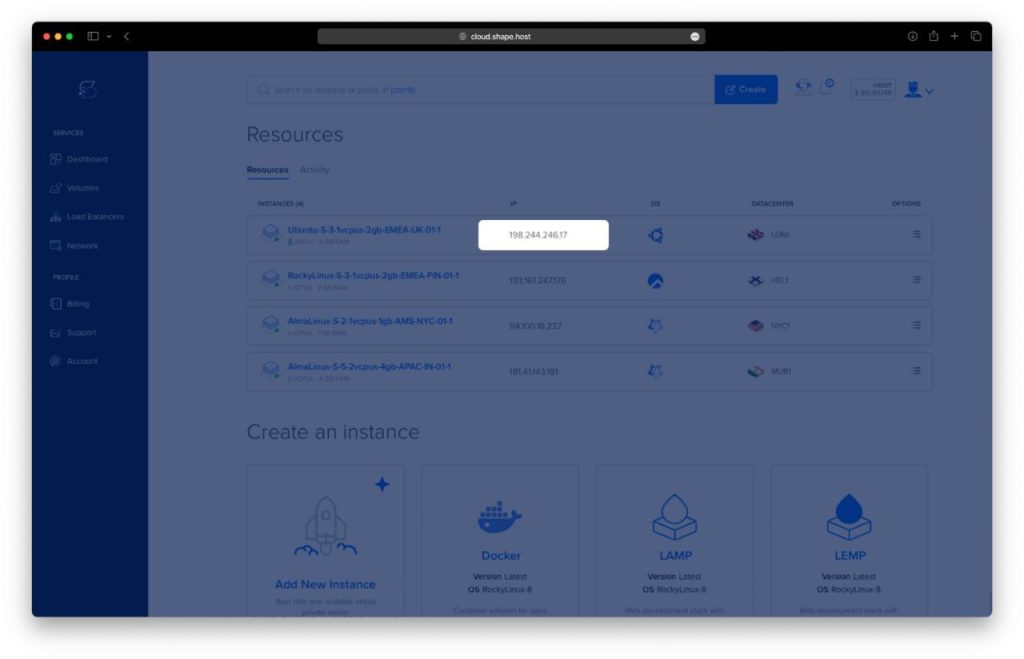

Shape.host Resources dashboard with the server IP address highlighted.

Step 2: Connect to Your Server

Linux/macOS: ssh root@your_server_ip (Connects directly as root over SSH.)
Windows:
Use PuTTY, enter your server’s IP, choose SSH, and log in with the credentials provided.

Step 3: Install Dependencies

Update and upgrade your system

apt update
apt upgrade

Updates package lists and upgrades all installed packages.

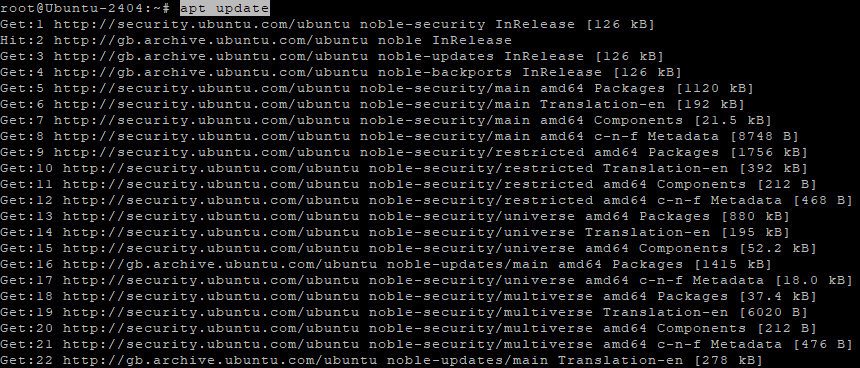

Terminal showing APT package management commands and output.

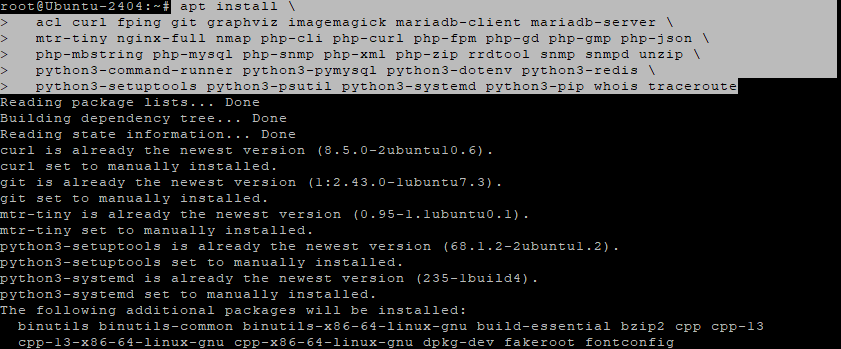

Install required packages

apt install acl curl fping git graphviz imagemagick mariadb-client mariadb-server \
mtr-tiny nginx-full nmap php-cli php-curl php-fpm php-gd php-gmp php-json \
php-mbstring php-mysql php-snmp php-xml php-zip rrdtool snmp snmpd unzip \
python3-command-runner python3-pymysql python3-dotenv python3-redis \
python3-setuptools python3-psutil python3-systemd python3-pip whois traceroute

Installs LibreNMS dependencies: databases, PHP with extensions, SNMP tools, monitoring utilities, and Nginx web server.

Step 4: Create LibreNMS User and Download Code

useradd librenms -d /opt/librenms -M -r -s "$(which bash)"

Creates a system user librenms with home directory /opt/librenms.

cd /opt
git clone https://github.com/librenms/librenms.git
chown -R librenms:librenms /opt/librenms
chmod 771 /opt/librenms

Downloads LibreNMS from GitHub and sets ownership/permissions.

Set ACLs for writable directories

setfacl -d -m g::rwx /opt/librenms/{rrd,logs,bootstrap/cache,storage}
setfacl -R -m g::rwx /opt/librenms/{rrd,logs,bootstrap/cache,storage}

Ensures group write access persists for LibreNMS’s storage directories.

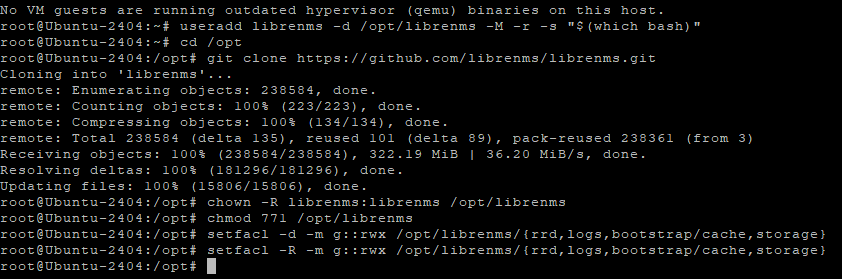

Terminal showing Linux user account management commands.

Step 5: Configure PHP

su - librenms
./scripts/composer_wrapper.php install --no-dev
exit

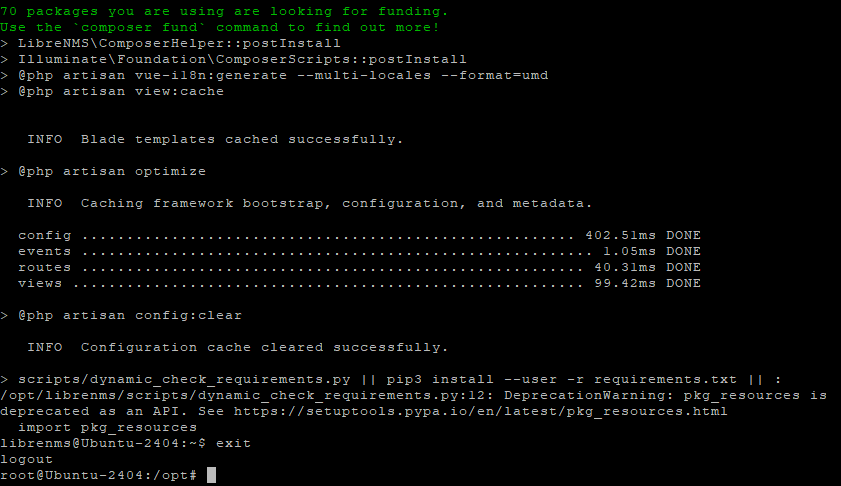

Switches to the LibreNMS user.

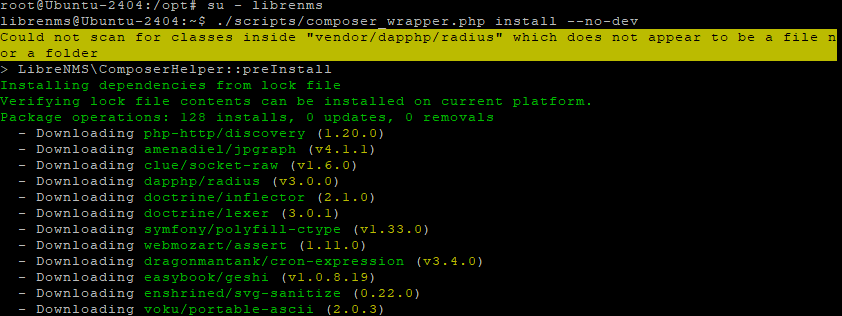

Terminal showing su commands or output during Configure PHP.

Terminal showing Python environment or package installation output.

sed -i 's|^;*date.timezone =.*|date.timezone = Europe/Bucharest|' /etc/php/8.3/fpm/php.ini
sed -i 's|^;*date.timezone =.*|date.timezone = Europe/Bucharest|' /etc/php/8.3/cli/php.ini
timedatectl set-timezone Europe/Bucharest

Sets the PHP timezone and system timezone.

Terminal showing PHP configuration settings.

Step 6: Configure MariaDB

Edit configuration:

nano /etc/mysql/mariadb.conf.d/50-server.cnf

Add under [mysqld]:

innodb_file_per_table=1
lower_case_table_names=0

MariaDB configuration excerpt with network binding settings.

Then:

systemctl enable mariadb
systemctl restart mariadb

Applies configuration changes and restarts MariaDB.

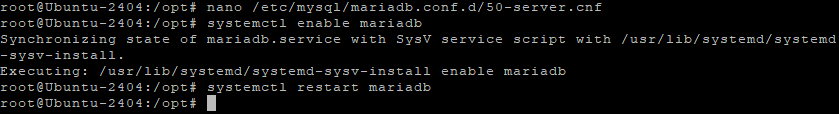

Terminal showing systemd service management commands or output.

Create database and user

mysql -u root <<'SQL'
CREATE DATABASE librenms CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;
CREATE USER 'librenms'@'localhost' IDENTIFIED BY 'StrongPassword123!';
GRANT ALL PRIVILEGES ON librenms.* TO 'librenms'@'localhost';
FLUSH PRIVILEGES;
SQL

Creates the librenms database and user.

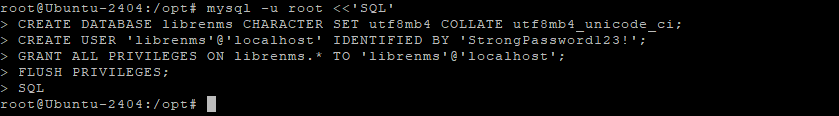

Terminal showing SQL database and user configuration commands.

Step 7: Configure PHP-FPM

Copy and edit the pool file:

cp /etc/php/8.3/fpm/pool.d/www.conf /etc/php/8.3/fpm/pool.d/librenms.conf

Terminal showing cp commands or output during Configure PHP-FPM.

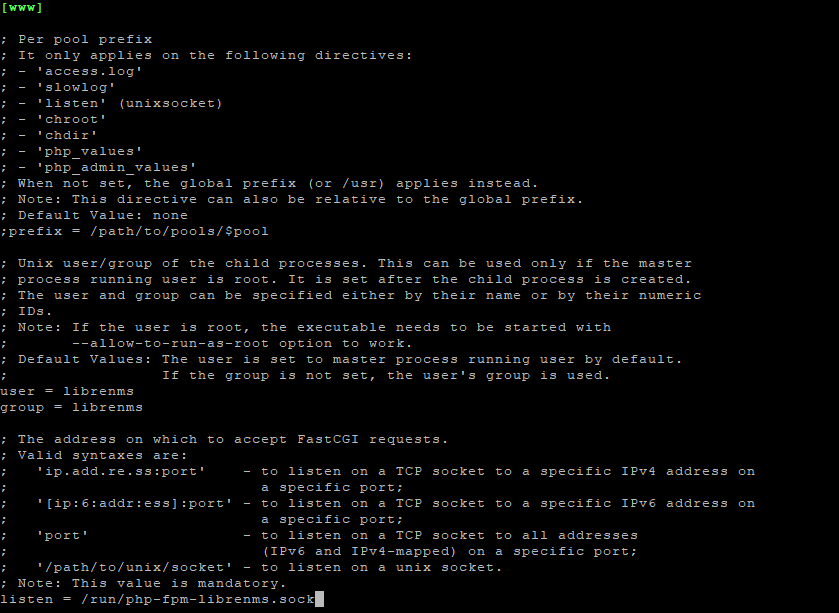

nano /etc/php/8.3/fpm/pool.d/librenms.conf

Change:

[www]          → [librenms]
user = librenms
group = librenms
listen = /run/php-fpm-librenms.sock

Restart PHP-FPM:

systemctl restart php8.3-fpm

Step 8: Configure Nginx

Create site config:

nano /etc/nginx/conf.d/librenms.conf

Add:

server {
    listen 80;
    server_name librenms.example.com;
    root  /opt/librenms/html;
    index index.php;

    charset utf-8;
    gzip on;
    gzip_types text/css application/javascript text/javascript application/x-javascript image/svg+xml text/plain text/xsd text/xsl text/xml image/x-icon;

    location / {
        try_files $uri $uri/ /index.php?$query_string;
    }

    location ~ [^/]\.php(/|$) {
        fastcgi_pass unix:/run/php-fpm-librenms.sock;
        fastcgi_split_path_info ^(.+\.php)(/.+)$;
        include fastcgi.conf;
    }

    location ~ /\.(?!well-known).* {
        deny all;
    }
}

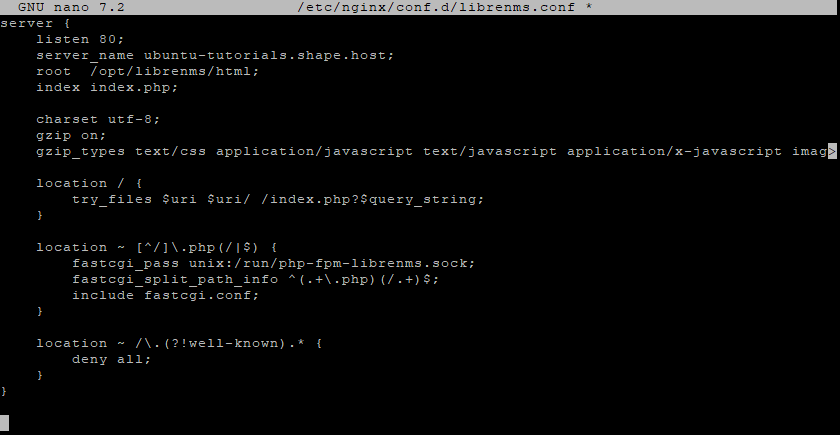

Terminal showing the GNU nano editor and configuration text.

Remove default site and restart:

rm -f /etc/nginx/sites-enabled/default /etc/nginx/sites-available/default 2>/dev/null || true
systemctl restart nginx
systemctl restart php8.3-fpm

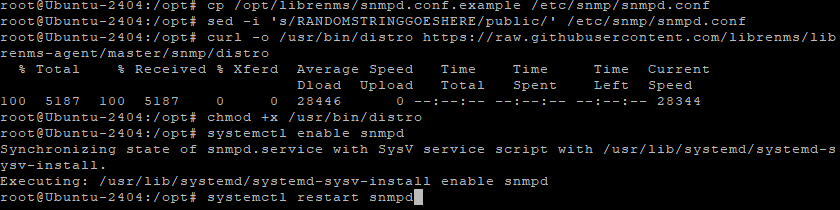

Step 9: Configure SNMP

cp /opt/librenms/snmpd.conf.example /etc/snmp/snmpd.conf
sed -i 's/RANDOMSTRINGGOESHERE/public/' /etc/snmp/snmpd.conf
curl -o /usr/bin/distro https://raw.githubusercontent.com/librenms/librenms-agent/master/snmp/distro
chmod +x /usr/bin/distro
systemctl enable snmpd
systemctl restart snmpd

Configures SNMP and installs LibreNMS agent script.

Step 10: Final LibreNMS Setup

Enable useful tools:

ln -s /opt/librenms/lnms /usr/bin/lnms
cp /opt/librenms/misc/lnms-completion.bash /etc/bash_completion.d/
cp /opt/librenms/dist/librenms.cron /etc/cron.d/librenms
cp /opt/librenms/dist/librenms-scheduler.service /opt/librenms/dist/librenms-scheduler.timer /etc/systemd/system/
systemctl enable librenms-scheduler.timer
systemctl start librenms-scheduler.timer
cp /opt/librenms/misc/librenms.logrotate /etc/logrotate.d/librenms

Adds CLI tools, autocompletion, cron jobs, systemd scheduler, and log rotation.

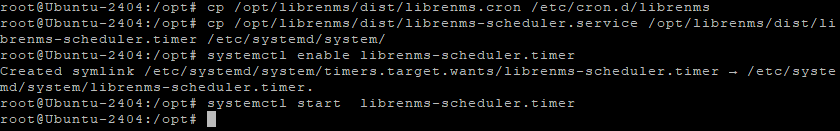

Terminal showing cp commands or output during Final LibreNMS Setup.

Step 11: Enable SSL with Certbot

apt install certbot python3-certbot-nginx
certbot --nginx -d ubuntu-tutorials.shape.host

Installs a free Let’s Encrypt SSL certificate for your domain.

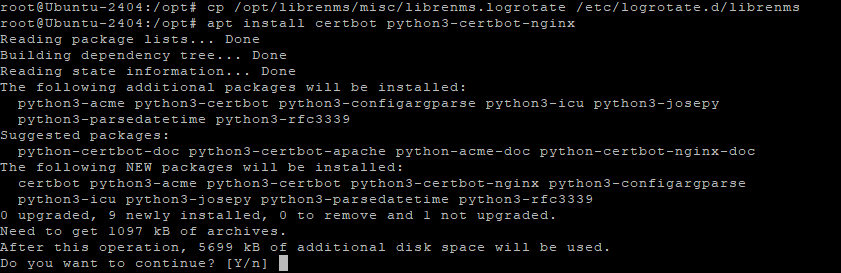

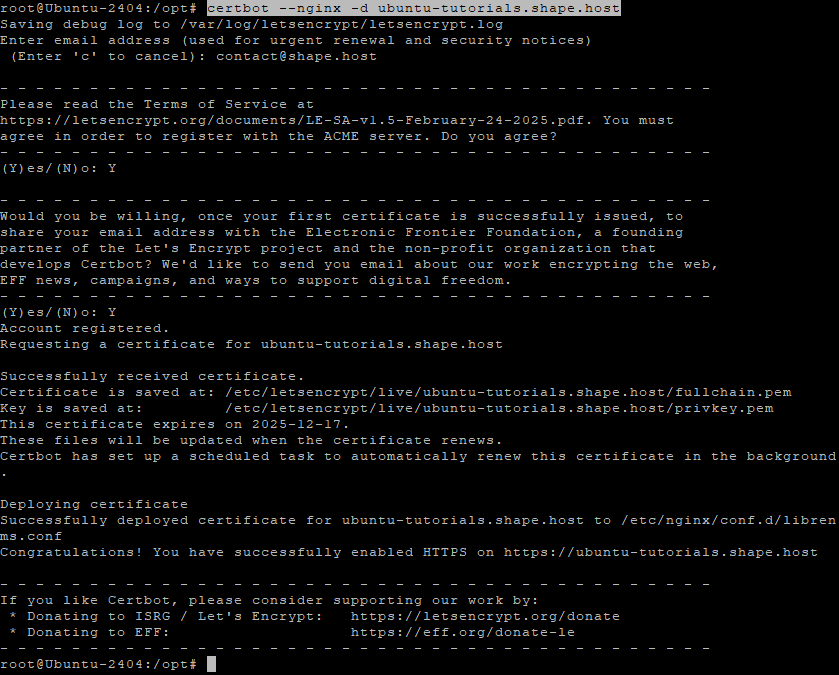

Terminal showing Certbot certificate commands and messages.

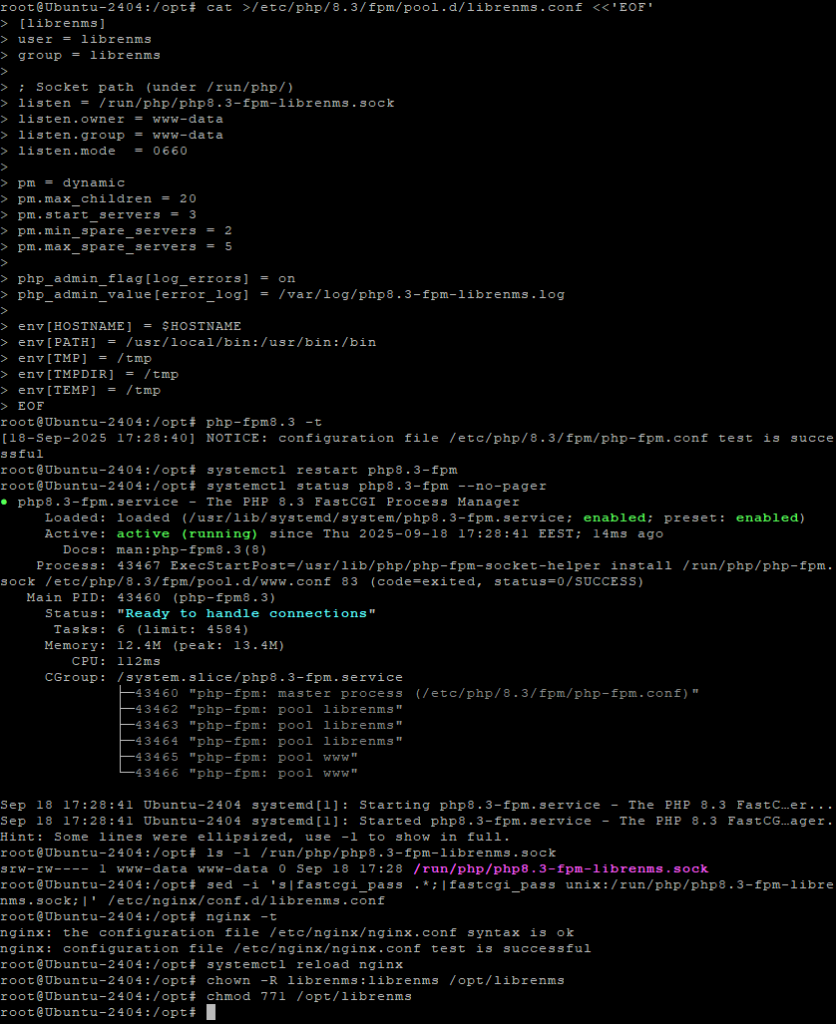

Step 12: Configure Dedicated PHP-FPM Pool

cat >/etc/php/8.3/fpm/pool.d/librenms.conf <<'EOF'
[librenms]
user = librenms
group = librenms

; Socket path (under /run/php/)
listen = /run/php/php8.3-fpm-librenms.sock
listen.owner = www-data
listen.group = www-data
listen.mode  = 0660

pm = dynamic
pm.max_children = 20
pm.start_servers = 3
pm.min_spare_servers = 2
pm.max_spare_servers = 5

php_admin_flag[log_errors] = on
php_admin_value[error_log] = /var/log/php8.3-fpm-librenms.log

env[HOSTNAME] = $HOSTNAME
env[PATH] = /usr/local/bin:/usr/bin:/bin
env[TMP] = /tmp
env[TMPDIR] = /tmp
env[TEMP] = /tmp
EOF

Test configuration and restart:

php-fpm8.3 -t
systemctl restart php8.3-fpm
systemctl status php8.3-fpm --no-pager
ls -l /run/php/php8.3-fpm-librenms.sock

Update Nginx to use new socket:

sed -i 's|fastcgi_pass .*;|fastcgi_pass unix:/run/php/php8.3-fpm-librenms.sock;|' /etc/nginx/conf.d/librenms.conf
nginx -t
systemctl reload nginx

Fix permissions again:

chown -R librenms:librenms /opt/librenms
chmod 771 /opt/librenms

Step 13: Access Web Installer

Open your browser and go to:

http://librenms.example.com/install

Follow the installation wizard to complete setup.

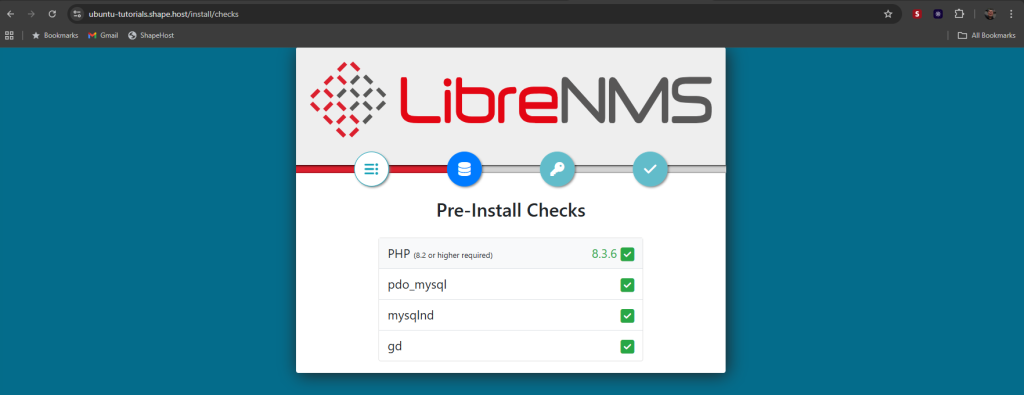

Pre-Install Checks – The installer verifies your PHP version and required extensions. All checks must show green before continuing.

LibreNMS pre-installation requirements checklist.

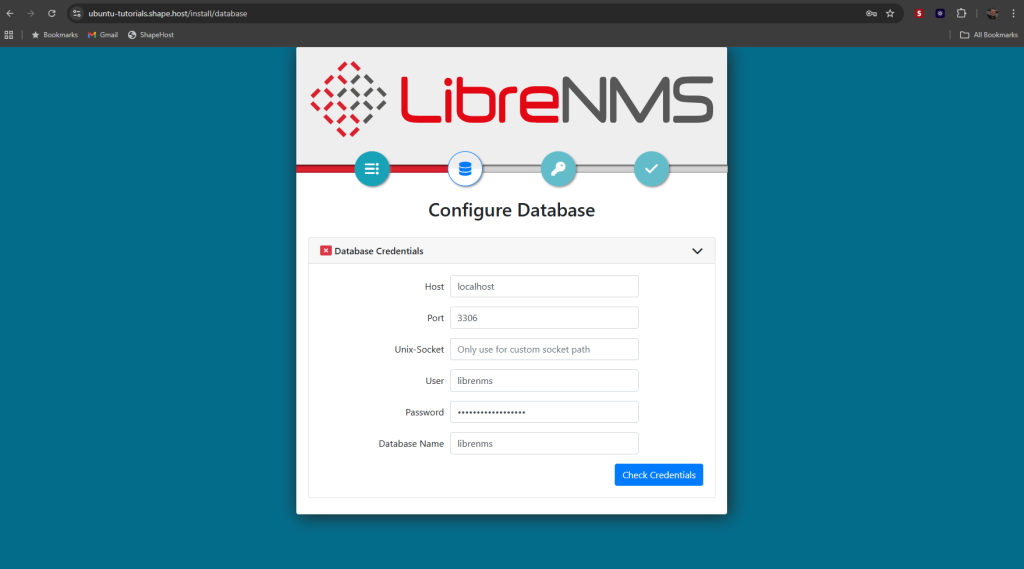

Database Configuration – Enter your database host, port (default 3306), username, password, and database name, then validate the credentials.

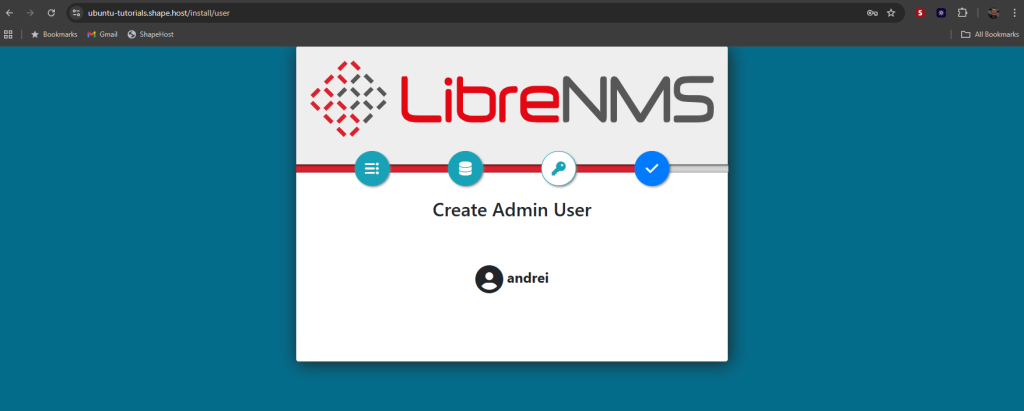

Create Admin User – Set up an administrator account with username, email, and password.

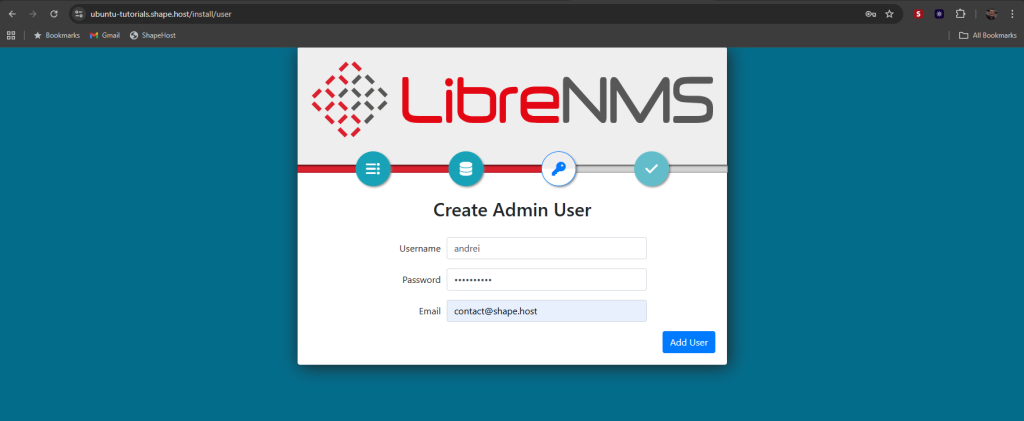

LibreNMS administrator account creation form.

LibreNMS confirmation that an administrator account was created.

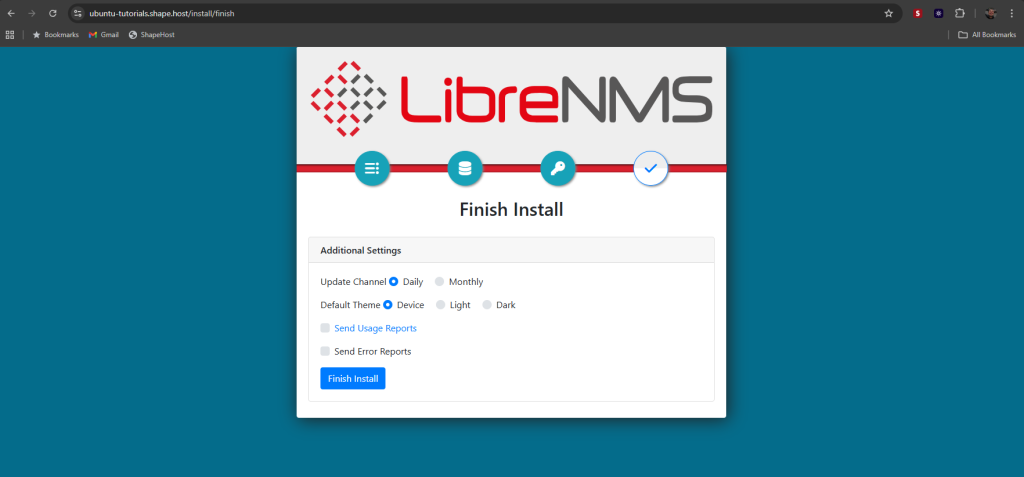

Finish Install – Choose update frequency, select a default theme, and finalize the setup.

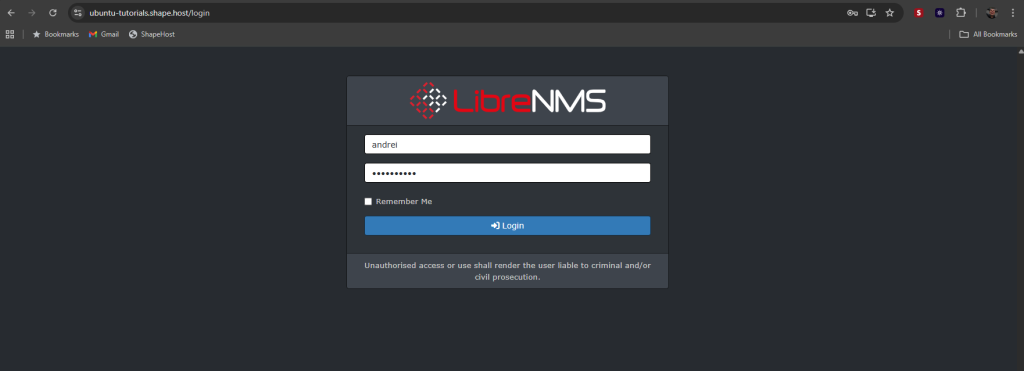

Once completed, you can log in with your admin credentials and begin using LibreNMS.

http://librenms.example.com/

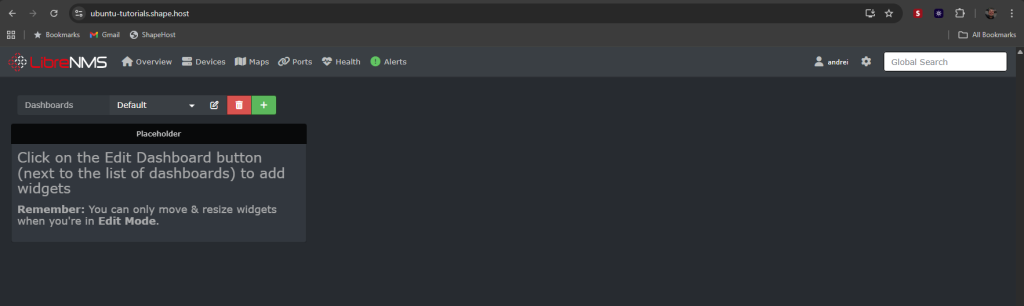

LibreNMS empty dashboard with instructions for adding widgets.

You have installed LibreNMS on Ubuntu 24.04 with Nginx and PHP-FPM. Your system is configured with MariaDB, SNMP, SSL, cron jobs, and PHP-FPM pools for performance.
