What is OpenLDAP?

OpenLDAP is an open-source implementation of the Lightweight Directory Access Protocol (LDAP). It provides a hierarchical, centralized directory service for managing and querying user accounts, groups, roles, and other structured data.

OpenLDAP is widely used for:

  • Centralized authentication and authorization
  • Directory-based configuration and access control
  • Identity and account management across multiple systems
  • Integration with Linux, Windows, and third-party applications

Why Use OpenLDAP on Debian 12?

Debian 12 “Bookworm” is known for its stability, security, and long-term support, making it a reliable choice for deploying OpenLDAP in production environments.

Key benefits of using OpenLDAP on Debian 12:

  • Available via official APT repositories with OpenLDAP 2.5+
  • Systemd-based service management and improved logging
  • Integration with PAM, NSS, Kerberos, and SSSD
  • Full support for IPv6, TLS encryption, and modern password hashing
  • Regular security updates and package stability from Debian maintainers

Core Components in an OpenLDAP Setup

  • slapd – The main OpenLDAP directory server daemon
  • ldap-utils – A set of command-line tools for managing and querying the LDAP directory
  • LDIF files – Used to define and load entries and schemas
  • Schemas – Define structure for entries (e.g., person, groupOfNames, inetOrgPerson)
  • Access Control Lists (ACLs) – Enforce permissions at the entry or attribute level
  • TLS – Provides encrypted communication using SSL certificates

Typical Use Cases

  • Managing user logins for multiple Linux servers from a central source
  • Authenticating web applications or internal tools via LDAP
  • Hosting a shared company-wide address book
  • Integrating with email servers, Samba, or FTP servers for unified access
  • Supporting compliance and audit needs for identity control

Key Features of OpenLDAP on Debian 12

FeatureDescription
Directory StructureHierarchical and searchable (e.g., dc=company,dc=com)
Secure CommunicationSupports TLS/SSL and SASL authentication
Flexible SchemasExtend or customize object classes and attributes
Fine-Grained Access ControlACLs allow per-user or per-group permissions
ReplicationMulti-master or read-only replication for high availability
Integration ReadyWorks with PAM, SSSD, sudo, Samba, Kerberos, and more

Security Considerations

  • Use StartTLS or LDAPS to encrypt directory traffic
  • Enforce strong password hashing (e.g., SSHA, bcrypt)
  • Restrict anonymous access and disable unused bind methods
  • Harden access via ACLs, limiting read/write scope by user/group
  • Use firewalld or UFW to restrict access to LDAP ports (389/636)
  • Regularly monitor logs and bind activity with journalctl or custom syslog configurations

Administrative Tools and Interfaces

  • ldapsearch / ldapadd / ldapmodify / ldapdelete – CLI tools for managing directory entries
  • phpLDAPadmin – Web-based GUI (optional, lightweight)
  • LDAP Account Manager (LAM) – Advanced web interface for user/group management
  • SSSD + NSS/PAM – For integrating OpenLDAP authentication into Linux login systems

Debian 12 Configuration Notes

  • Debian 12 uses the dynamic runtime configuration model (cn=config) instead of the older static slapd.conf
  • Configuration is managed using ldapmodify or slapadd with LDIF format
  • You can reconfigure the server interactively using dpkg-reconfigure slapd
  • Default database backend is MDB (Memory-Mapped Database) for performance and stability

Common Directory Layout

For a domain like example.org, the structure would be:

  • Base DN: dc=example,dc=org
  • Users OU: ou=People,dc=example,dc=org
  • Groups OU: ou=Groups,dc=example,dc=org
  • Admin DN: cn=admin,dc=example,dc=org (bind user)

Deploying OpenLDAP on Debian 12 provides a robust, scalable, and secure directory service for managing user identities and access control across your infrastructure. Debian’s conservative update policies, paired with OpenLDAP’s flexibility, make this combination highly suitable for enterprise-grade and long-term deployments.

Whether you’re implementing centralized logins, integrating authentication across multiple systems, or managing users in a mixed environment, OpenLDAP on Debian 12 offers the tools and stability required.

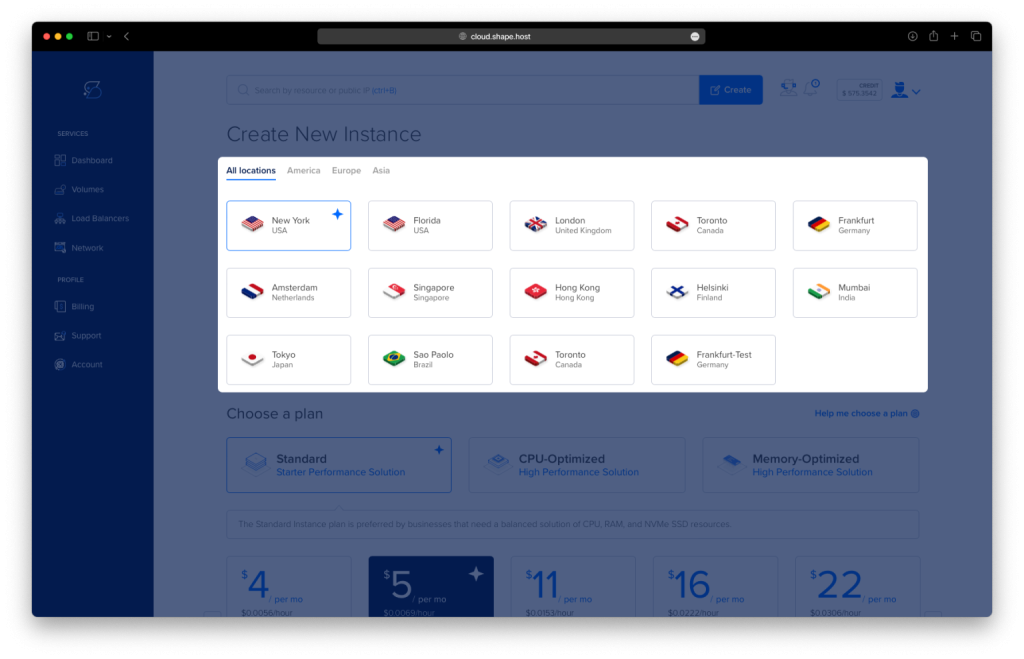

🔹 Create a Server Instance on Shape.Host

Before installation, provision a clean Debian 12 VPS:

Go to https://shape.host and log in.

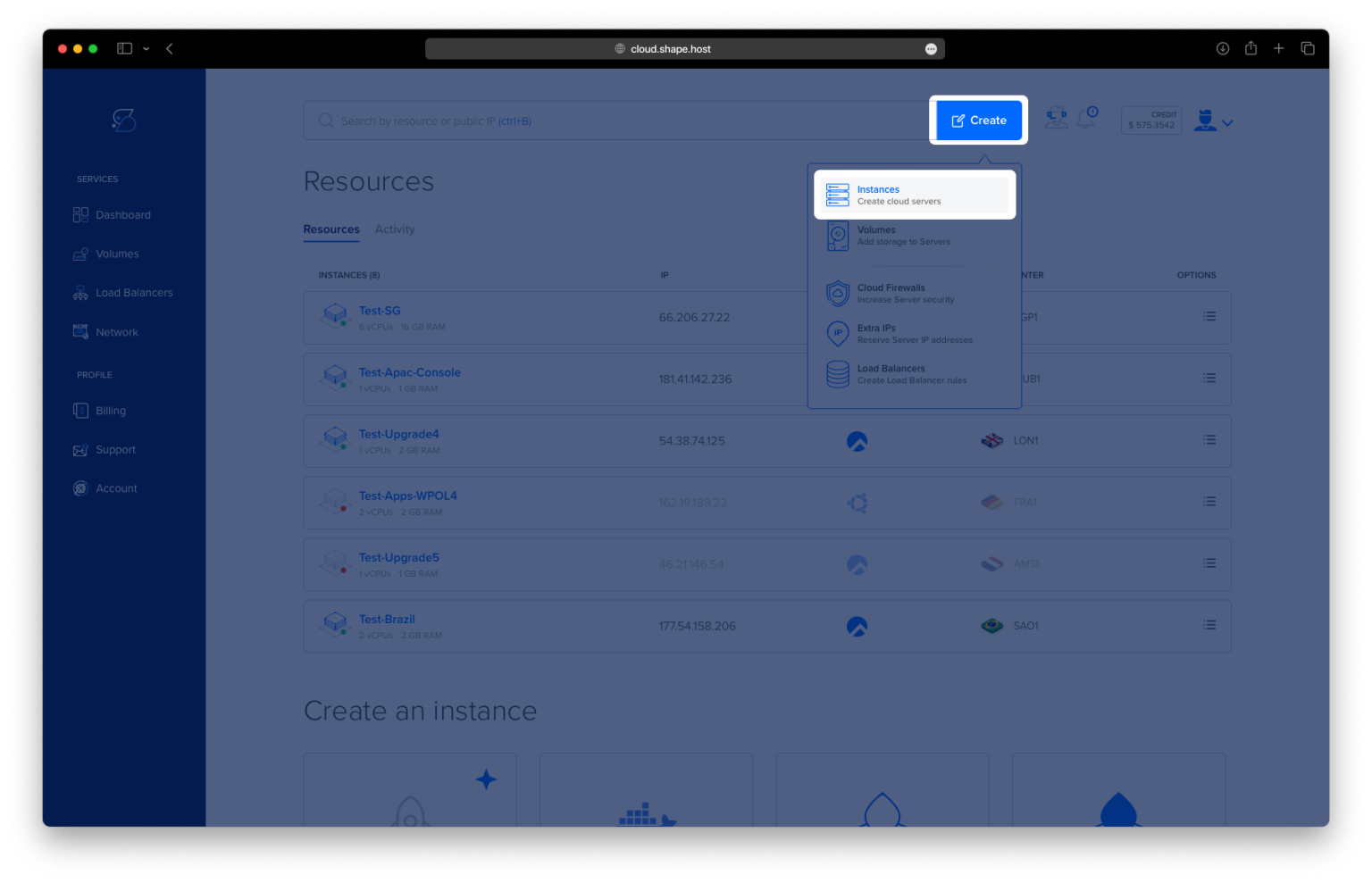

Click “Create”, then choose “Instance”.

Set:

Location: your preferred region.

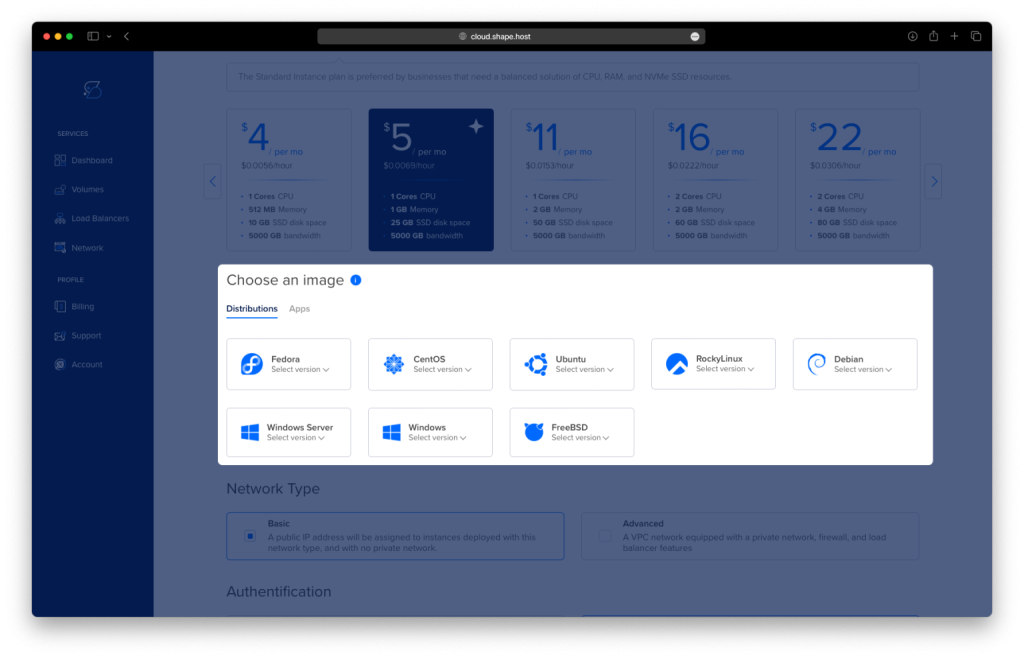

OS: Debian 12 (64-bit)

Plan: at least 2 CPUs, 2 GB RAM, 20 GB SSD

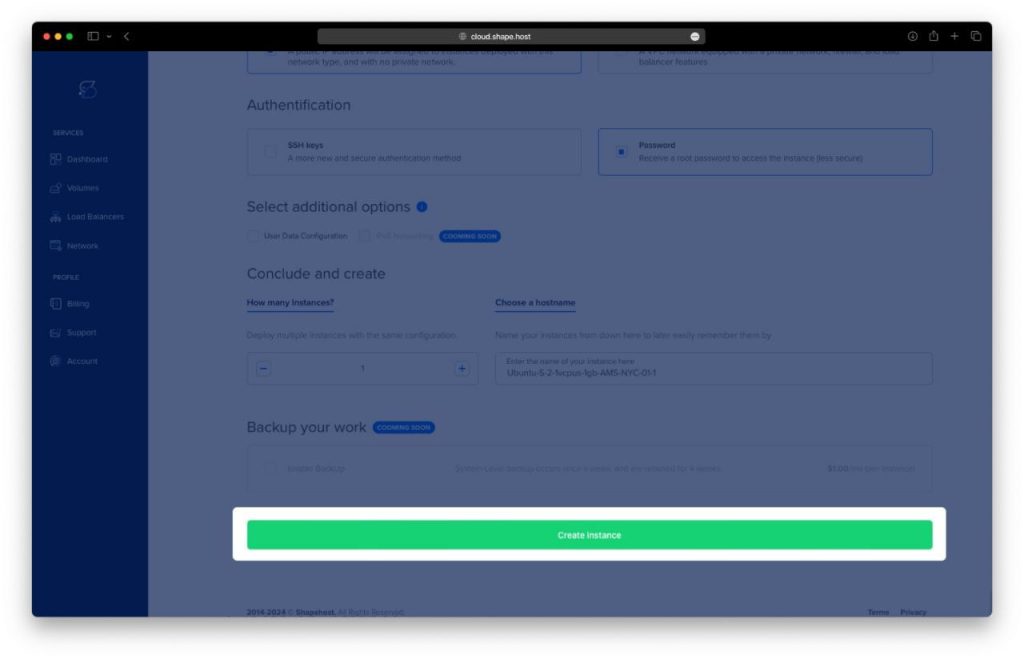

Click “Create Instance”.

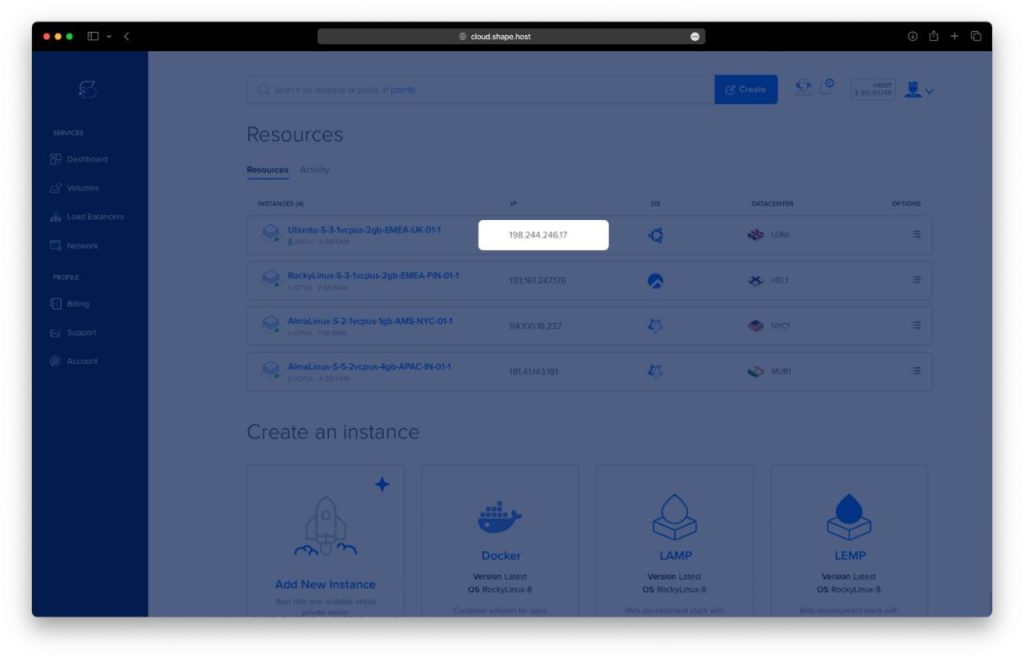

After deployment, note your server’s IP address under Resources.

You’ll use this server to host your OpenLDAP environment.

Connect to Your Server via SSH

On Linux/macOS:

ssh root@your_server_ip

On Windows:

Use PuTTY, enter the IP, and connect as root.

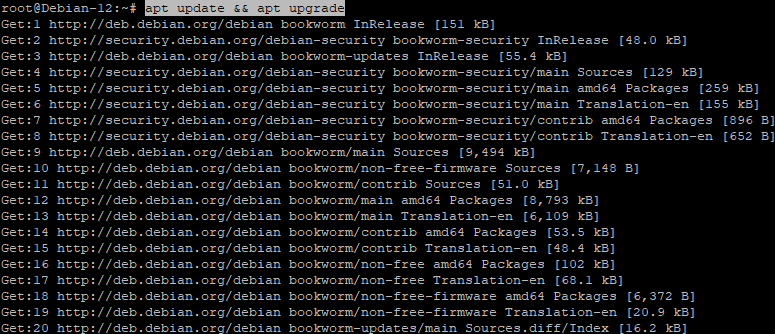

🔹 Step 1: Update the System

apt update && apt upgrade -y
  • apt update: Refreshes the package index from repositories.
  • apt upgrade -y: Automatically upgrades all installed packages to the latest version without prompting.

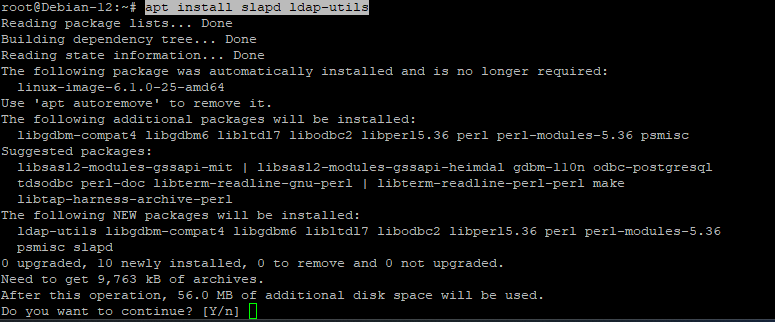

🔹 Step 2: Install OpenLDAP Server

apt install slapd ldap-utils -y
  • Installs the OpenLDAP server (slapd) and LDAP client utilities (ldap-utils) needed for querying and managing the directory.

If not prompted during installation, reconfigure OpenLDAP manually:

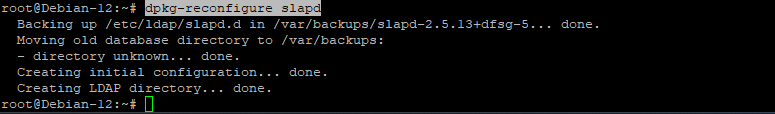

dpkg-reconfigure slapd

This will open a guided setup. Choose:

  • Domain name: shape.host → This will generate the DN root: dc=shape,dc=host.
  • Admin password: Set a secure password for the LDAP admin user (cn=admin).
  • Backend type: Choose MDB (fast, modern database backend).
  • Leave configuration intact (do not omit the configuration database).

🔹 Step 3: Verify LDAP Server

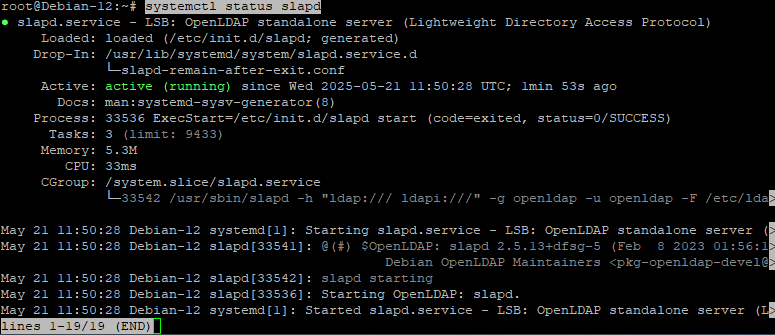

systemctl status slapd
  • Checks if the OpenLDAP daemon (slapd) is running properly.
ldapsearch -x -LLL -H ldap://localhost -b dc=shape,dc=host
  • ldapsearch: CLI tool to query the LDAP directory.
  • -x: Use simple authentication.
  • -LLL: Format output without comments or version info.
  • -H ldap://localhost: Connect to the local LDAP server.
  • -b dc=shape,dc=host: Set the base DN for the search.

🔹 Step 4: Install phpLDAPadmin (Optional GUI)

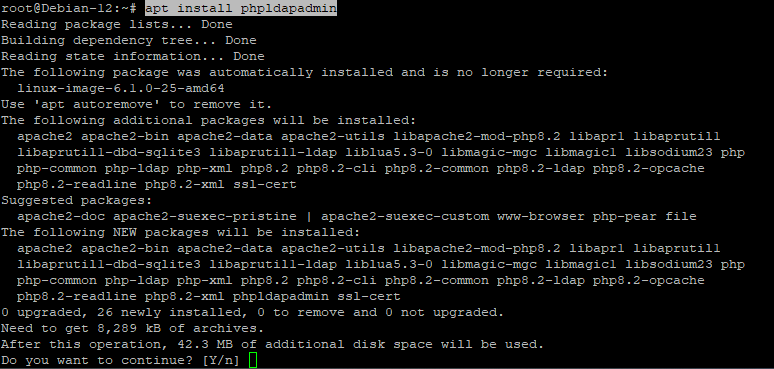

apt install phpldapadmin -y
  • Installs a web-based GUI to manage LDAP easily via a browser.

Edit the phpLDAPadmin configuration:

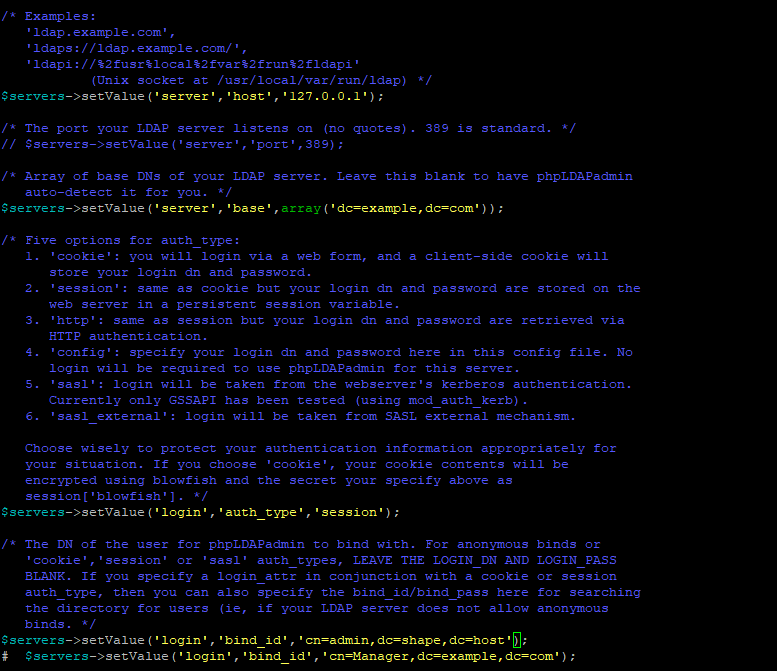

nano /etc/phpldapadmin/config.php

Update these lines to connect to your local LDAP server:

$servers->setValue('server','host','127.0.0.1');
$servers->setValue('login','bind_id','cn=admin,dc=shape,dc=host');

Edit Apache config to allow external access:

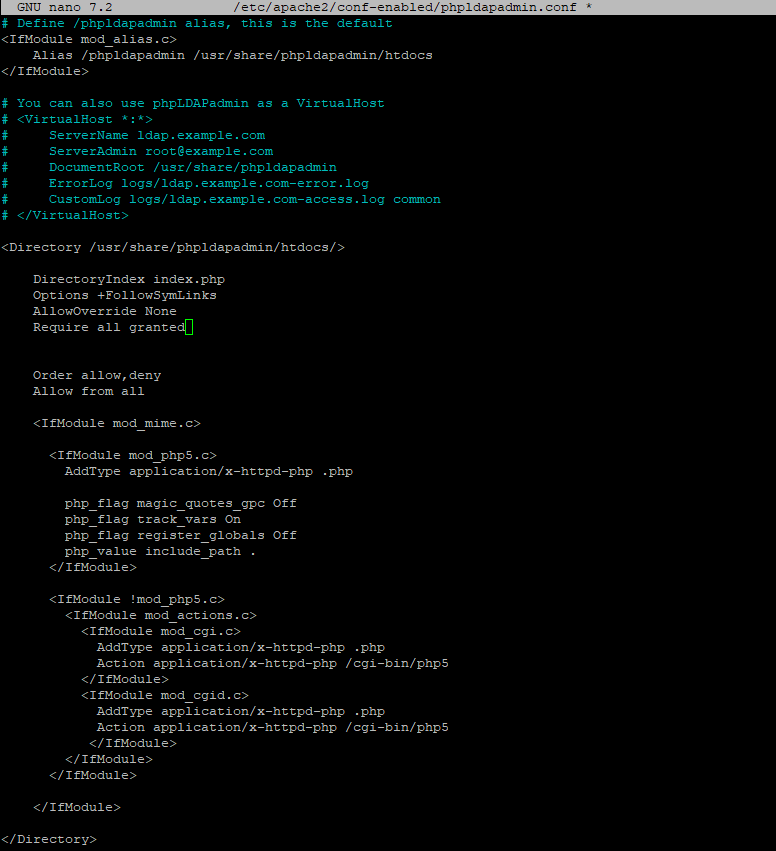

nano /etc/apache2/conf-enabled/phpldapadmin.conf

Find this line:

Require local

Change it to:

Require all granted
  • This allows external web access to phpLDAPadmin via your IP or domain.

Restart Apache:

systemctl restart apache2
  • Applies the new config and restarts the web server.

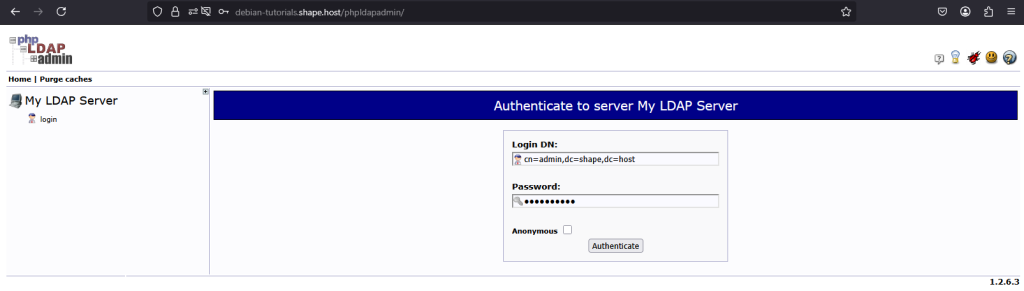

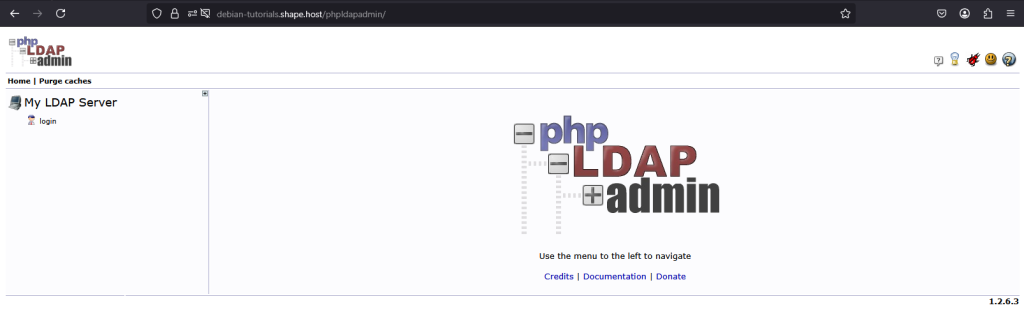

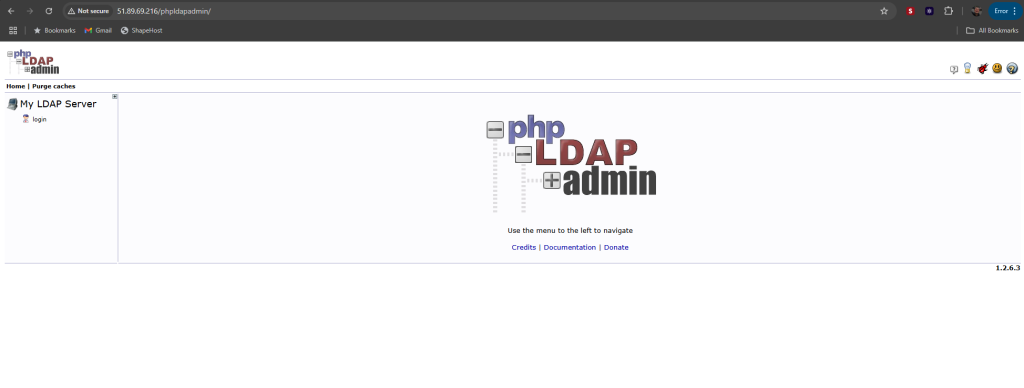

You can now access:

http://your-server-ip/phpldapadmin/

or via your domain:

http://debian-tutorials.shape.host/phpldapadmin/

🔹 Step 5: Create Base LDAP Structure

Create a base LDIF file:

nano base.ldif

Paste the following:

dn: ou=people,dc=shape,dc=host
objectClass: organizationalUnit
ou: people

dn: ou=groups,dc=shape,dc=host
objectClass: organizationalUnit
ou: groups
  • This creates two organizational units (OUs): people and groups, useful for organizing users and roles.

Add it to LDAP:

ldapadd -x -D cn=admin,dc=shape,dc=host -W -f base.ldif
  • -D: Specifies the bind DN (LDAP admin).
  • -W: Prompts for the admin password.
  • -f base.ldif: File containing entries to add.

🔹 Step 6: Add an LDAP User

Create the user entry:

nano john.ldif

Add the following:

dn: uid=john,ou=people,dc=shape,dc=host
objectClass: inetOrgPerson
sn: Doe
givenName: John
cn: John Doe
uid: john
mail: john@shape.host
userPassword: password

This adds a user named John Doe with email and password.

Add the user to LDAP:

ldapadd -x -D cn=admin,dc=shape,dc=host -W -f john.ldif
  • Same syntax as before, using the new file.

🔐 Tip: Hash the password before using it:

slappasswd
  • Enter a password and copy the hashed output into the userPassword: field.

🔹 Step 7: Enable HTTPS (SSL) with Let’s Encrypt

Install Certbot:

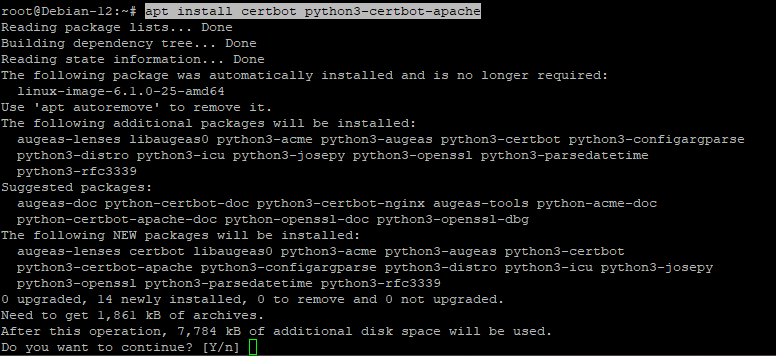

apt install certbot python3-certbot-apache -y

Installs the Let’s Encrypt client (certbot) and the Apache plugin.

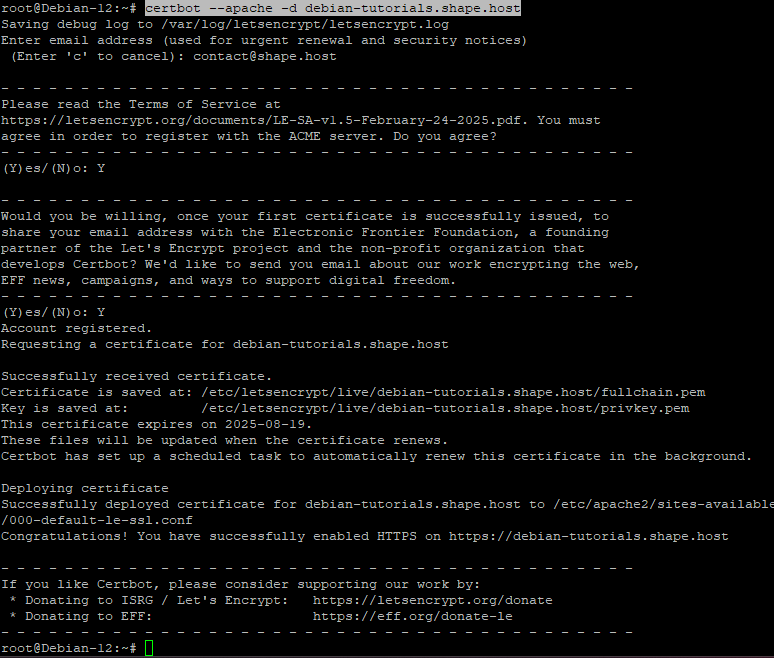

Obtain SSL certificate:

certbot --apache -d debian-tutorials.shape.host
  • Requests and installs a free SSL cert for your domain.
  • Choose the redirect option to force HTTPS.

Final Access Points

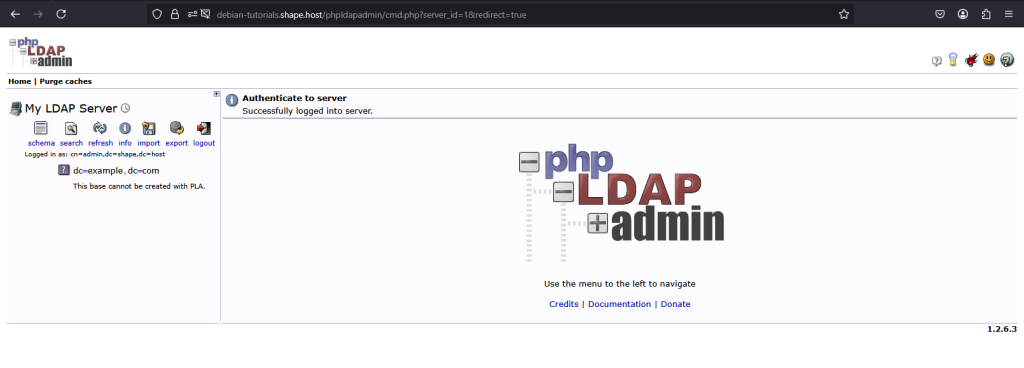

phpLDAPadmin (Web GUI):

https://debian-tutorials.shape.host/phpldapadmin/

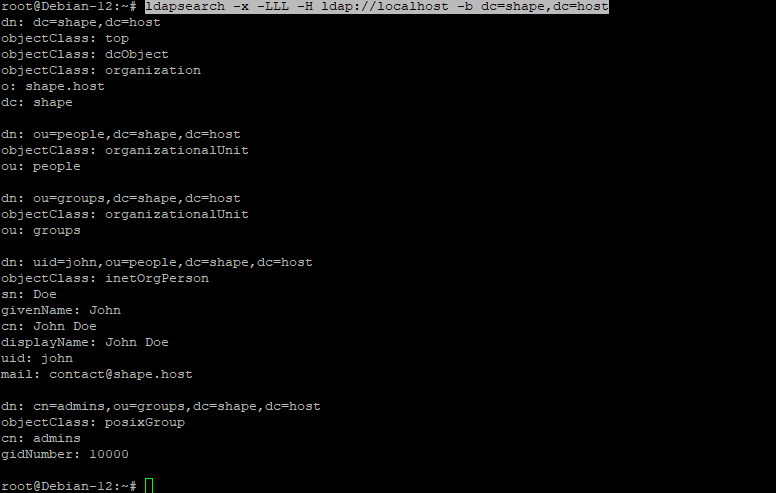

Test LDAP connection:

ldapsearch -x -LLL -H ldap://localhost -b dc=shape,dc=host
