How to Install OpenLDAP on Ubuntu 24.04

What is OpenLDAP?

OpenLDAP is a free and open-source implementation of the Lightweight Directory Access Protocol (LDAP). It provides a centralized directory service for storing user accounts, passwords, group information, and other directory-based data in a hierarchical and searchable format.

OpenLDAP is commonly used for:

Centralized user authentication
Address book services
Access control and identity management
Integration with Samba, Apache, Dovecot, sudo, and other Linux/UNIX services

Why Use OpenLDAP on Ubuntu 24.04?

Ubuntu 24.04 LTS is a modern, secure, and long-term supported platform. It provides a stable environment for directory services like OpenLDAP due to:

Support for OpenLDAP 2.5+ via APT
Updated systemd, AppArmor, and TLS 1.3 integration
Enhanced performance, logging, and IPv6 readiness
Compatibility with SSSD, Kerberos, and Samba for centralized authentication

Ubuntu’s LTS support until 2029 makes it ideal for enterprise-grade directory deployments.

Key Components of an OpenLDAP Setup

slapd – The LDAP directory server daemon
ldap-utils – Command-line tools to interact with the directory
LDIF (LDAP Data Interchange Format) – Text files used to represent directory entries
Schemas – Define object types, attributes, and relationships (e.g., inetOrgPerson)
Access Control Lists (ACLs) – Fine-grained permission rules for reading or modifying data
TLS – Secure LDAP communications with certificates (LDAPS)

Common Use Cases

Manage Linux server logins with centralized LDAP user accounts
Control access to internal applications (e.g., GitLab, Nextcloud, Zabbix)
Serve as a backend directory for mail servers or web-based address books
Provide identity backend for Samba/Active Directory compatibility
Store and query hierarchical organizational data (users, departments, etc.)

Advantages of OpenLDAP

Feature	Description
Scalable	Supports thousands of entries and replicas
Flexible Schema	Supports custom attribute types and object classes
Interoperable	Integrates with UNIX, Windows, macOS, and cloud services
Secure	TLS, SASL, strong ACLs, and integration with PAM
CLI and GUI Options	Manage via CLI (`ldapadd`, `ldapsearch`) or GUIs like phpLDAPadmin or LDAP Account Manager (LAM)

Security Features

TLS encryption with X.509 certificates (for ldaps:// or StartTLS)
Strong password hashing (SSHA, BCRYPT)
Fine-grained ACLs to control read/write access
Integration with Kerberos or SASL for single sign-on (SSO)
Ability to restrict anonymous binds or specific operations

Tools and Interfaces

ldapsearch / ldapadd / ldapmodify / ldapdelete – Powerful command-line utilities
phpLDAPadmin – Web-based admin UI (optional)
LDAP Account Manager (LAM) – Feature-rich web interface for user/group management
SSSD – For LDAP-based login integration on Linux clients

Deployment Notes on Ubuntu 24.04

By default, slapd uses dynamic configuration under /etc/ldap/slapd.d
The traditional slapd.conf is deprecated
Ubuntu 24.04 supports systemd services, AppArmor, and automatic TLS provisioning
Configuration can be done interactively during install or manually via dpkg-reconfigure slapd

Typical Directory Structure

A default domain of example.com creates a base DN like:

dc=example,dc=com

Under which you’ll define entries such as:

ou=People – user entries
ou=Groups – group entries
cn=admin – admin (bind) user
uid=john.doe – individual user account

OpenLDAP on Ubuntu 24.04 offers a stable, secure, and fully-featured solution for directory-based identity and access management. Whether you’re deploying a centralized login system or integrating enterprise apps with LDAP authentication, Ubuntu 24.04 provides a modern, well-supported platform for OpenLDAP services.

Its compatibility with modern security protocols, web admin interfaces, and Linux integration tools makes it a powerful choice for organizations of all sizes.

🔹Create a Server Instance on Shape.Host

Before installation, provision a clean Ubuntu 24.04 VPS:

Go to https://shape.host and log in.

Click “Create”, then choose “Instance”.

Set:

Location: your preferred region.

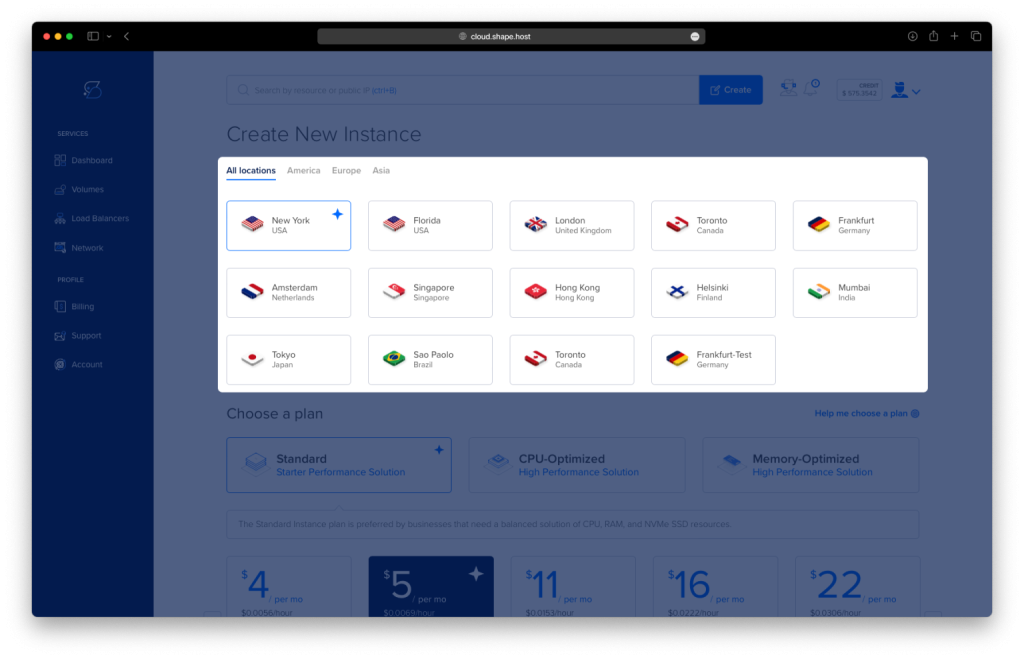

Shape.host instance form with the data center location selector highlighted.

OS: Ubuntu 24.04 (64-bit)

Plan: at least 2 CPUs, 2 GB RAM, 20 GB SSD

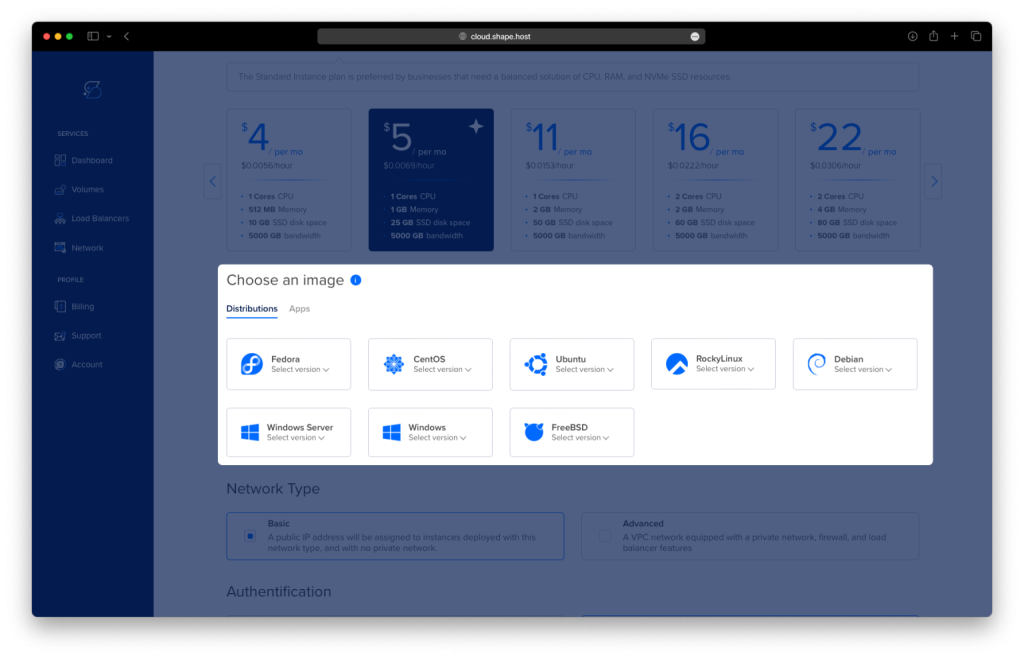

Shape.host instance form with the operating system image selector highlighted.

Click “Create Instance”.

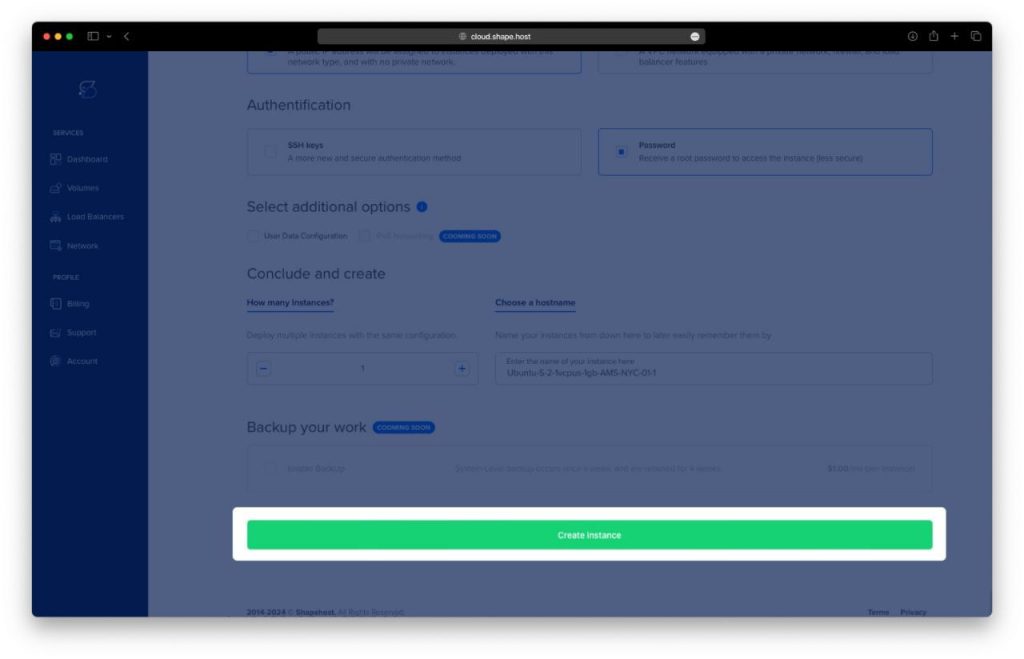

Shape.host instance form with the Create Instance button highlighted.

After deployment, note your server’s IP address under Resources.

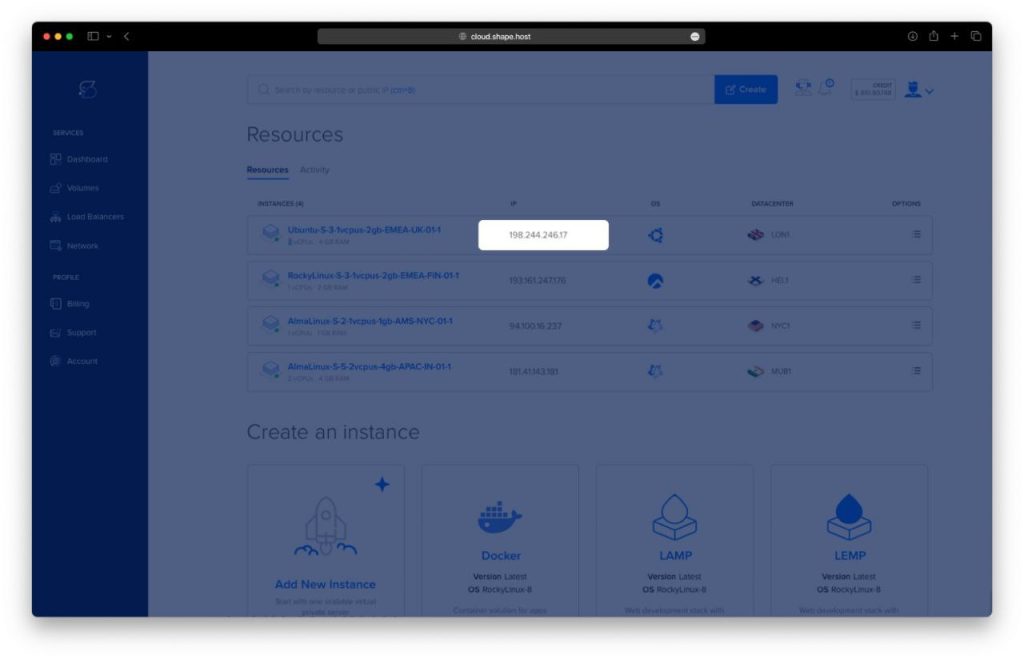

Shape.host Resources dashboard with the server IP address highlighted.

You’ll use this server to host your OpenLDAP environment.

Connect to Your Server via SSH

On Linux/macOS:

ssh root@your_server_ip

On Windows:

Use PuTTY, enter the IP, and connect as root.

🔹 Step 1: Update the System

apt update && apt upgrade -y

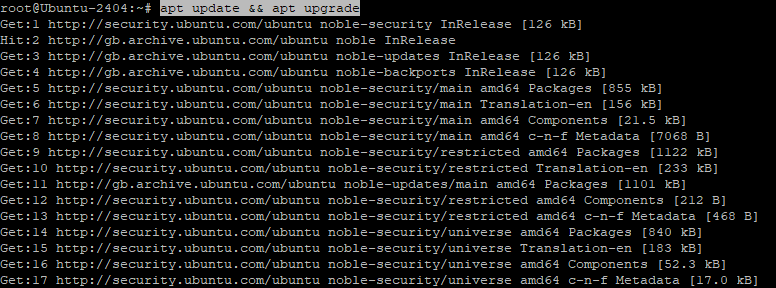

Terminal showing APT package management commands and output.

🔹 Step 2: Install OpenLDAP Server

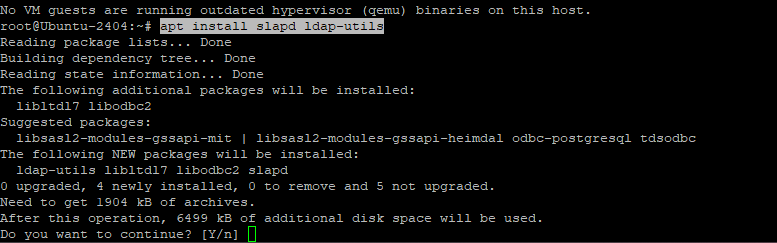

apt install slapd ldap-utils -y

If not prompted, reconfigure manually:

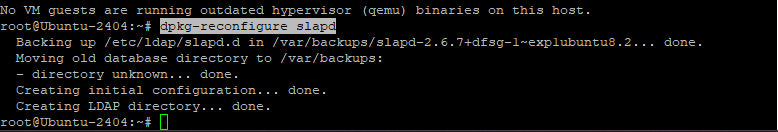

dpkg-reconfigure slapd

During reconfiguration, choose:

Omit OpenLDAP server configuration? → No
DNS domain name: example.com → results in dc=example,dc=com
Organization name: Example Inc
Admin password: (choose securely)
Database backend: MDB
Do you want the database to be removed when slapd is purged? → No
Move old database? → Yes

🔹 Step 3: Verify LDAP Server

systemctl status slapd

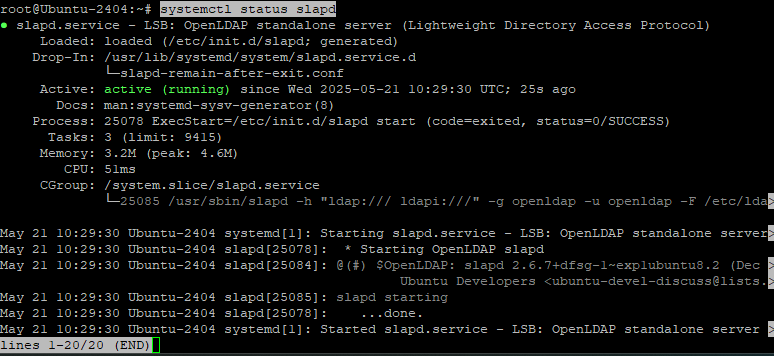

Terminal showing systemd service management commands or output.

Test:

ldapsearch -x -LLL -H ldap://localhost -b dc=shape,dc=host

Terminal displaying LDAP directory query results.

🔹 Step 4: Install phpLDAPadmin (Optional GUI)

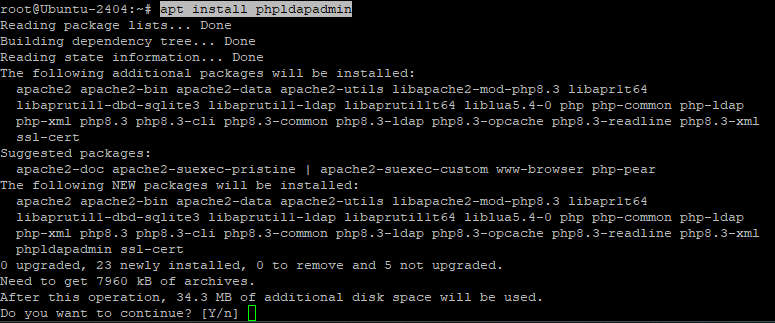

apt install phpldapadmin -y

Edit config:

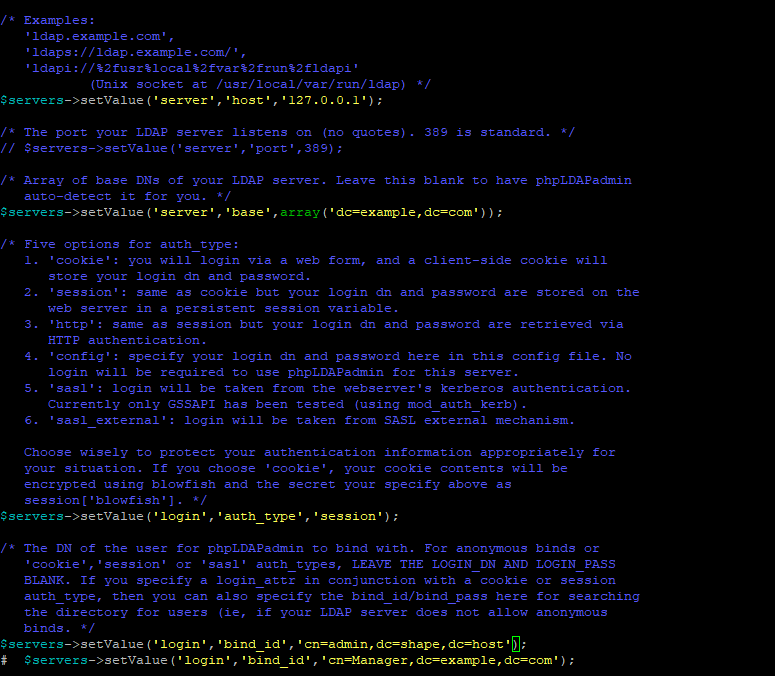

nano /etc/phpldapadmin/config.php

Update these lines:

$servers->setValue('server','host','127.0.0.1');
$servers->setValue('login','bind_id','cn=admin,dc=shape,dc=host');

Edit Apache config:

nano /etc/apache2/conf-enabled/phpldapadmin.conf

Change:

Require local

To:

Require all granted

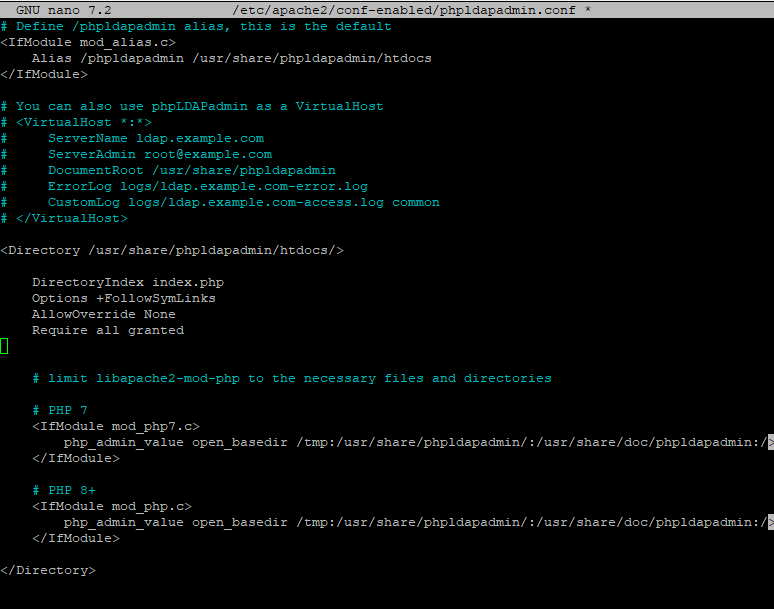

Terminal showing web server configuration text.

Restart Apache:

systemctl restart apache2

Now open:

http://51.89.69.203/phpldapadmin/

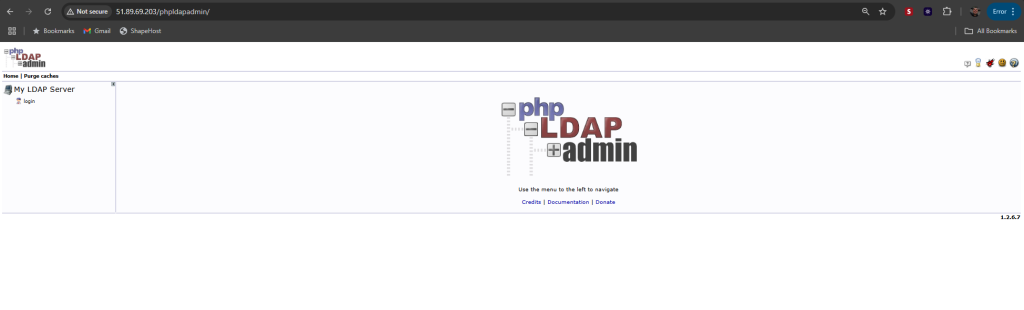

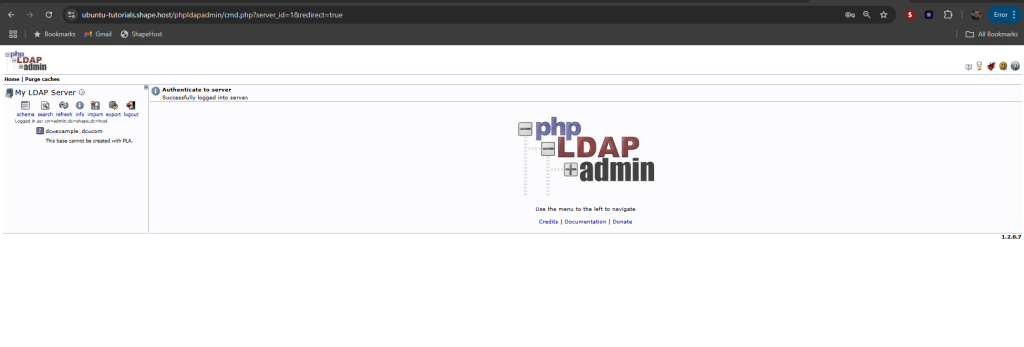

phpLDAPadmin welcome screen with directory navigation.

or (after DNS propagation):

http://ubuntu-tutorials.shape.host/phpldapadmin/

🔹 Step 5: Create Base LDAP Structure

Create file:

nano base.ldif

dn: ou=people,dc=shape,dc=host
objectClass: organizationalUnit
ou: people

dn: ou=groups,dc=shape,dc=host
objectClass: organizationalUnit
ou: groups

Terminal showing the GNU nano editor and configuration text.

Apply:

ldapadd -x -D cn=admin,dc=shape,dc=host -W -f base.ldif

Terminal showing nano commands or output during Step 5: Create Base LDAP Structure.

🔹 Step 6: Add an LDAP User

nano john.ldif

dn: uid=john,ou=people,dc=shape,dc=host
objectClass: inetOrgPerson
sn: Doe
givenName: John
cn: John Doe
uid: john
mail: john@shape.host
userPassword: password

Then:

ldapadd -x -D cn=admin,dc=shape,dc=host -W -f john.ldif

Terminal showing nano commands or output during Step 6: Add an LDAP User.

🔐 You can hash the password using:

slappasswd

🔹 Step 7: Enable HTTPS (SSL) with Let’s Encrypt

Install Certbot:

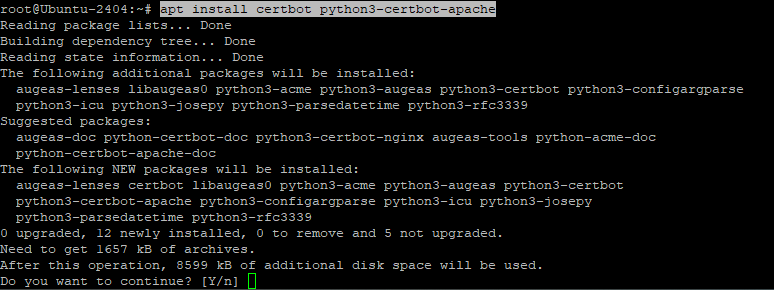

apt install certbot python3-certbot-apache -y

Obtain SSL cert:

certbot --apache -d ubuntu-tutorials.shape.host

Choose redirect to force HTTPS access.

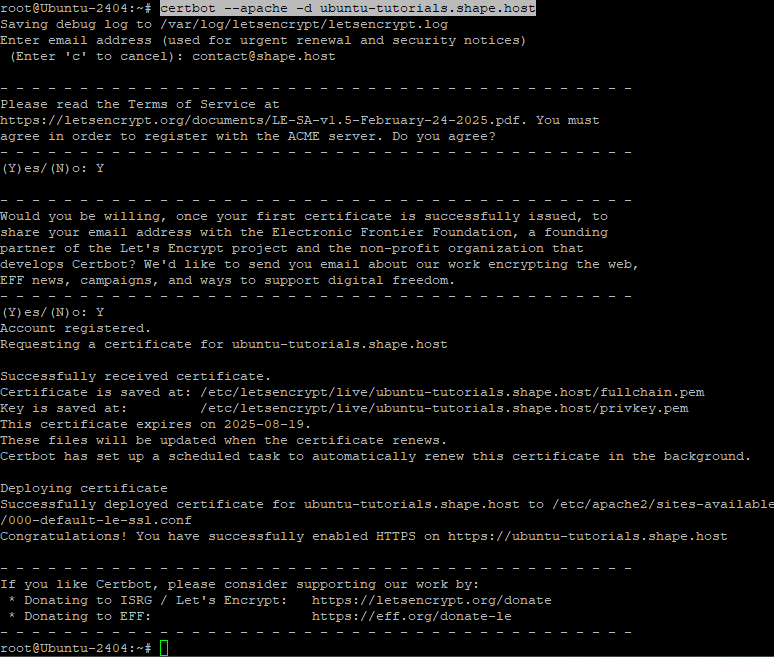

Terminal showing Certbot certificate commands and messages.

Final Access Points

phpLDAPadmin (Web GUI):

https://ubuntu-tutorials.shape.host/phpldapadmin/

phpLDAPadmin interface with an expanded directory tree.

Test LDAP:

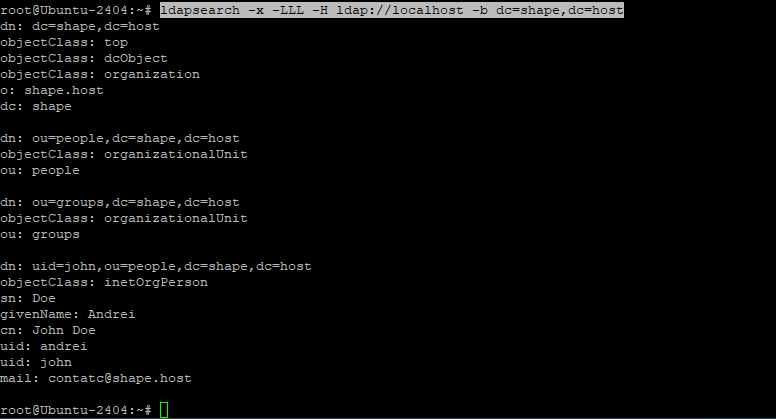

ldapsearch -x -LLL -H ldap://localhost -b dc=shape,dc=host

Terminal displaying LDAP user and group directory entries.
