Directus on Ubuntu 24.04 (PostgreSQL + PM2 + Nginx + SSL)

Directus is an open-source data platform that provides a real-time REST and GraphQL API plus an admin app on top of your SQL database. Unlike a traditional CMS that owns your schema, Directus treats your database as the source of truth: it introspects existing tables, adds a lightweight system schema, and exposes content and data with granular permissions.

Ubuntu 24.04 (Noble) offers a secure, long-supported base, modern OpenSSL 3, systemd 255, and up-to-date Node.js and PostgreSQL packages—ideal for self-hosted Directus.

Architecture Overview

Layer	Component	Role
OS	Ubuntu 24.04 LTS	Stable, secure base; systemd service management
Runtime	Node.js LTS (18 or 20)	Runs Directus API/admin application
Database	PostgreSQL 15/16	Primary datastore for content, system tables, and files metadata
Process Manager	PM2	Keeps Directus alive, logging, clustering, startup on boot
Reverse Proxy	Nginx	TLS termination, HTTP/2, compression, caching, routing
TLS	Let’s Encrypt or corporate PKI	HTTPS for admin panel and APIs

---

Why PostgreSQL for Directus

Directus supports MySQL, SQLite, and PostgreSQL; Postgres is commonly preferred for:

• JSONB and rich indexing for semi-structured fields.
• Strong transactional guarantees and concurrency under API load.
• Mature extensions (pg_trgm, full-text search) and role management.
• Straightforward replication/WAL archiving for backup and HA.

Use a dedicated Postgres instance for medium/large footprints; tune shared_buffers, work_mem, effective_cache_size, and WAL settings per workload and storage.

---

PM2 for Process Control

• Daemonizes Directus; auto-restarts on crashes and reboots (pm2 startup).
• Cluster mode to leverage multiple CPU cores with zero-downtime reloads.
• Centralized logs with rotation; basic metrics via pm2 monit or exporters.
• Use an ecosystem file to pin environment variables, working dir, instances, and per-env configs.

---

Nginx and SSL as the Public Edge

• Reverse proxy to Directus on localhost (e.g., 8055), keep the app port blocked externally.
• TLS termination with HTTP/2, OCSP stapling, modern ciphers (OpenSSL 3).
• Security headers: HSTS, X-Content-Type-Options, X-Frame-Options, Referrer-Policy, and a tight CSP for the admin UI.
• Static and upload routing, gzip/brotli, basic rate limiting on auth and admin endpoints.
• Automate certificates with Certbot/ACME; test renewals and reloads.

---

Security and Access Control

• Environment variables only for secrets; never commit .env files. Consider a secret manager if already in your stack.
• Ubuntu firewall (UFW or nftables): expose only 80/443; bind Directus to 127.0.0.1.
• Directus RBAC: roles, permissions, and granular field-level access. Separate “admin” from “editor” and “public” roles.
• Authentication: local accounts, OAuth/OIDC, SSO providers; rotate tokens.
• File security: choose a storage driver (local, S3/MinIO, GCS). For public assets, serve via Nginx or a CDN with signed URLs when needed.
• Keep Node, Directus core, and extensions patched; run dependency audits in CI.
• Fail2Ban on Nginx for brute-force mitigation; centralized logging for forensics.

---

Sizing and Performance

Small (pilot or internal)

• 2 vCPU, 4–8 GB RAM, single PM2 instance.
• PostgreSQL co-located or small dedicated VM.
• Local file storage acceptable; backups to object storage.

Medium (multi-team, public APIs)

• 4–8 vCPU, 8–16 GB RAM; PM2 cluster (2–4 workers).
• Dedicated PostgreSQL on NVMe; automated backups and point-in-time recovery.
• Object storage (S3/MinIO) for files; Nginx caching for GETs where safe.

Large (high traffic, complex schema)

• Multiple Directus nodes; L4/L7 load balancer plus per-node Nginx.
• HA PostgreSQL (managed service or Patroni) with read replicas for reporting.
• Redis (if used by extensions/ratelimiting); CDN in front of assets.

Operational tips:

• Set NODE_ENV=production.
• Cache safe, public GET endpoints at Nginx/CDN.
• Keep Directus system schema under version control via migrations; test upgrades in staging.

---

Observability

• Logs: PM2/application logs to journald or files; ship with Vector/Fluent Bit to ELK/OpenSearch.
• Metrics: Node/PM2 exporters to Prometheus; postgres_exporter for DB health; Nginx exporter or stub_status.
• Health checks: Nginx upstream checks; synthetic probes for key endpoints; database liveness checks in CI/CD.

---

Typical Use Cases

• Data-first headless CMS where you own the schema and data model.
• Rapid API layer over existing databases without rewriting schemas.
• Multi-tenant content hubs with granular permissions.
• Back-office dashboards and admin portals for operational data.
• Product catalogs, documentation hubs, and multilingual content services.

---

Directus vs. Other Headless/Databases-First Platforms

Capability	Directus	Strapi	KeystoneJS	Payload	Hasura
DB ownership	Your existing SQL	ORM-managed	Schema-defined	Schema-defined	Your existing SQL
Admin app	Built-in	Built-in	Built-in	Built-in	Console (focus on GraphQL)
APIs	REST + GraphQL	REST + GraphQL	REST + GraphQL	REST + GraphQL	GraphQL (auto)
RBAC/permissions	Granular, field-level	Role/permission model	Schema-driven	Role/field rules	Row-level policies (RLS)
Files	Local/S3 drivers	Local/S3 drivers	Local/S3	Local/S3	External

Directus is strongest when you want a no-lock-in admin UI and APIs directly on top of a database you fully control.

---

Production Checklist (no commands)

• Lock Node.js LTS and package manager versions in CI; build once, promote across environments.
• PostgreSQL 15/16 with backups, PITR, and monitoring; define roles per environment.
• Run Directus under PM2 with an ecosystem config; enable startup on boot; cluster where useful.
• Front with Nginx; terminate TLS; restrict the Directus port to localhost.
• Configure RBAC carefully; separate admin/editor/public roles; enable SSO if required.
• Store media in S3/MinIO; apply lifecycle and access policies; use a CDN for public assets.
• Enable logging, metrics, alerting; test disaster recovery regularly; patch on schedule.

---

A Directus + PostgreSQL + PM2 + Nginx + SSL stack on Ubuntu 24.04 delivers a secure, flexible, and maintainable data platform. You retain full control of your schema and data, gain real-time REST/GraphQL APIs and a polished admin UI, and rely on a hardened TLS edge and process supervision for uptime. This setup scales cleanly from MVPs to high-traffic, multi-team platforms while keeping operational complexity reasonable.

---

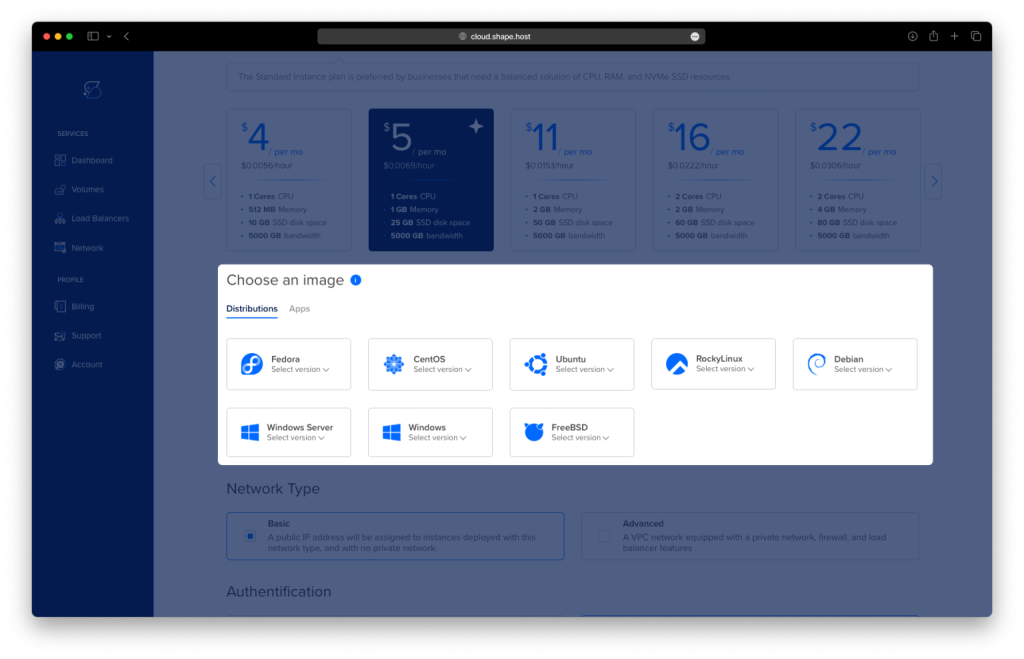

Step 1: Create an Ubuntu 24.04 VPS on Shape.Host

Go to https://shape.host and log in.

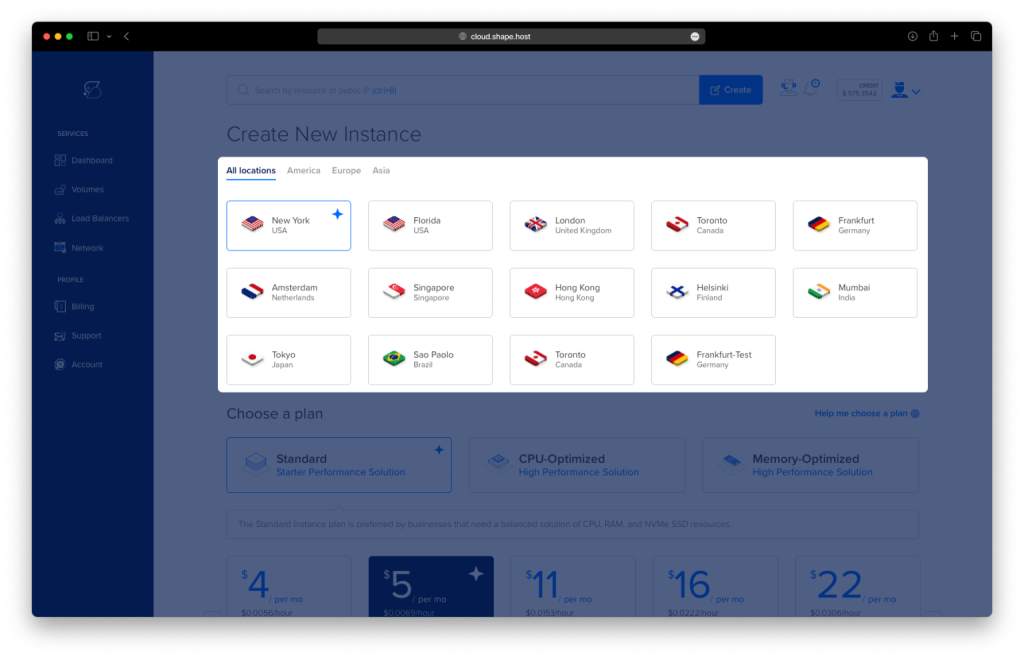

Click “Create”, then select “Instance”.

Choose the server location closest to your users.

Select Ubuntu 24.04 (64-bit) as the operating system.

Pick a plan with at least 2 CPUs, 4 GB RAM, and 20 GB SSD storage.

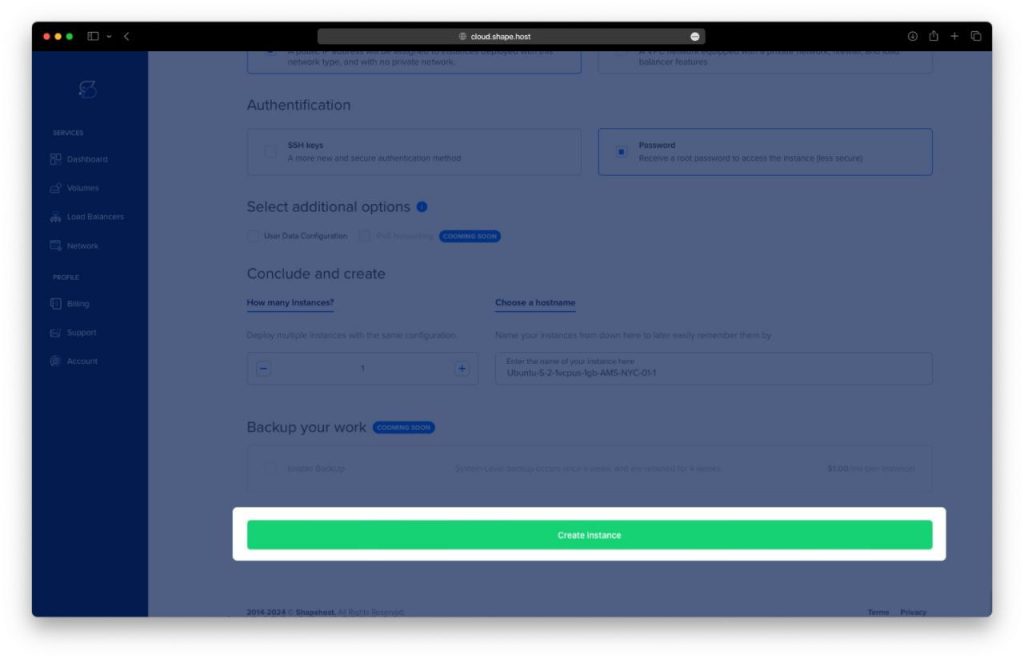

Click “Create Instance”.

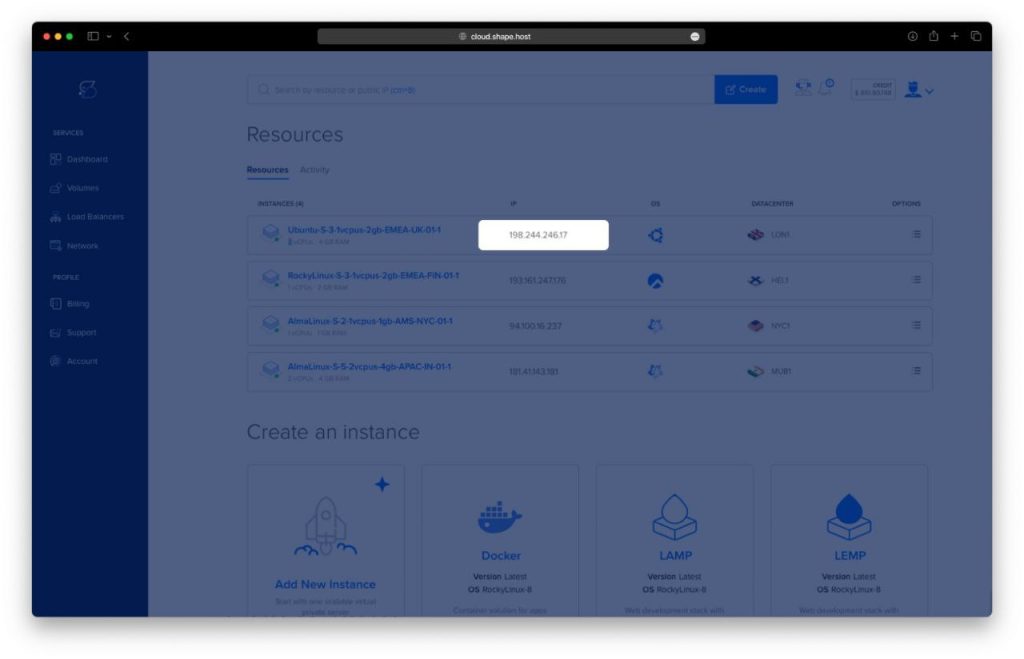

Copy your server IP address from the Resources section.

---

Step 2: Connect to Your Server

On Linux or macOS

Open a terminal and run:

ssh root@your-server-ip

This connects to the server using SSH (Secure Shell).

On Windows

If you’re on Windows, you can use:

• Command Prompt or PowerShell (Windows 10/11) – run: ssh root@your-server-ip
• PuTTY (older Windows versions) –
  1. Download PuTTY from https://www.putty.org/.
  2. Open PuTTY, enter your server IP, choose SSH connection, and click Open.
  3. Login as root when prompted.

---

Step 3: Update the System and Install Required Packages

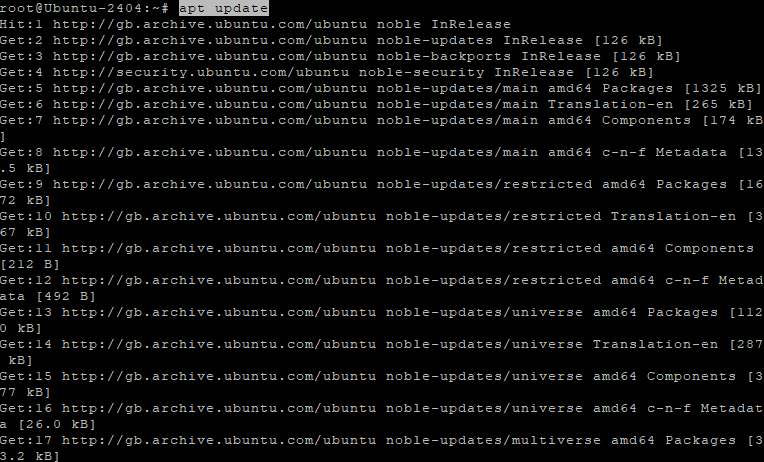

apt update
apt upgrade

• apt update refreshes the package index.
• apt upgrade installs the latest available versions of all packages.

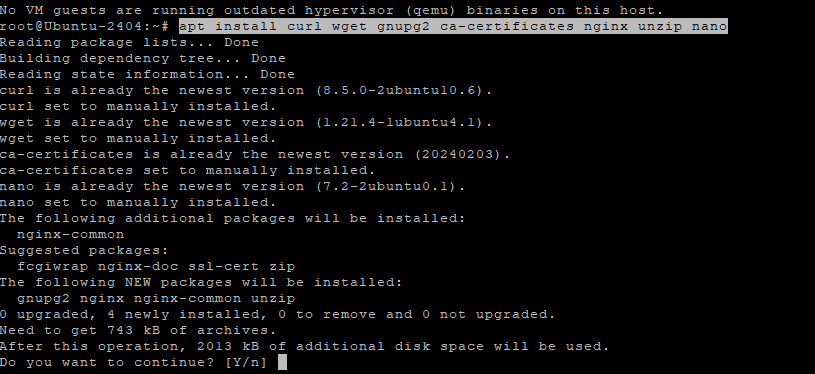

apt install curl wget gnupg2 ca-certificates nginx unzip nano -y

• Installs essential tools:
  • curl/wget: download files from the internet.
  • gnupg2: manage encryption keys.
  • ca-certificates: ensures SSL certificates work.
  • nginx: web server that will act as reverse proxy.
  • unzip: extract .zip files.
  • nano: text editor.

---

Step 4: Install and Configure PostgreSQL

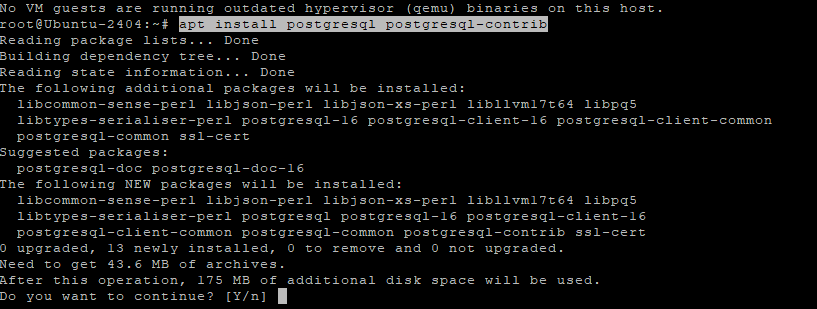

apt install postgresql postgresql-contrib -y

• Installs PostgreSQL database and extra utilities.

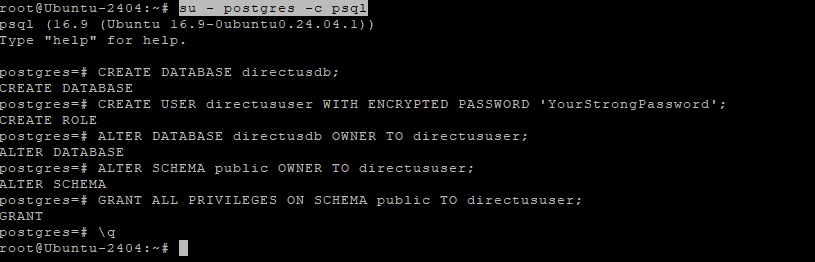

Log in as PostgreSQL user:

su - postgres -c psql

Run the following SQL commands to create database and user:

CREATE DATABASE directusdb;
CREATE USER directususer WITH ENCRYPTED PASSWORD 'YourStrongPassword';
ALTER DATABASE directusdb OWNER TO directususer;
ALTER SCHEMA public OWNER TO directususer;
GRANT ALL PRIVILEGES ON SCHEMA public TO directususer;
\q

• Creates a new database directusdb.
• Creates a user directususer with password.
• Grants ownership and privileges so Directus can manage the database.
• \q exits PostgreSQL shell.

---

Step 5: Install Node.js 20 and NPM

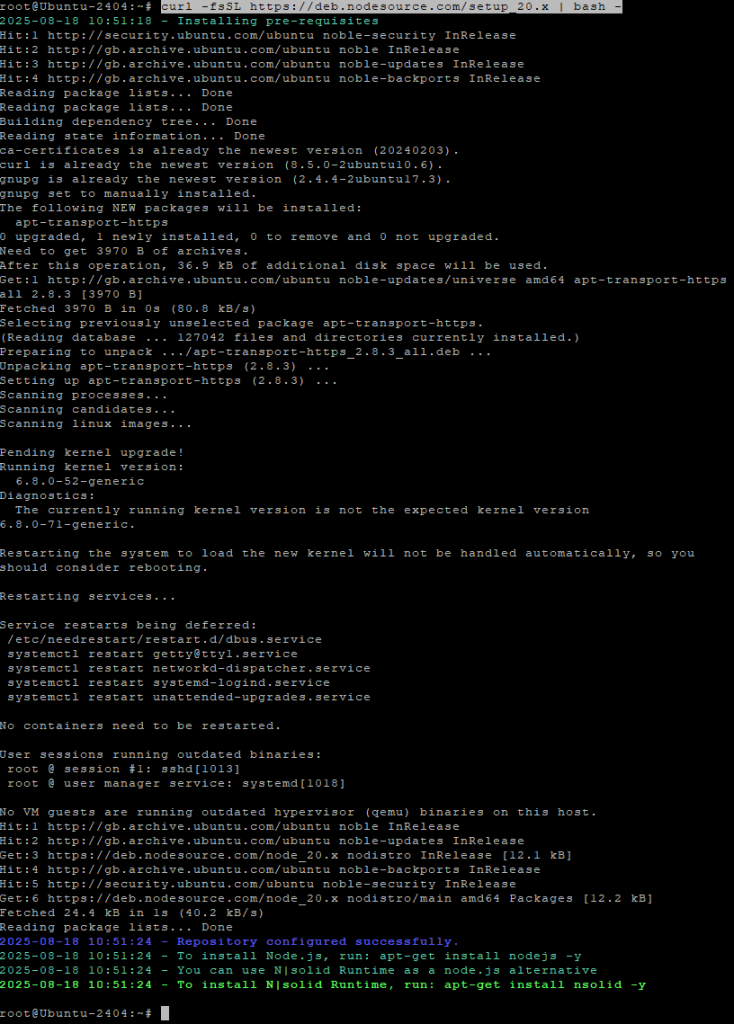

curl -fsSL https://deb.nodesource.com/setup_20.x | bash -

• Adds the NodeSource repository for Node.js 20.

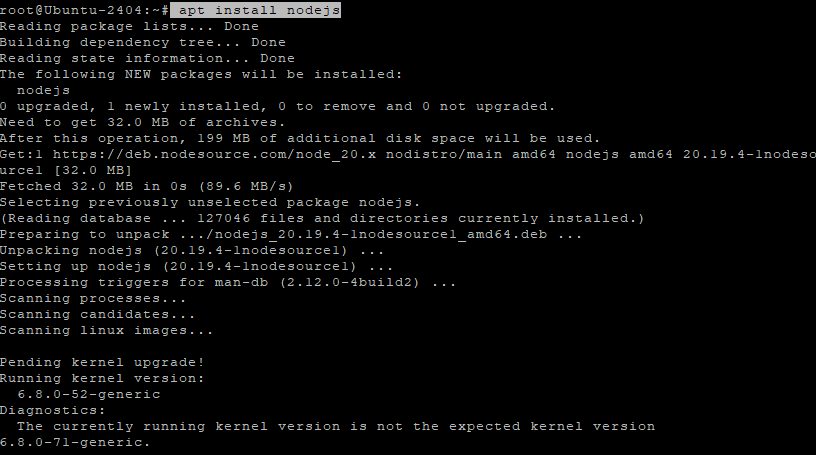

apt install nodejs -y

• Installs Node.js and npm.

node -v
npm -v

• Verify installed versions.

(Optional) Update npm to a specific version:

npm install -g npm@11.5.2

---

Step 6: Install Directus

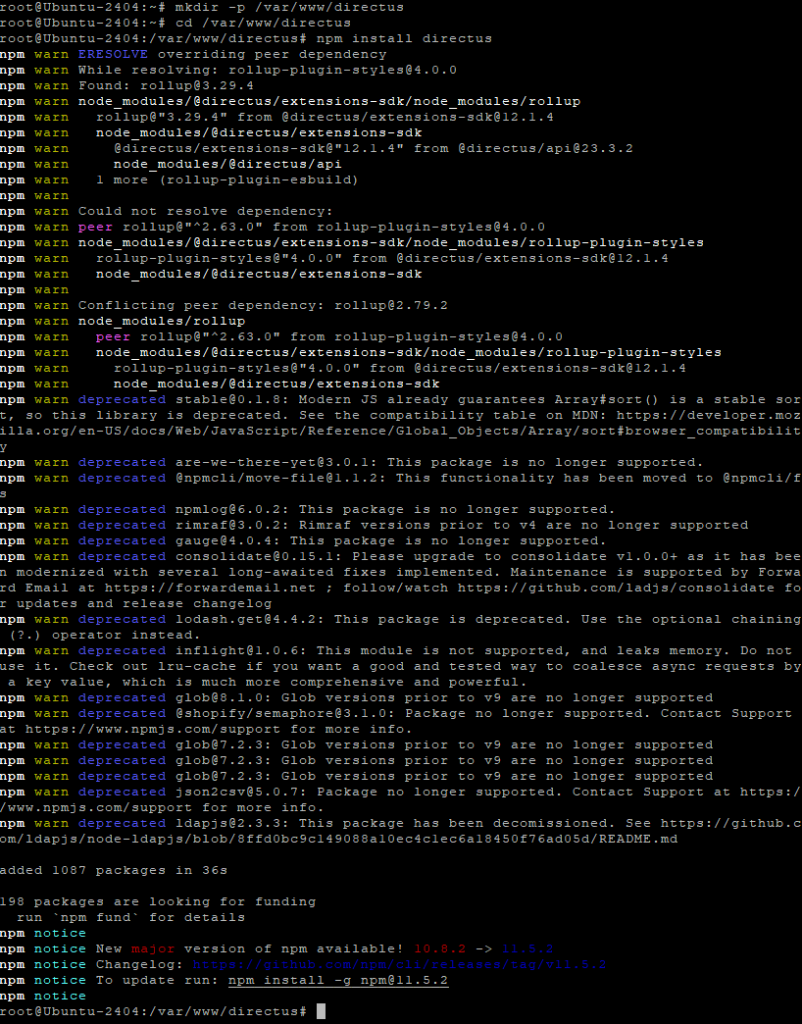

Create a project folder:

mkdir -p /var/www/directus
cd /var/www/directus

Install Directus:

npm install directus

• Installs Directus locally in the project directory.

Initialize configuration:

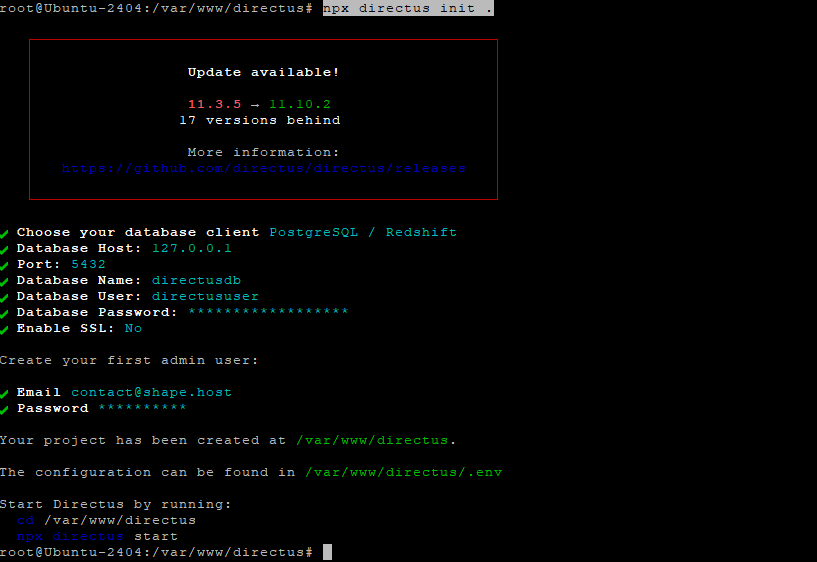

npx directus init .

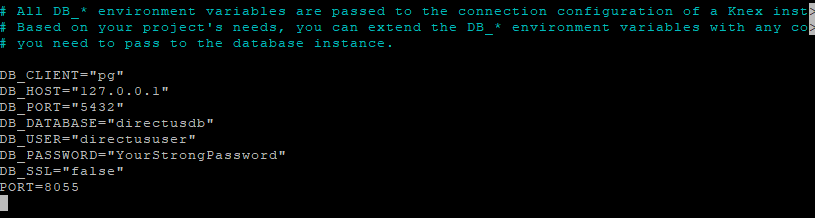

Edit environment file:

nano .env

Paste:

DB_CLIENT=pg
DB_HOST=127.0.0.1
DB_PORT=5432
DB_DATABASE=directusdb
DB_USER=directususer
DB_PASSWORD=YourStrongPassword
PORT=8055

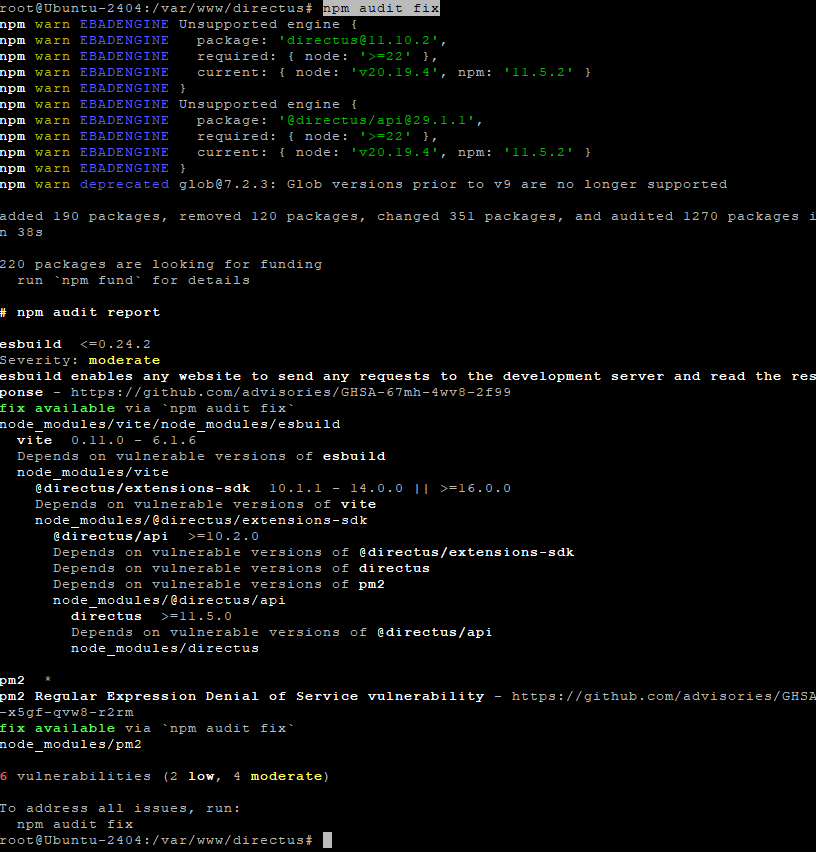

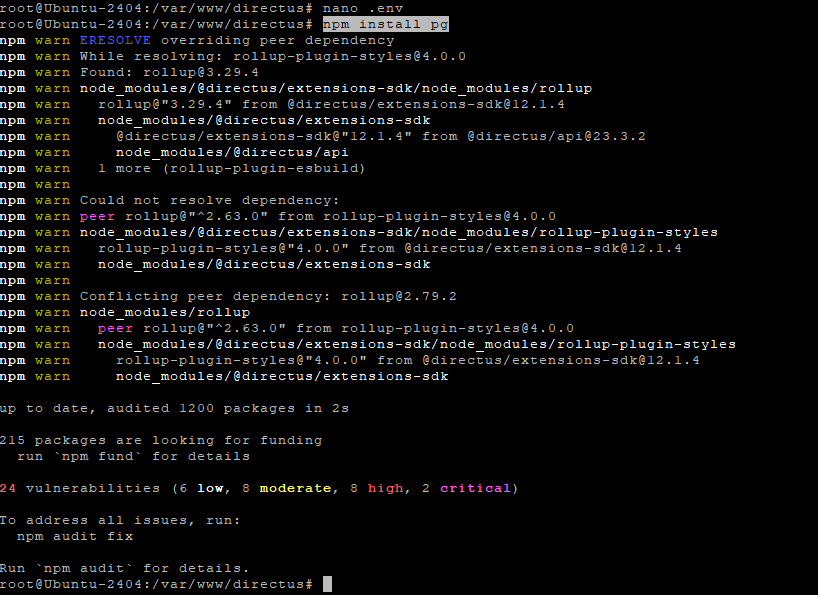

Install PostgreSQL driver and fix dependencies:

npm install pg
npm audit fix

---

Step 7: Set Up Directus with PM2

Install PM2:

npm install -g pm2

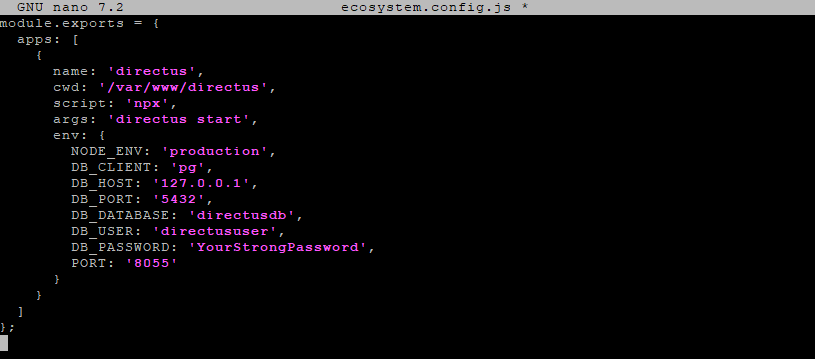

Create PM2 config file:

nano ecosystem.config.js

Paste:

module.exports = {
  apps: [
    {
      name: 'directus',
      cwd: '/var/www/directus',
      script: 'npx',
      args: 'directus start',
      env: {
        NODE_ENV: 'production',
        DB_CLIENT: 'pg',
        DB_HOST: '127.0.0.1',
        DB_PORT: '5432',
        DB_DATABASE: 'directusdb',
        DB_USER: 'directususer',
        DB_PASSWORD: 'YourStrongPassword',
        PORT: '8055'
      }
    }
  ]
};

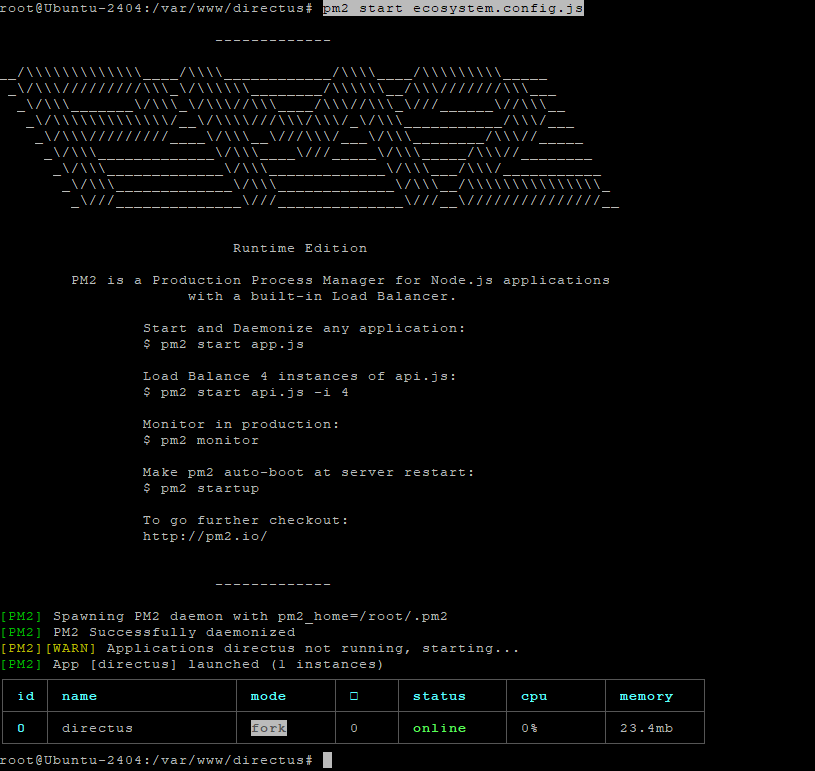

Start Directus:

pm2 start ecosystem.config.js

Save and enable on boot:

pm2 save

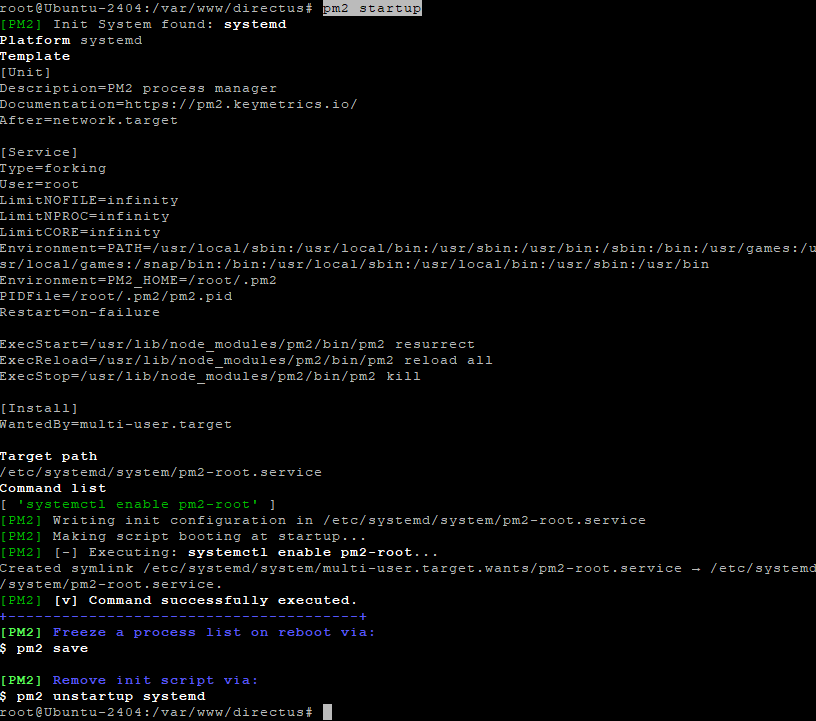

pm2 startup

---

Step 8: Configure Nginx as Reverse Proxy

Create new site config:

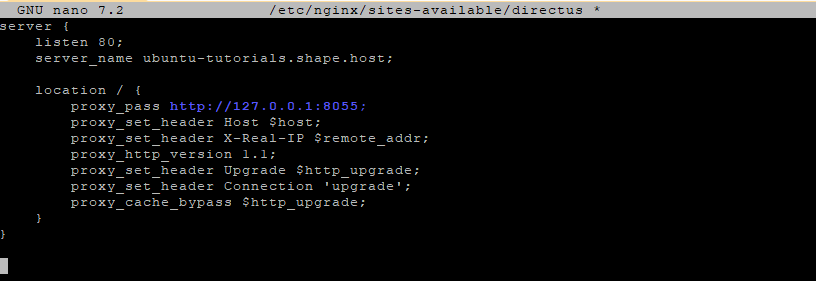

nano /etc/nginx/sites-available/directus

Paste:

server {
    listen 80;
    server_name your_domain.com;

    location / {
        proxy_pass http://127.0.0.1:8055;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_cache_bypass $http_upgrade;
    }
}

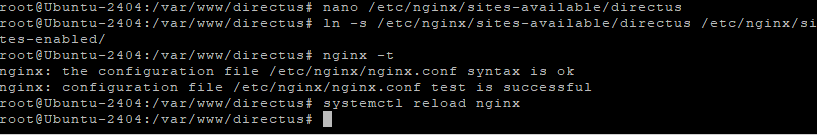

Enable the config and reload Nginx:

ln -s /etc/nginx/sites-available/directus /etc/nginx/sites-enabled/
nginx -t
systemctl reload nginx

---

Step 9: Secure Directus with SSL

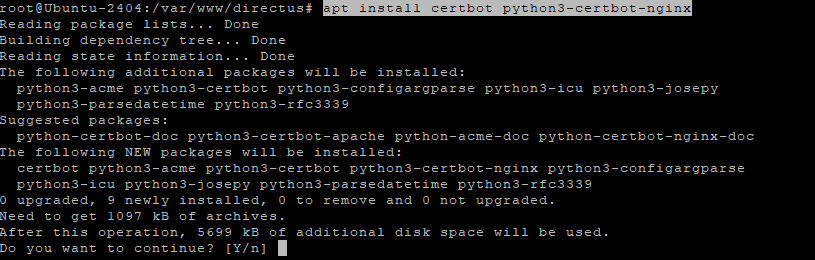

Install Certbot:

apt install certbot python3-certbot-nginx -y

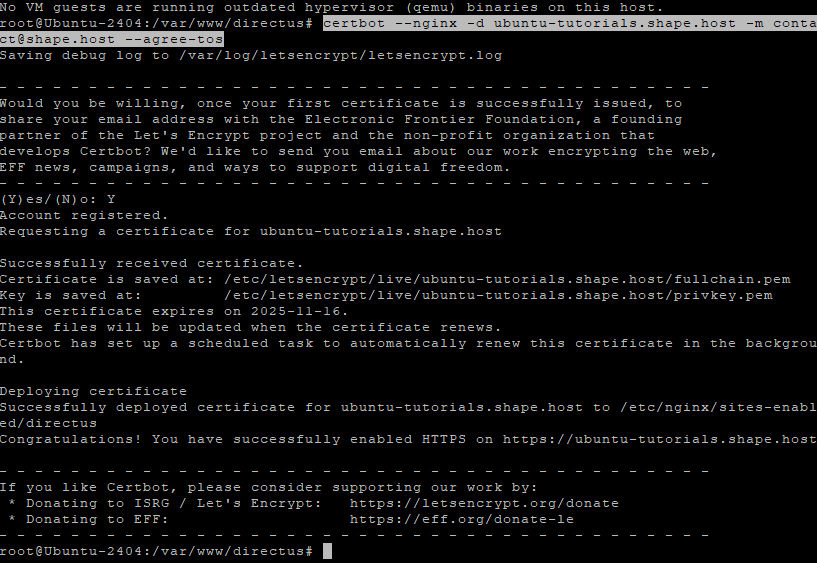

Run certificate request:

certbot --nginx -d ubuntu-tutorials.shape.host -m contact@shape.host --agree-tos

This automatically sets up HTTPS for your domain.

---

Directus is now installed and running on Ubuntu 24.04 with PostgreSQL, PM2, Nginx, and SSL.

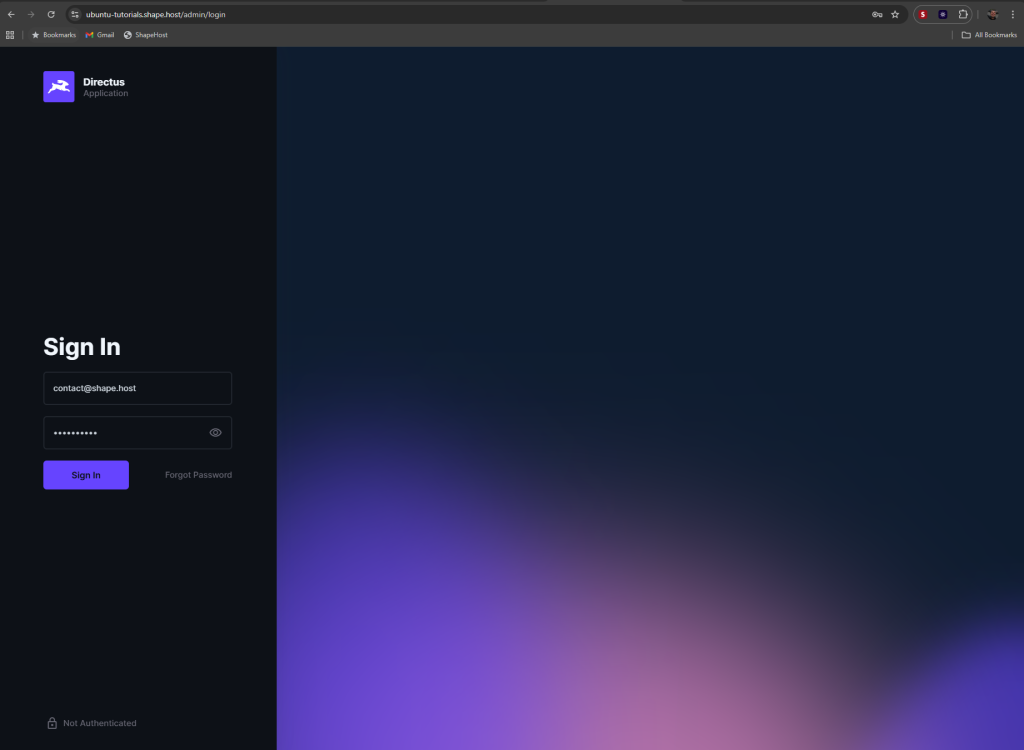

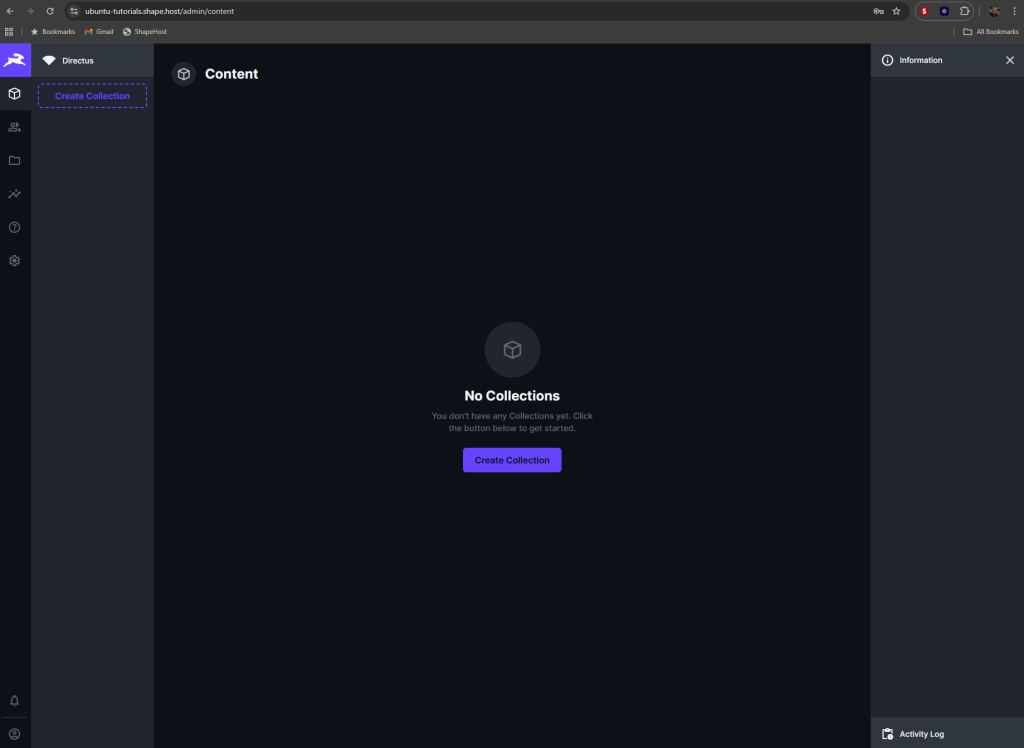

Access it in your browser:

https://ubuntu-tutorials.shape.host

---
