Strapi CMS on AlmaLinux 9 (PostgreSQL + PM2 + Nginx + SSL)

Strapi is an open‑source, Node.js‑based headless CMS that exposes content via REST and GraphQL. On AlmaLinux 9—a RHEL 9–compatible distribution—you get a stable, long‑lifecycle platform suitable for hardened, enterprise deployments.

Stack at a Glance

Layer	Component	Purpose
OS	AlmaLinux 9 (kernel 5.14, SELinux enforcing)	Enterprise stability and security baseline
Runtime	Node.js LTS (18/20)	Runs Strapi application
DB	PostgreSQL 14/15	Primary data store (content, users, config)
Process mgr	PM2	Keeps Strapi online (restart, logs, clustering)
Proxy	Nginx	TLS termination, HTTP/2, compression, routing
TLS	Let’s Encrypt or custom PKI	Encrypts admin/API traffic end‑to‑end

---

Why PostgreSQL for Strapi

• JSONB columns for flexible content structures plus relational integrity.
• Robust indexing and full‑text search options.
• Strong concurrency and reliability under write/read load.
• Mature tooling for replication, backups, and role management.

Recommended: separate DB node or VM for medium/large deployments, with WAL archiving and regular base backups.

---

PM2 in Production

• Daemonizes Strapi, auto‑restarts on crash or OOM, and reboots with pm2 startup.
• Cluster mode to utilize multiple CPU cores behind Nginx.
• Centralized logs with rotation; expose metrics via pm2 monit or PM2 API.
• Use an ecosystem file to pin environment variables, cwd, and instances per environment (dev/stage/prod).

---

Nginx as Reverse Proxy (with SSL)

• Offloads TLS, serves HTTP/2, gzip/brotli, and static assets efficiently.
• Path routing to Strapi (e.g., location / { proxy_pass http://127.0.0.1:1337; }).
• Apply security headers (HSTS, CSP, X‑Frame‑Options, X‑Content‑Type‑Options).
• Rate limiting or WAF rules to protect the admin panel and auth endpoints.
• Use OCSP stapling and modern ciphers via OpenSSL 3 on AlmaLinux 9.

---

Security and Hardening on AlmaLinux 9

• SELinux: keep enforcing; add minimal custom policy if Strapi writes outside expected directories.
• FirewallD: expose only 80/443 publicly; restrict Strapi’s internal port (1337) to localhost.
• Secrets management: store credentials in environment variables loaded by PM2; avoid committing .env to VCS.
• RBAC in Strapi: lock down public and authenticated roles; separate admin users; enable email confirmations where appropriate.
• Dependency hygiene: patch Node, Strapi, and plugins frequently; enable npm audit in CI.
• Backups: schedule PostgreSQL dumps or base backups; back up uploads directory and environment configuration.
• Fail2Ban: protect Nginx admin and auth routes from brute force.

---

Performance and Sizing

Small (MVP / pilot)

• 2 vCPU, 4–8 GB RAM, single Strapi instance under PM2
• PostgreSQL co‑located or managed service
• Nginx on same host

Medium (team content ops, public APIs)

• 4–8 vCPU, 8–16 GB RAM
• PM2 cluster mode (2–4 instances) behind Nginx
• Dedicated PostgreSQL VM (NVMe SSD, tuned shared_buffers, work_mem)
• Object storage (S3‑compatible) for media via Strapi upload provider

Large/High traffic

• Multiple Strapi nodes behind Nginx/Load Balancer
• Managed or HA PostgreSQL (replication, Patroni/Cloud)
• Redis cache for sessions/rate limiters if used by plugins
• CDN in front of Nginx for static and uploads

General tips:

• Set NODE_ENV=production, build admin once per release.
• Cache public GETs at Nginx or CDN where safe.
• Prefer S3/MinIO adapters for uploads to keep stateless app nodes.

---

Operations & Observability

• Logging: PM2 and Strapi logs to systemd/journald or file; centralize with Fluentd/Vector to ELK/Opensearch.
• Metrics: export Node/PM2 metrics to Prometheus; Nginx stub_status or exporter for proxy metrics; PostgreSQL exporter for DB health.
• Health checks: simple / or /admin HTTP 200 checks via Nginx; use PM2 health or systemd watchdog for process supervision.
• CI/CD: pin Node and package versions; build artifacts once; run DB migrations in controlled pipeline steps.

---

Typical Use Cases

• Headless CMS for React/Next.js, Vue/Nuxt, SvelteKit, mobile apps.
• Multichannel content APIs with i18n, drafts, and review workflows.
• Product catalogs and marketing sites requiring editorial roles.
• Internal data hubs where teams manage structured content via custom permissions.

---

Comparison Snapshot (self‑hosted)

Capability	Strapi	Directus	KeystoneJS	Payload
DB support	PostgreSQL/MySQL/SQLite	PostgreSQL	PostgreSQL/Mongo	PostgreSQL
Admin UI	Built‑in, refined	Built‑in, data‑first	Built‑in	Built‑in
API styles	REST + GraphQL plugin	REST + GraphQL	REST + GraphQL	REST + GraphQL
Extensibility	Plugins, policies, lifecycles	Hooks/flows	Schemas/hooks	Hooks/plugins
Files	Local, S3, adapters	Local, S3	Local, S3	Local, S3

Strapi balances a mature admin UI, strong plugin ecosystem, and straightforward extensibility with policies, controllers, and lifecycle hooks.

---

Practical Checklist

• Choose Node LTS version and lock it; build the admin in CI.
• Use PostgreSQL 14/15, tune memory and WAL for workload.
• Run Strapi under PM2 with an ecosystem config; enable startup on boot.
• Put Nginx in front; terminate TLS; restrict port 1337 to localhost.
• Enforce RBAC and secure public permissions; review plugin access.
• Externalize media to S3/MinIO for scalability; use a CDN if public.
• Back up DB and uploads; test restores; rotate logs; patch regularly.

---

A Strapi + PostgreSQL + PM2 + Nginx + SSL stack on AlmaLinux 9 delivers a durable, secure, and scalable headless CMS platform. You gain enterprise‑grade OS stability (SELinux, long lifecycle) with modern Node tooling, robust relational storage, resilient process management, and a hardened TLS front end—well‑suited for both MVPs and high‑traffic production APIs.

---

Step 1: Create an AlmaLinux 9 VPS on Shape.Host

Go to https://shape.host and log in.

Click “Create”, then select “Instance”.

Choose the server location closest to your target audience.

Select AlmaLinux 9 (64-bit) as the operating system.

Pick a plan with at least 2 CPUs, 4 GB RAM, and 20 GB SSD.

Click “Create Instance”.

Copy the IP address from the “Resources” section.

---

Step 2: Connect to the Server

ssh root@your-server-ip

---

Step 3: Update System and Install Base Packages

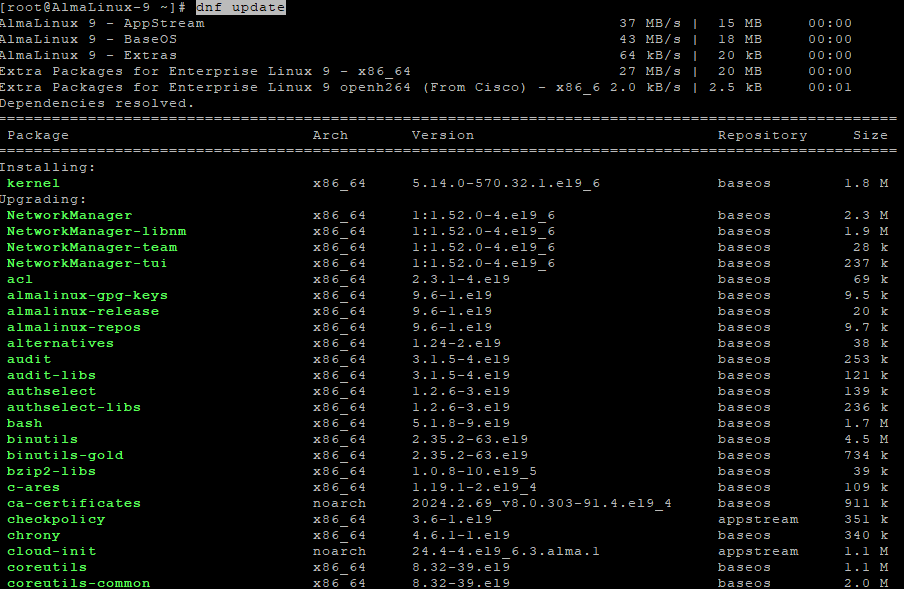

dnf update -y

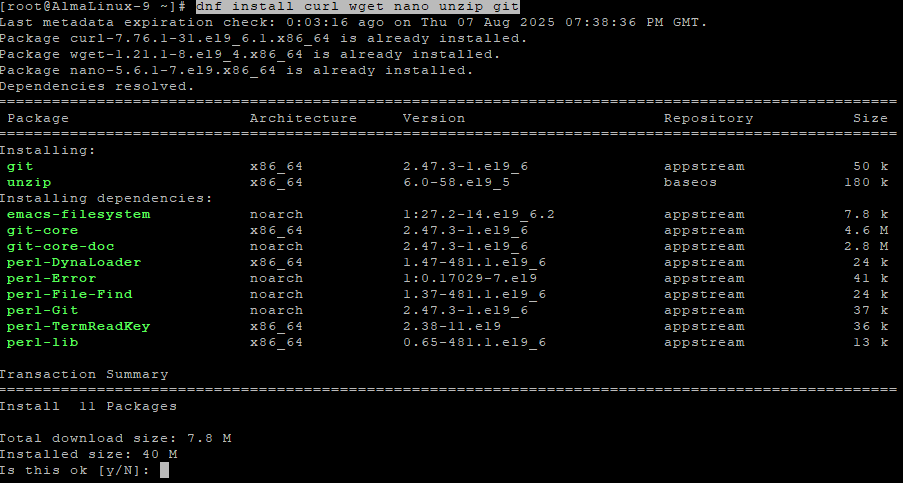

dnf install curl wget nano unzip git -y

---

Step 4: Install and Configure PostgreSQL 16

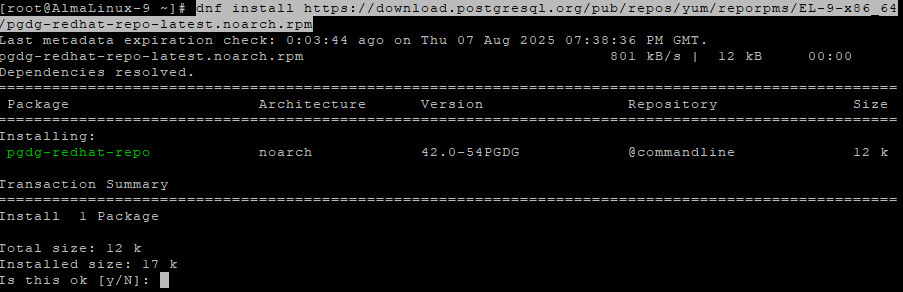

First, enable the PostgreSQL repository:

dnf install https://download.postgresql.org/pub/repos/yum/reporpms/EL-9-x86_64/pgdg-redhat-repo-latest.noarch.rpm -y

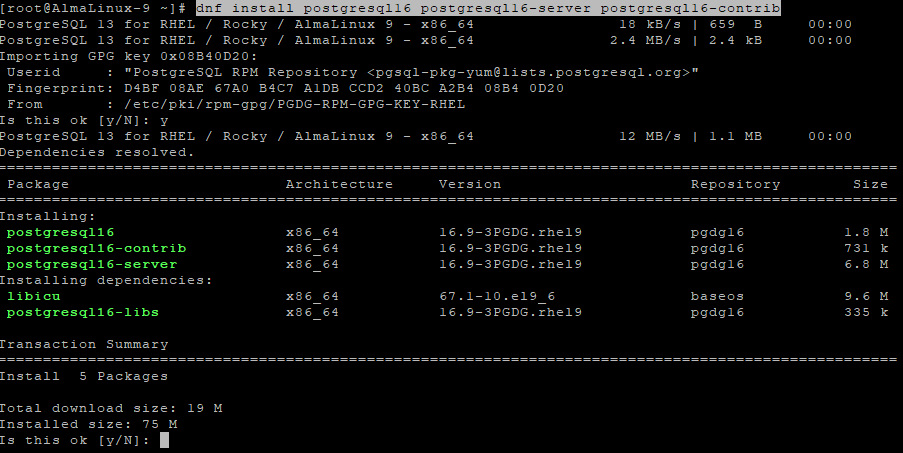

Install PostgreSQL 16:

dnf install postgresql16 postgresql16-server postgresql16-contrib -y

Initialize the database:

/usr/pgsql-16/bin/postgresql-16-setup initdb

Enable and start the service:

systemctl enable postgresql-16
systemctl start postgresql-16

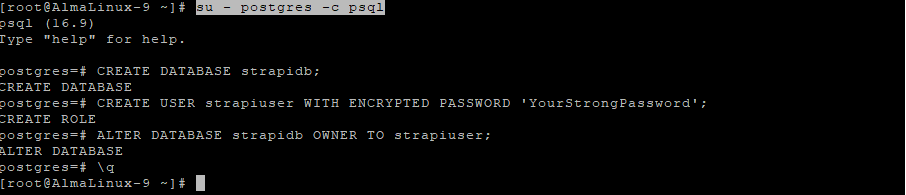

Log into PostgreSQL and create the database and user:

su - postgres -c psql

Inside the prompt:

CREATE DATABASE strapidb;
CREATE USER strapiuser WITH ENCRYPTED PASSWORD 'YourStrongPassword';
ALTER DATABASE strapidb OWNER TO strapiuser;
\q

---

Step 5: Install Node.js 20 and NPM

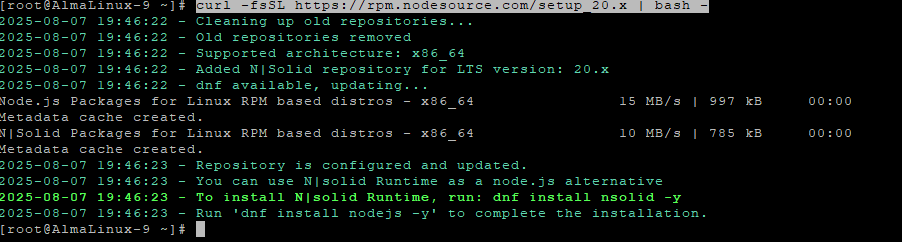

curl -fsSL https://rpm.nodesource.com/setup_20.x | bash -

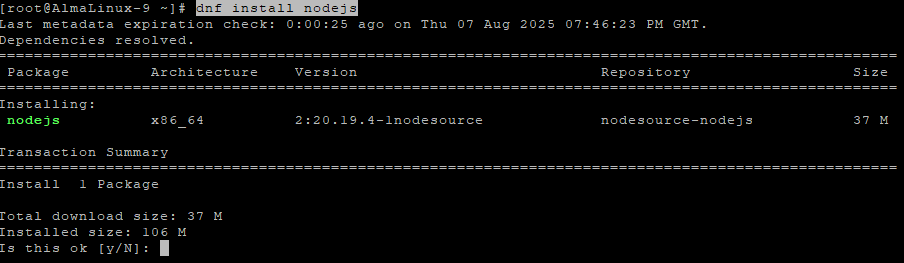

dnf install nodejs -y
node -v
npm -v

---

Step 6: Create and Build Strapi Project

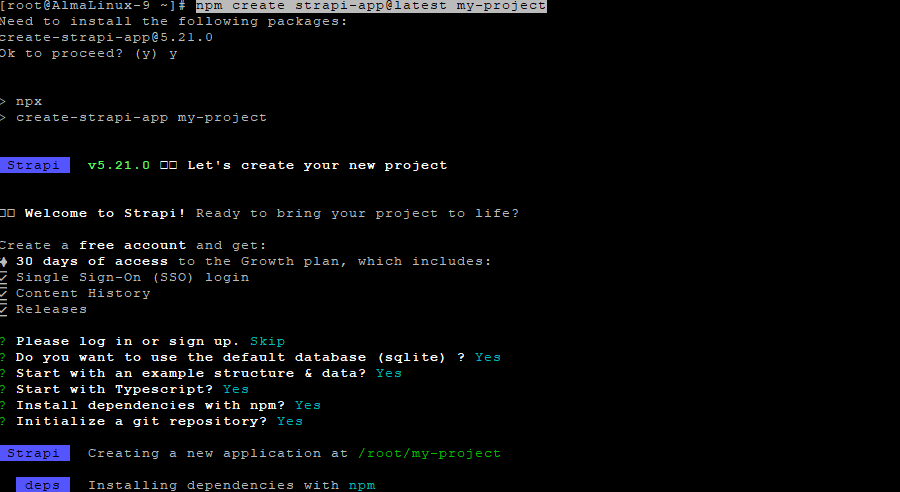

Navigate to the root directory and create a new Strapi app:

cd /root
npm create strapi-app@latest my-project

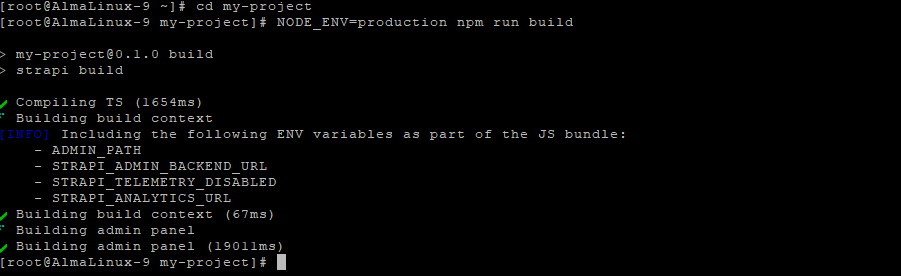

Go to the project folder and build for production:

cd my-project
NODE_ENV=production npm run build

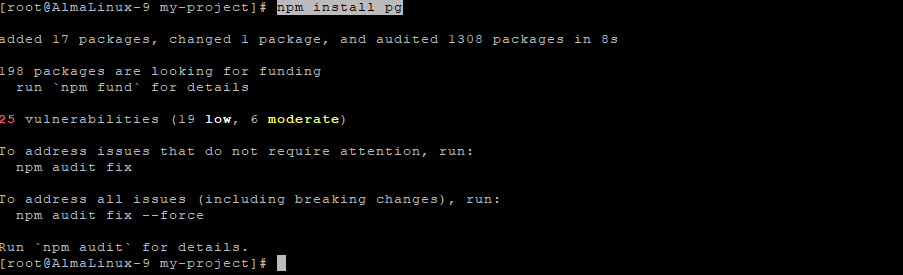

Install PostgreSQL support:

npm install pg

---

Step 7: Install and Configure PM2

Install PM2 globally:

npm install -g pm2

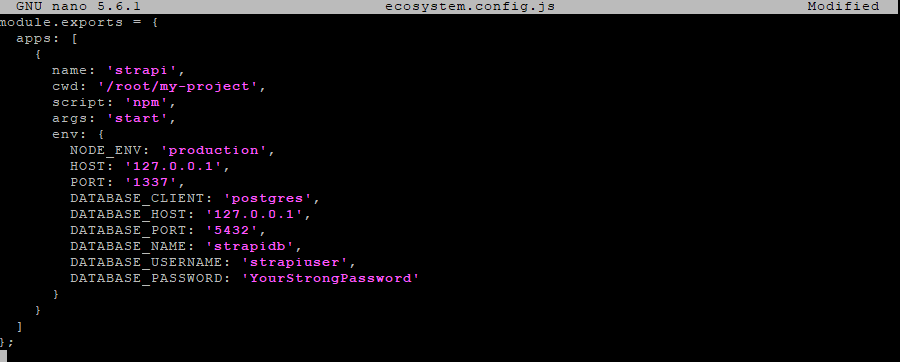

Create the PM2 configuration:

nano ecosystem.config.js

Paste:

module.exports = {
  apps: [
    {
      name: 'strapi',
      cwd: '/root/my-project',
      script: 'npm',
      args: 'start',
      env: {
        NODE_ENV: 'production',
        HOST: '127.0.0.1',
        PORT: '1337',
        DATABASE_CLIENT: 'postgres',
        DATABASE_HOST: '127.0.0.1',
        DATABASE_PORT: '5432',
        DATABASE_NAME: 'strapidb',
        DATABASE_USERNAME: 'strapiuser',
        DATABASE_PASSWORD: 'YourStrongPassword'
      }
    }
  ]
};

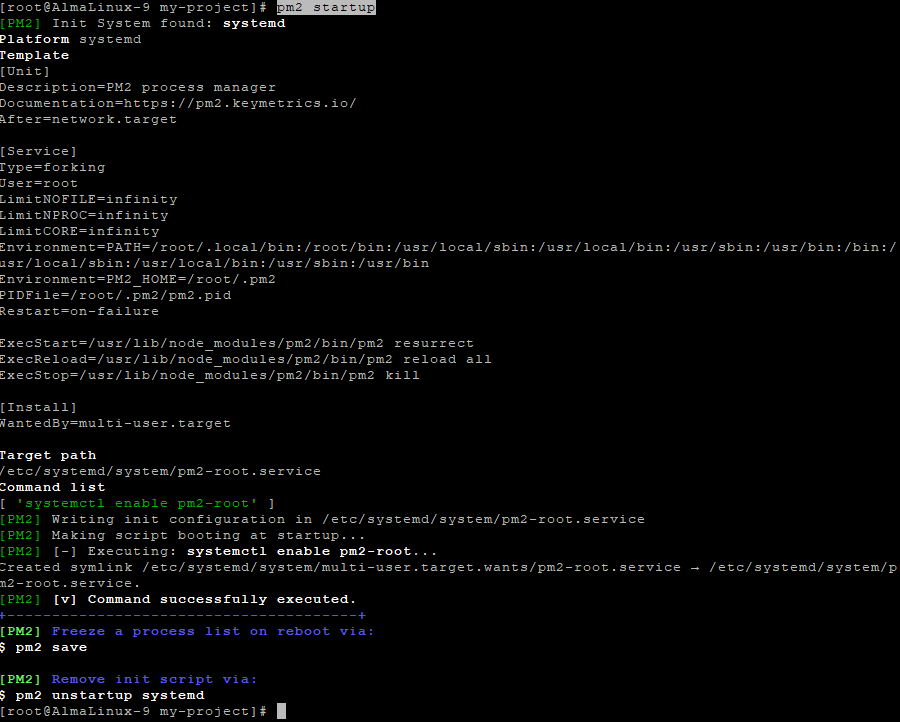

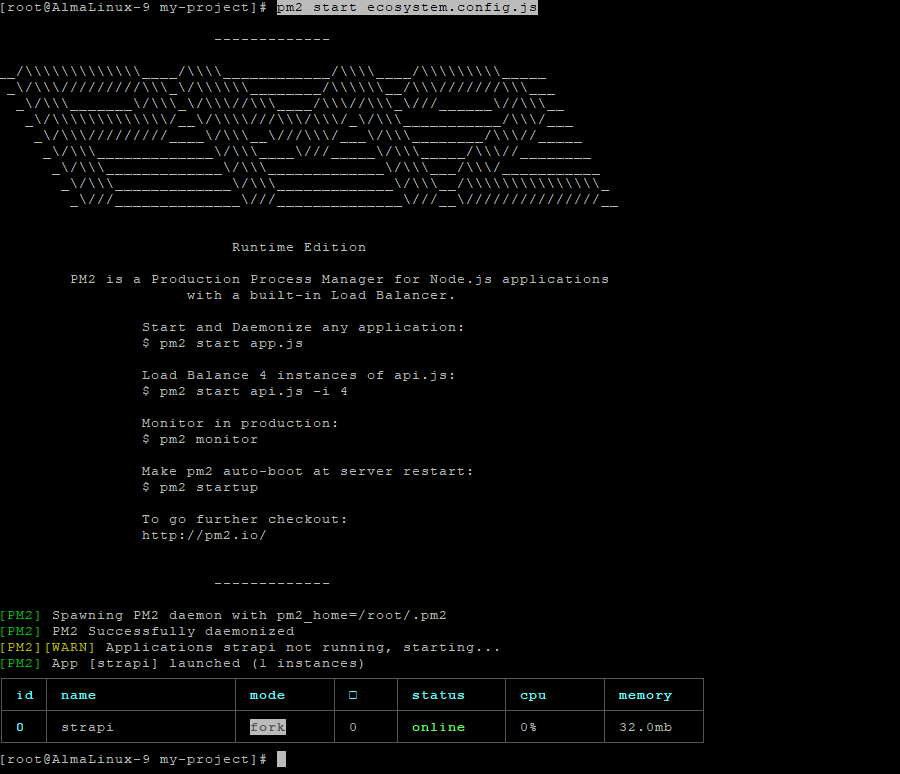

Start and enable PM2:

pm2 start ecosystem.config.js
pm2 startup
pm2 save

---

Step 8: Install and Configure Nginx

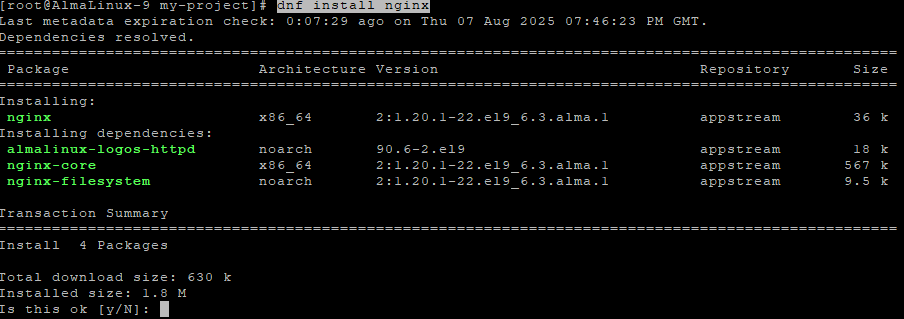

dnf install nginx -y

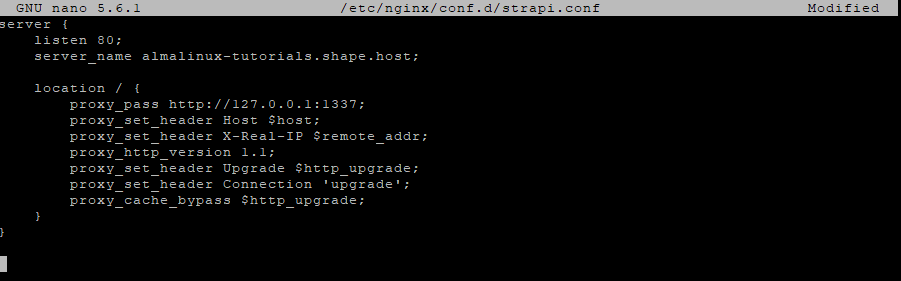

Create the reverse proxy configuration:

nano /etc/nginx/conf.d/strapi.conf

Paste:

server {
    listen 80;
    server_name your_domain.com;

    location / {
        proxy_pass http://127.0.0.1:1337;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_cache_bypass $http_upgrade;
    }
}

Enable and restart Nginx:

systemctl enable nginx
systemctl restart nginx

---

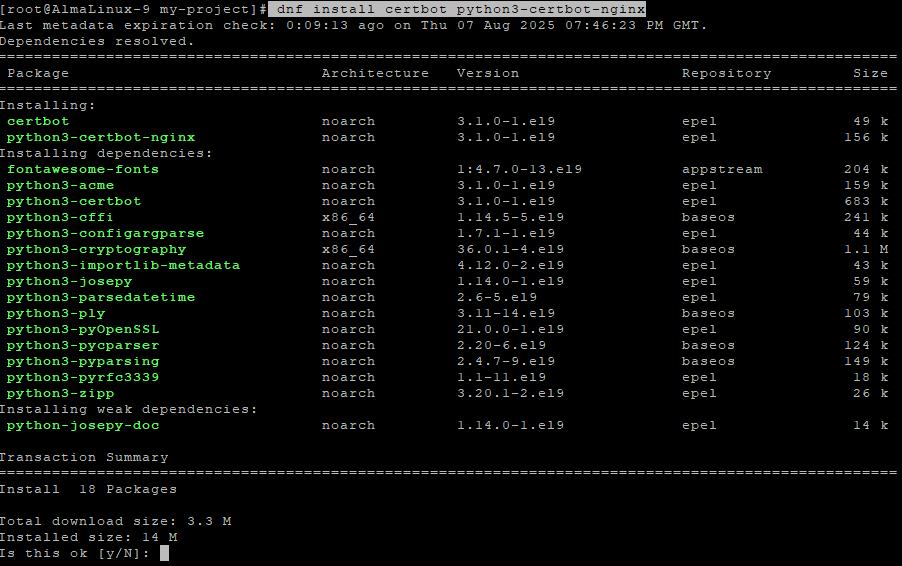

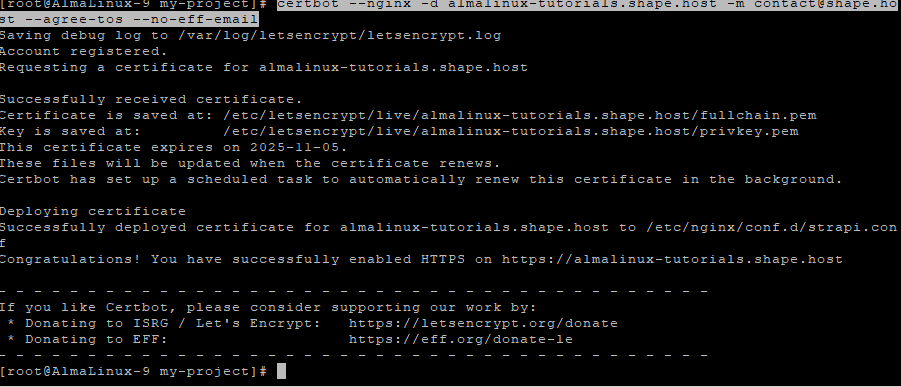

Step 9: Install and Configure SSL with Let’s Encrypt

dnf install certbot python3-certbot-nginx -y
certbot --nginx -d almalinux-tutorials.shape.host -m contact@shape.host --agree-tos --no-eff-email

---

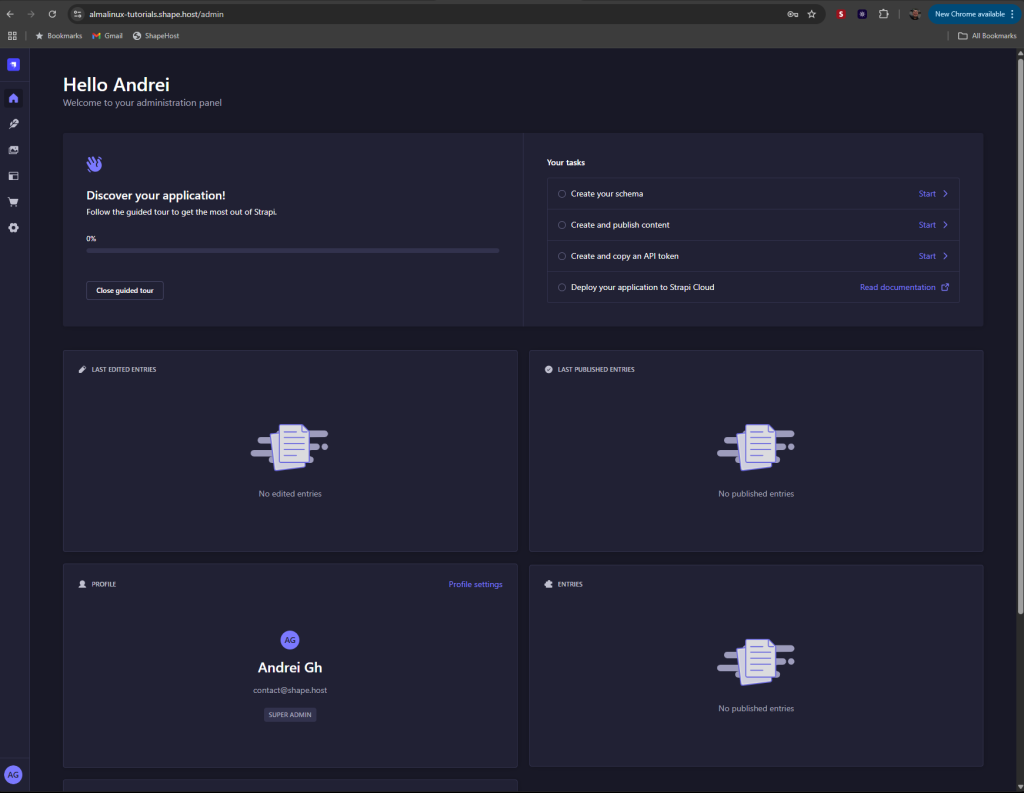

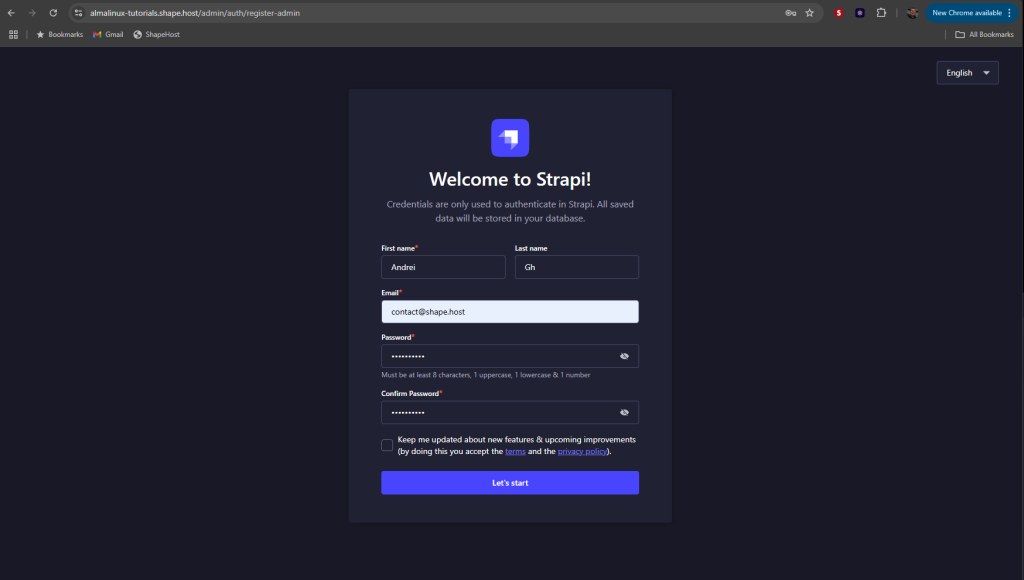

Strapi CMS is now installed and running on AlmaLinux 9 with PostgreSQL, PM2, Nginx, and SSL.

You can access it at:

https://almalinux-tutorials.shape.host
