Install Strapi CMS on Ubuntu 24.04 with PostgreSQL, PM2 & Nginx

Strapi CMS on Ubuntu 24.04 (with PostgreSQL, PM2 & Nginx)

Strapi is a powerful, open-source headless CMS written in Node.js, designed to create, manage, and expose content via RESTful or GraphQL APIs. It’s widely used by developers building JAMstack applications, mobile apps, and single-page frontends that require a robust, customizable backend.

When deployed on Ubuntu 24.04 with PostgreSQL, PM2, and Nginx, Strapi becomes a production-ready, performant, and scalable content platform ideal for enterprise and modern web projects.

Key Technologies in This Stack

Component	Role
Strapi	Node.js-based headless CMS
PostgreSQL	Primary database for content and settings storage
PM2	Process manager to keep the Strapi app running
Nginx	Reverse proxy for SSL, HTTP/2, and performance
Ubuntu 24.04	OS with long-term support, security, and stability

Why PostgreSQL for Strapi?

Strapi supports SQLite, MySQL, MariaDB, and PostgreSQL. Among these, PostgreSQL is the recommended production database, offering:

Better performance under high loads
Advanced JSONB support for flexible content
Full-text search and indexing
ACID-compliant transactions
Strong data integrity and role management

PostgreSQL integrates smoothly with Ubuntu 24.04 and is available from official repositories or via upstream packages for newer versions.

Role of PM2 in Strapi Deployments

PM2 is a production-grade process manager for Node.js applications. It provides:

Zero-downtime reloads
Startup scripts with pm2 startup
Process monitoring and auto-restart on crash
Cluster mode for performance scaling
Log management with built-in log rotation

Using PM2 ensures that Strapi runs as a background service, restarts automatically on reboots, and can be scaled or monitored easily.

Why Use Nginx with Strapi?

Although Strapi can serve HTTP traffic directly, Nginx adds a layer of performance, security, and production hardening:

Acts as a reverse proxy to forward requests to Strapi (usually running on port 1337)
Handles SSL/TLS termination (e.g., using Let’s Encrypt certificates)
Supports HTTP/2 and gzip compression
Can serve static assets, redirects, rate-limiting, and caching rules
Enables firewalling and filtering before reaching Strapi

This combination makes Strapi + Nginx an excellent solution for scalable web APIs, especially in enterprise and cloud deployments.

Security Considerations

Deploying Strapi securely in production requires:

HTTPS only via Nginx
Environment variables for database credentials and API secrets
Firewall rules (UFW or nftables) to restrict port access
Fail2Ban for brute-force protection on the admin panel
Keeping Strapi and dependencies updated regularly
Using custom user roles and permissions within the Strapi admin interface

Ubuntu 24.04 provides modern crypto libraries (OpenSSL 3.x) and AppArmor for optional process-level confinement.

Strapi in Production on Ubuntu 24.04 – Best Practices

Use PostgreSQL instead of SQLite for scalable, multi-user environments
Keep Strapi behind Nginx for better control and resilience
Use PM2 with ecosystem files to manage multiple environments (dev/staging/prod)
Set NODE_ENV=production for optimized builds
Regularly back up PostgreSQL and .env config files
Serve Strapi’s public and upload folders with appropriate Nginx location blocks

Use Cases for Strapi

JAMstack apps with React, Vue, Svelte, Astro, or Next.js
Mobile app backends with REST or GraphQL APIs
Multi-language content delivery using internationalization (i18n) plugins
Corporate websites with role-based editorial workflows
E-commerce CMS layer integrated with Shopify, Snipcart, or custom carts
Internal portals and dashboards for structured content management

Strapi’s modular plugin system and extensible API make it suitable for both startups and large-scale digital platforms.

Strapi vs. Other Headless CMSs

Feature	Strapi	Directus	KeystoneJS	Sanity	Contentful (SaaS)
Self-hosted	✅ Yes	✅ Yes	✅ Yes	✅ Yes	❌ No
Database	PostgreSQL/MySQL	PostgreSQL	MongoDB/Postgres	Hosted	Managed
Admin UI	Built-in	Built-in	Built-in	Built-in	Built-in
Custom Fields	✅ Full control	✅ Flexible	✅ Schema-driven	✅ Groq-based	✅
GraphQL Support	✅ Yes	✅ Yes	✅ Yes	✅ Yes	✅ Yes
Open Source	MIT	GPL	MIT	Source-available	❌ Proprietary

Strapi stands out by offering a balance of flexibility, visual admin panel, REST/GraphQL APIs, and full database control, making it especially attractive for developers who want to own their data and deployment.

Deploying Strapi CMS on Ubuntu 24.04 with PostgreSQL, PM2, and Nginx provides a:

Secure and scalable headless CMS platform
Developer-friendly environment with full control over APIs, schema, and content
Production-ready deployment stack that ensures uptime, monitoring, and performance
Ideal backend for modern web and mobile applications

This stack offers a mature, modular, and flexible content solution that works well for both MVPs and large-scale content-driven projects.

Step 1: Create a VPS on Shape.Host

Go to https://shape.host and log in.

Click “Create”, then choose “Instance”.

Choose a server location closest to your users.

Shape.host instance form with the data center location selector highlighted.

Select Ubuntu 24.04 (64-bit) as the operating system.

Choose a plan with at least 2 CPUs, 4 GB RAM, and 20 GB SSD.

Shape.host instance form with the operating system image selector highlighted.

Click “Create Instance”.

Shape.host instance form with the Create Instance button highlighted.

Copy the IP address from the “Resources” tab once the instance is ready.

Shape.host Resources dashboard with the server IP address highlighted.

Step 2: Connect to Your Server via SSH

ssh root@your-server-ip

Step 3: Install System Dependencies

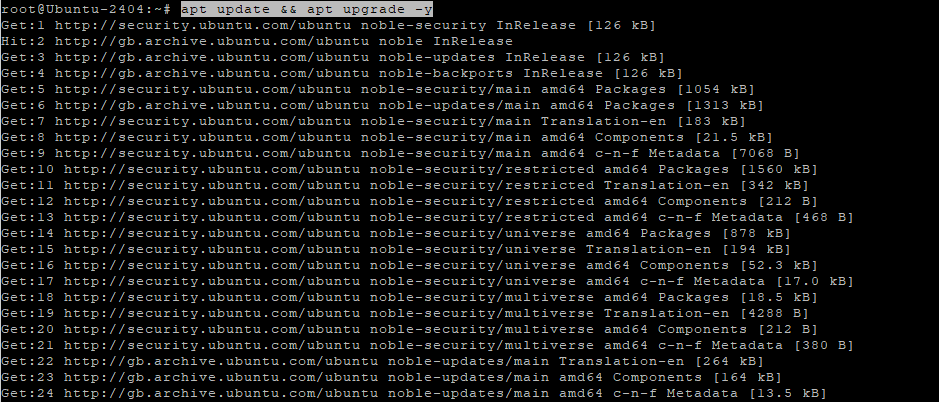

apt update && apt upgrade -y
apt install curl wget nano gnupg2 software-properties-common ca-certificates unzip

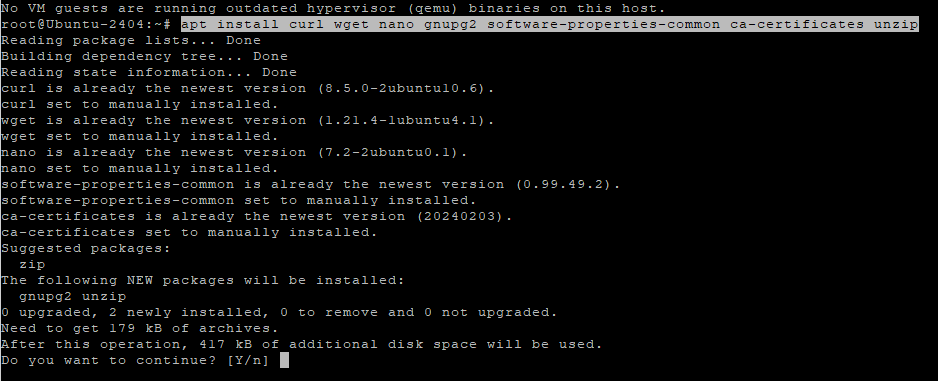

Terminal showing APT package management commands and output.

Step 4: Install and Configure PostgreSQL

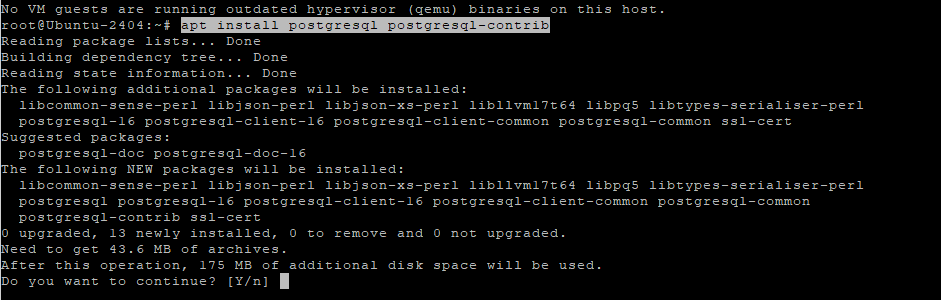

apt install postgresql postgresql-contrib

Create the database and user:

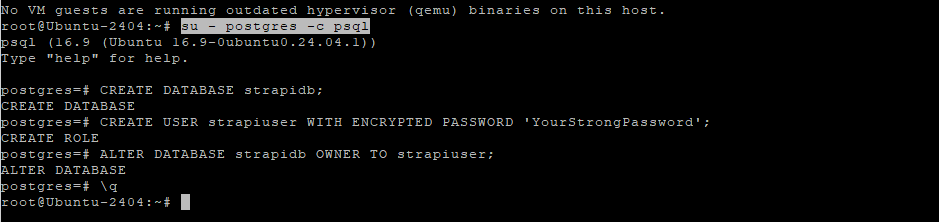

su - postgres -c psql

Inside the PostgreSQL prompt:

CREATE DATABASE strapidb;
CREATE USER strapiuser WITH ENCRYPTED PASSWORD 'YourStrongPassword';
ALTER DATABASE strapidb OWNER TO strapiuser;
\q

🔐 Replace 'YourStrongPassword' with a secure password.

Terminal showing SQL database and user configuration commands.

Step 5: Install Node.js 20 and NPM

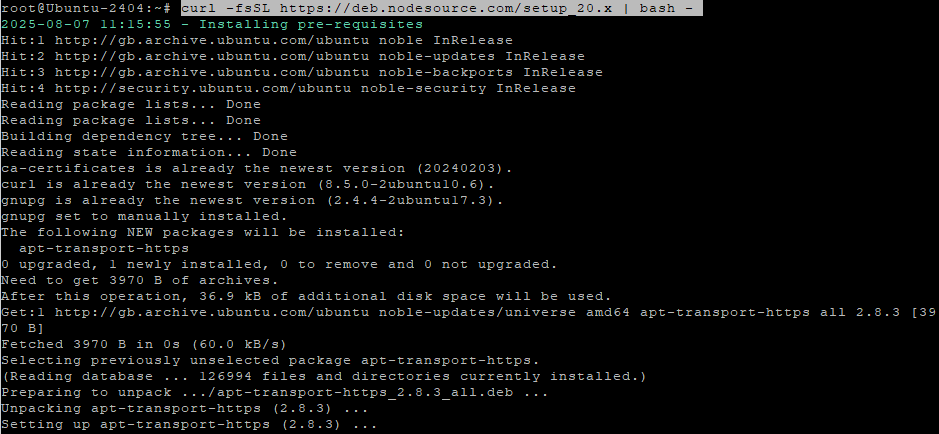

curl -fsSL https://deb.nodesource.com/setup_20.x | bash -
apt install nodejs
node -v
npm -v

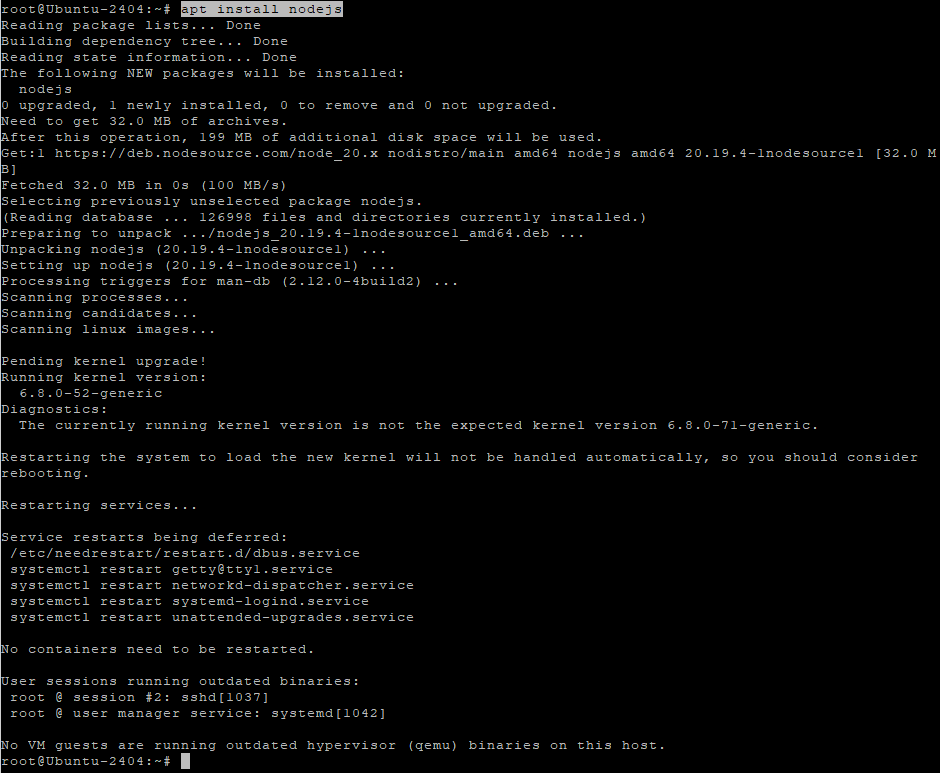

Terminal showing systemd service management commands or output.

Terminal displaying Node.js and npm version numbers.

(Optional: Update NPM)

npm install -g npm@11.5.2

Terminal showing npm package installation messages.

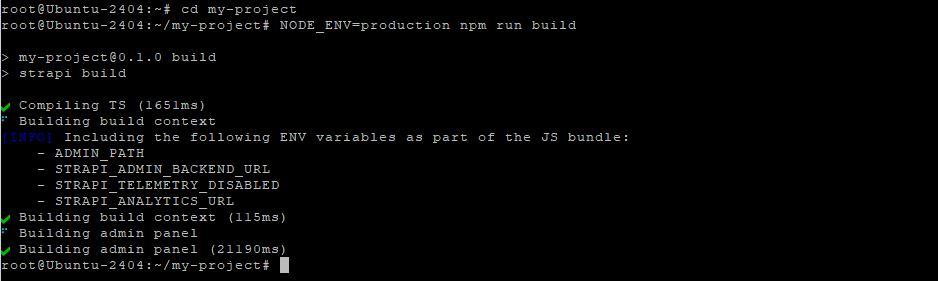

Step 6: Create Your Strapi Project

npm create strapi-app@latest my-project
cd my-project
NODE_ENV=production npm run build

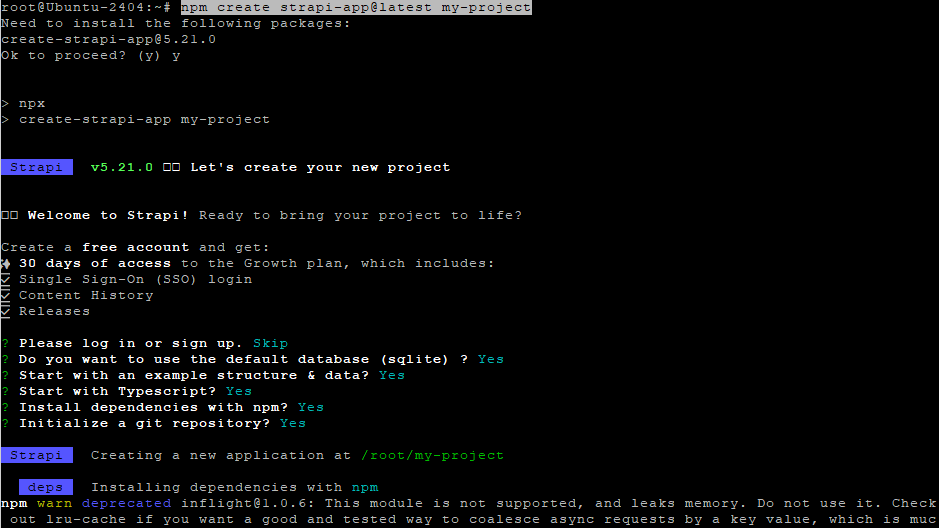

Terminal showing file and directory setup commands.

Step 7: Run Strapi with PM2 (Process Manager)

Install PM2:

npm install -g pm2

Terminal showing PM2 application process management output.

Create the ecosystem config file:

nano ecosystem.config.js

Paste this:

module.exports = {
  apps: [
    {
      name: 'strapi',
      cwd: '/root/my-project',
      script: 'npm',
      args: 'start',
      env: {
        NODE_ENV: 'production',
        DATABASE_HOST: '127.0.0.1',
        DATABASE_PORT: '5432',
        DATABASE_NAME: 'strapidb',
        DATABASE_USERNAME: 'strapiuser',
        DATABASE_PASSWORD: 'YourStrongPassword'
      }
    }
  ]
};

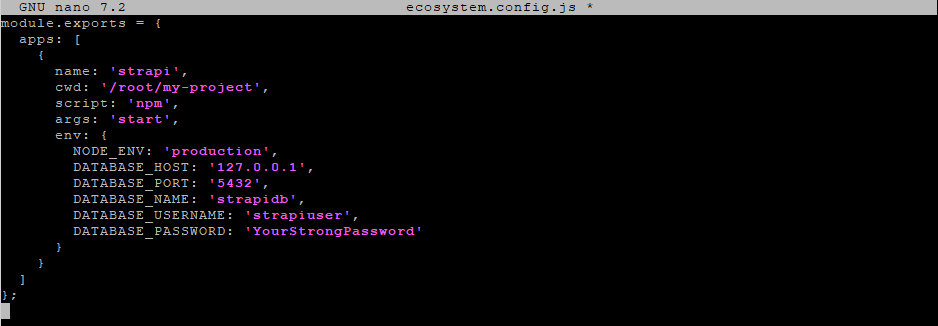

Terminal showing the GNU nano editor and configuration text.

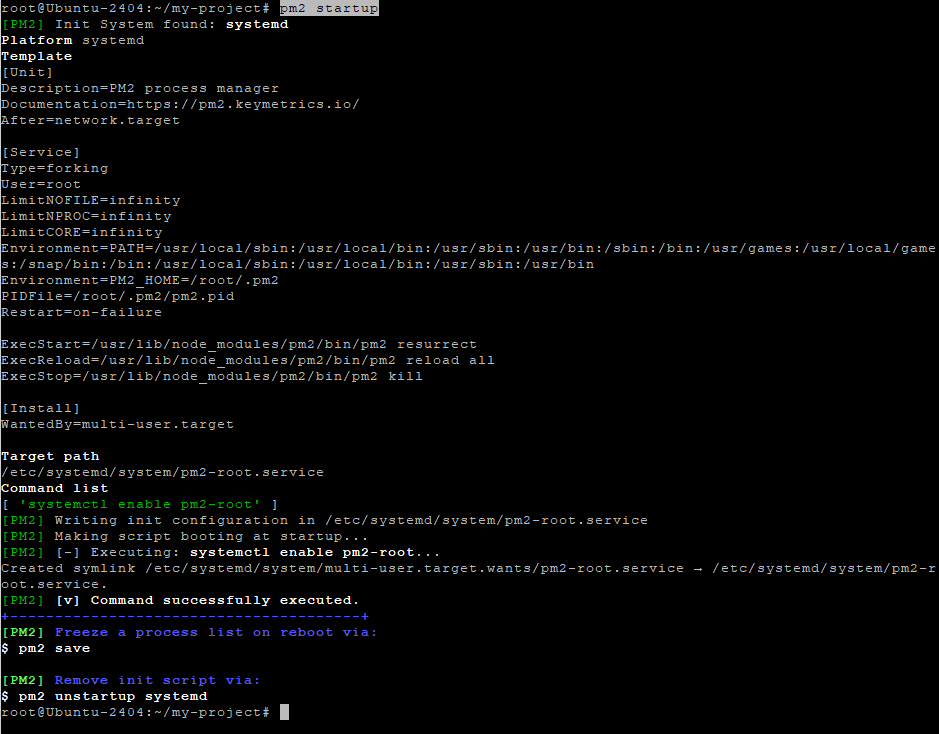

Start and enable PM2 on boot:

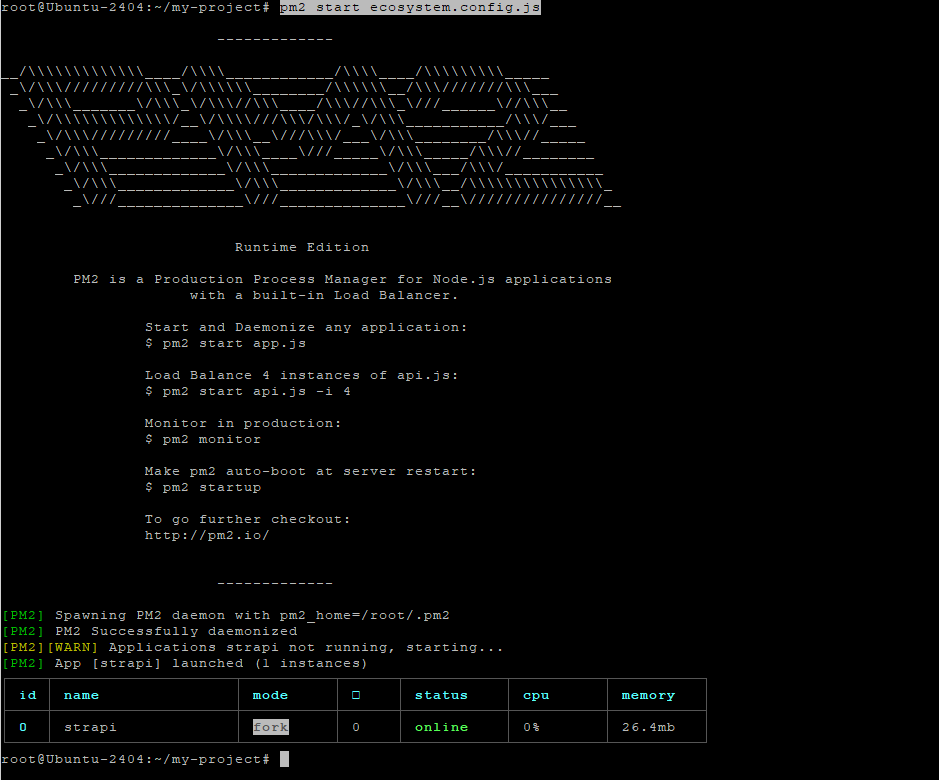

pm2 start ecosystem.config.js
pm2 startup
pm2 save

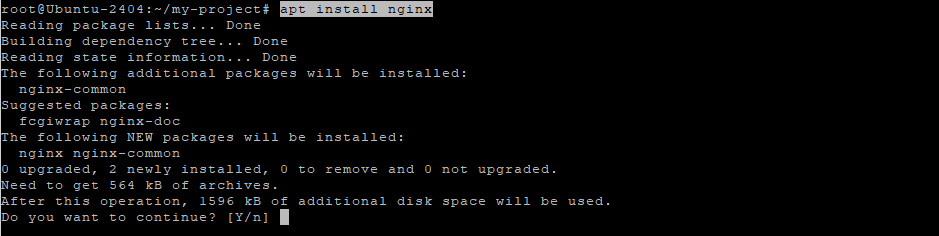

Step 8: Install and Configure Nginx as Reverse Proxy

apt install nginx

Create a new config file:

nano /etc/nginx/sites-available/strapi

Paste this config:

server {
    listen 80;
    server_name your_domain.com;

    location / {
        proxy_pass http://localhost:1337;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection 'upgrade';
        proxy_cache_bypass $http_upgrade;
    }
}

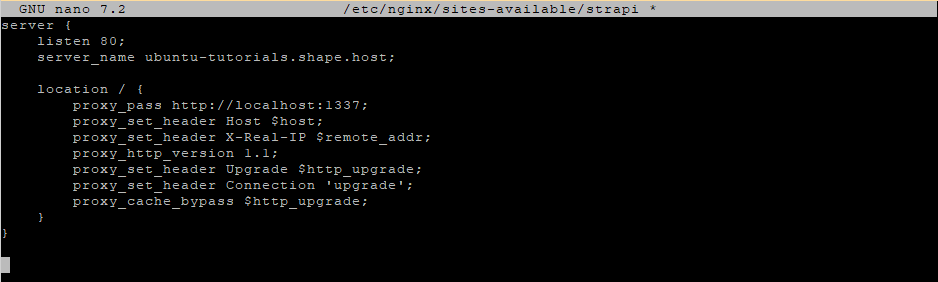

Terminal showing web server configuration text.

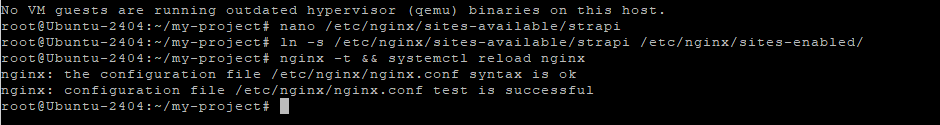

Enable the config and restart Nginx:

ln -s /etc/nginx/sites-available/strapi /etc/nginx/sites-enabled/
nginx -t && systemctl reload nginx

Step 9: Secure with SSL (Let’s Encrypt)

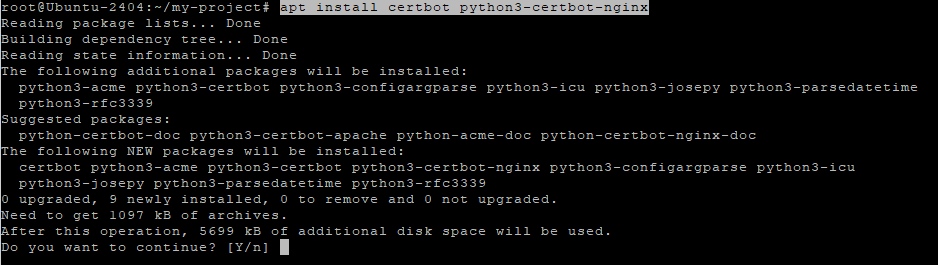

Install Certbot:

apt install certbot python3-certbot-nginx

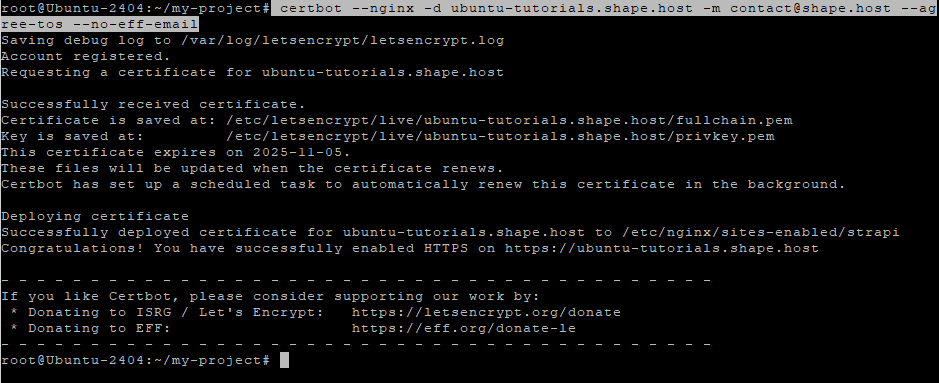

Get a free SSL certificate:

certbot --nginx -d ubuntu-tutorials.shape.host -m contact@shape.host --agree-tos --no-eff-email

Terminal showing Certbot certificate commands and messages.

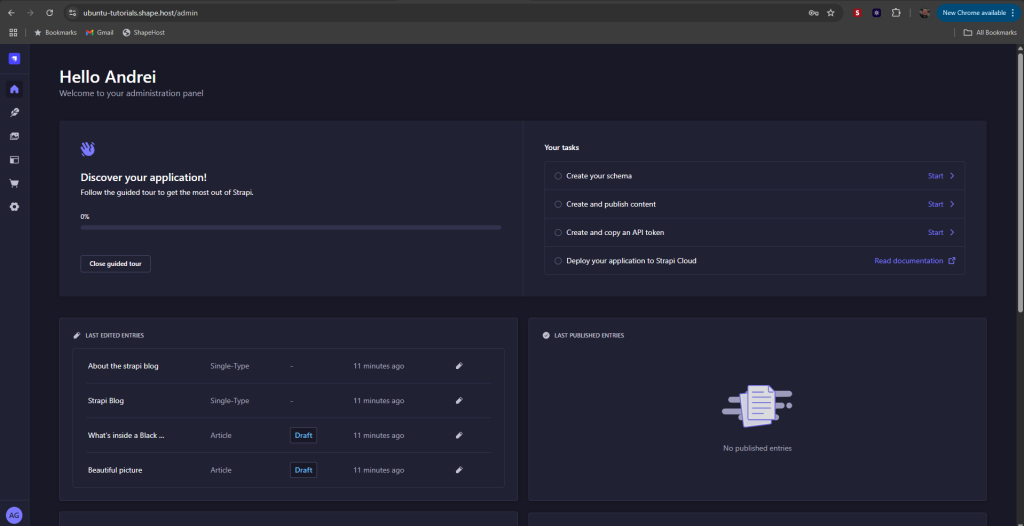

Step 10: Access Your Strapi CMS

Now you can access Strapi at:

https://ubuntu-tutorials.shape.host

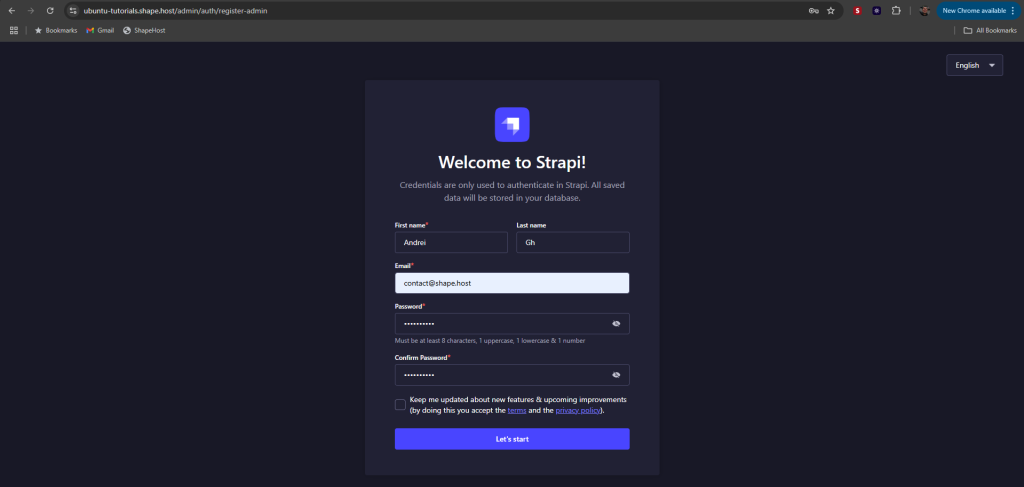

Strapi initial administrator registration form.

You now have a secure Strapi CMS running on Ubuntu 24.04, managed with PM2, behind Nginx, and using a PostgreSQL database.
